Rain Bird B33135 prsdial - prs-dial pressure regulator

Product Description

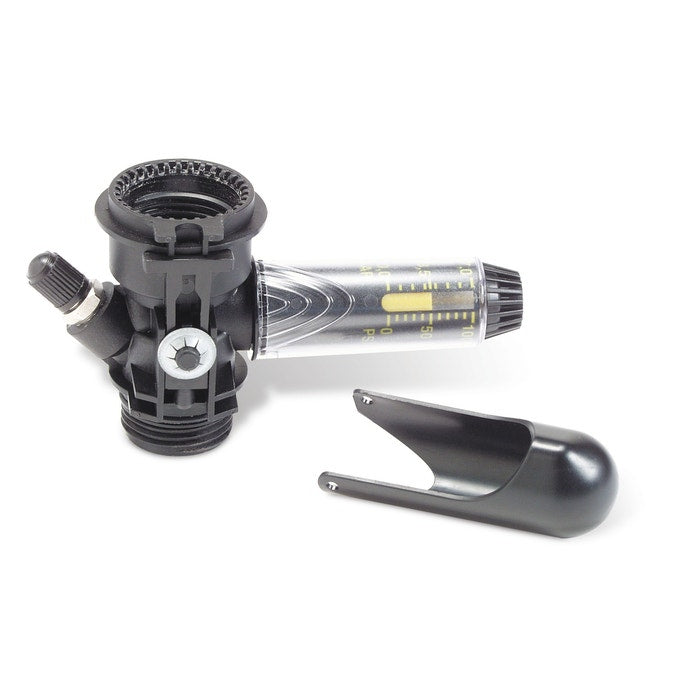

The Rain Bird PRSDIAL is a dial-type pressure regulator for use with all Rain Bird PGA, PEB, PESB-R, GB-R, EFB-CP-R, BPE, and BPES series valves. The visible scale makes adjustment quick and easy, regulating outlet pressure at the valve regardless of incoming pressure fluctuations.

• Valve pressure regulator
• Improved spike reduction capabilities reduce water hammer
• Ergonomic design with snap-tight cover to prevent vandalism

Product Highlights

The pressure regulator features a waterproof dial cartridge that eliminates fogging and binding. It has easy field installation and a Schrader valve that connects a pressure hose gauge.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: B33135
• Country of Origin: Mexico

Technical Specifications

• Model: PRSDIAL
• Operating Temperature: Up to 150 F (66 C)
• Operating Pressure: Up to 100 psi (6.9 bar)
• MPN: B33135
• Brand: RAIN BIRD
• Outlet Connection Type: NPT
• Number of Ports: 2
• Valve Type: Globe Valve
• Outlet Connection Size: 2 Inches
• Material Type: Metal
• Country of Origin: Mexico
• Type: Pressure Regulator
