Rain Bird A46501 PA8SP45 PRS Riser Regulator, 45 psi

Product Description

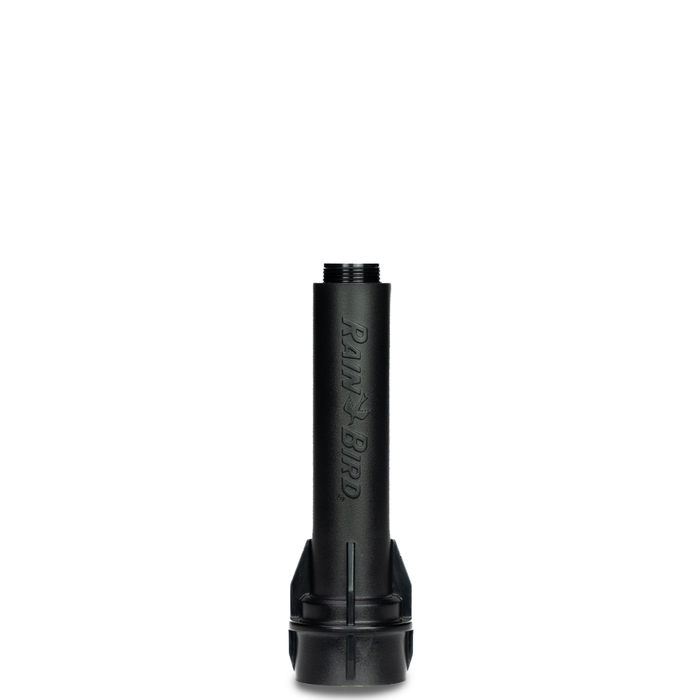

The RAIN BIRD A46501 PA8SP45 is a 45 psi pressure regulating shrub adapter. It attaches a nozzle to a riser to irrigate ground cover and shrub areas requiring pressure regulation. Its rugged thermoplastic construction resists UV rays and adapts nozzles for use with 1/2 in. (15/21) MPT threaded risers. Fits all Rain Bird nozzles.

• No parts to be installed at the site, saving time and money.
• Maintains constant outlet pressure at 45psi (3,1 Bars).
• Ensures maximum spray nozzle performance.

Product Highlights

This shrub adapter is designed to connect Rain Bird spray nozzles to 1/2-inch threaded risers, making it ideal for ground cover and shrub areas.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: A46501

Technical Specifications

• Model: PA8SP45
• Features: PRS Pressure Regulating
• Inlet Pressure: 15 to 70 psi
• Outlet Pressure: 45 psi
• Flow: 0.2 to 4.0 GPM
• Inlet Threads: 1/2" (15/21) female
• Height: 5 1/4"
• Brand: Rain Bird
• MFG Number: A46501
• UPC: 077985075989
• Connection Size: 1/2 in.
• Series/Model: PA
