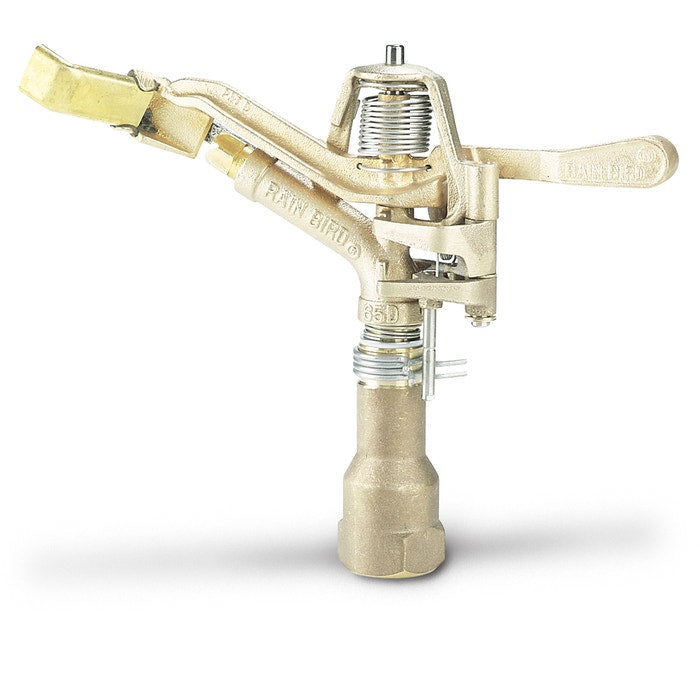

Rain Bird A4200316 65PJADJ-TNT 1 inches Inlet Brass Impact Sprinkler

Product Description

The RAIN BIRD A4200316 65PJADJ-TNT is a 1" riser-mounted impact head used for slope or large, non-turf-area applications. It features a proven impact drive and a long-wearing TNT bearing. The straight-through flow design ensures superior performance in dirty water. Includes SBN-4 #16 nozzle.

• Proven impact drive
• Straight-through flow for superior performance in dirty water
• Full-circle or adjustable arc 20° to 340°

Product Highlights

Ideal for use in applications with dirty water, this sprinkler provides consistent and reliable performance.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: A4200316

Technical Specifications

• Model: 65PJADJ-TNT
• Inlet: 1" (26/34) female NPT or BSP threaded inlet
• Features: ADJ Distance Control Diffuser Pin, PJ Precision Jet Tube
• Material: Brass
• Inlet Size: 1 in male
• Coverage Arc: Full/Part Circle
• Precipitation Rate: 0.76 to 0.94 inches per hour (19 to 23 mm/h)
• Radius: 57 to 65 feet (17,4 to 19,8 m)
• Pressure: 50 to 80 psi (3,5 to 5,5 Bars)
• Flow: 12.9 to 16.5 GPM (2,93 to 3,75 m3/h; 0,81 to 1,04 l/s)
• Trajectory: Nozzle outlet trajectory: 27
