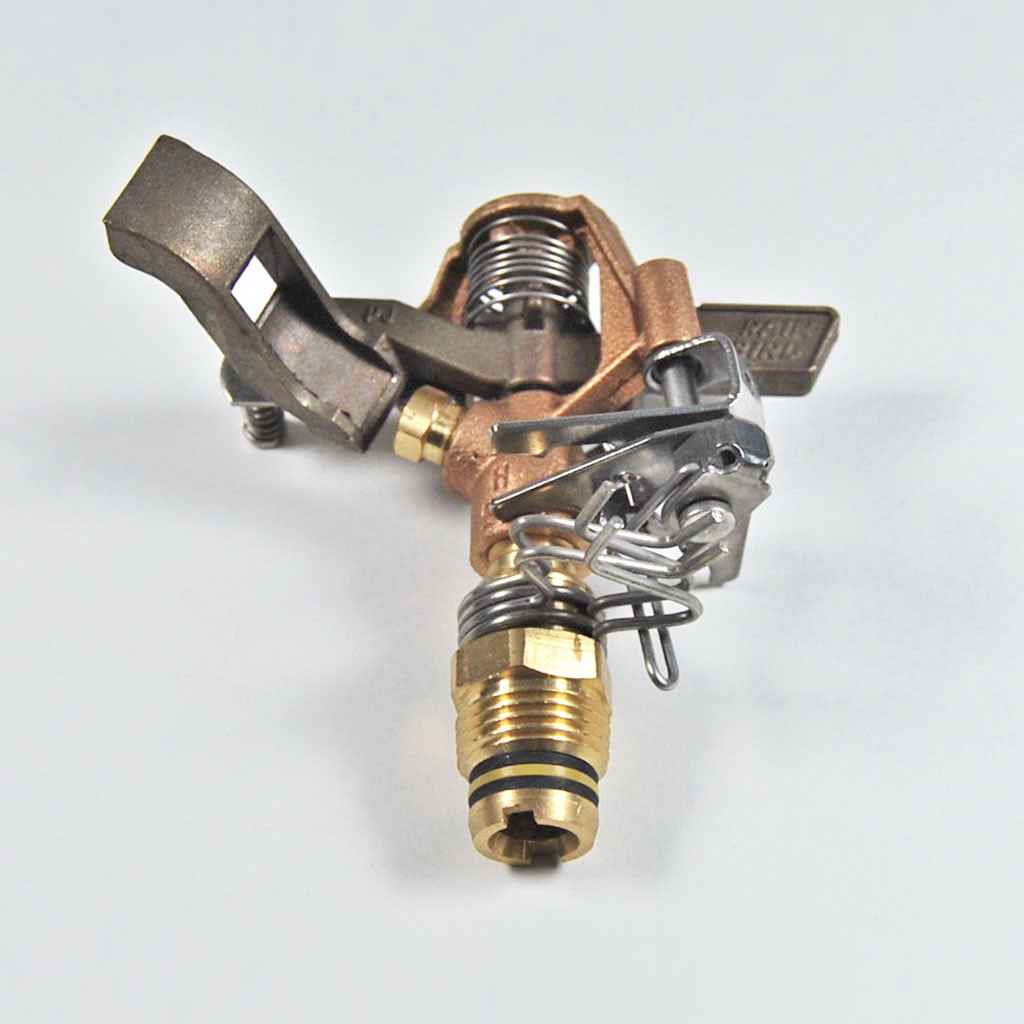

Rain Bird A3290110 Brass Impact Sprinkler 0.5 Inch Mipt

Product Description

The RAIN BIRD A3290110 is an adjustable brass impact sprinkler with a half-inch male iron pipe thread (MIPT) inlet connection. Impact sprinklers use a spring-loaded deflector arm that rotates the head as water strikes it, producing a reliable, even distribution pattern across turf and landscape areas. The all-brass construction resists corrosion and stands up to continuous outdoor use. The adjustable arc lets installers set the coverage pattern to match the irrigation zone without additional nozzle changes. This type of sprinkler is commonly specified for residential and light commercial landscape irrigation systems.

The A3290110 is suited for use in ground-level or pop-up riser configurations in residential lawn and garden irrigation systems, as well as light commercial turf applications. The 0.5 inch MIPT connection threads directly onto standard riser pipe or swing-joint assemblies. Its adjustable arc makes it appropriate for full-circle or partial-arc zones, including corner and edge placements where fixed-arc heads would overspray paved or planted areas.

Key Features

• Adjustable arc coverage allows flexible zone configuration without nozzle swaps
• All-brass body provides corrosion resistance and long service life in outdoor irrigation use
• 0.5 inch MIPT inlet threads onto standard riser and swing-joint fittings
• Impact-drive mechanism delivers consistent rotation and distribution across the coverage radius
• Designed for both full-circle and partial-arc irrigation patterns

Compatibility

Designed as an OEM-style replacement or direct-install brass impact sprinkler for residential and light commercial landscape irrigation systems using standard 0.5 inch MIPT threaded riser connections.

Installation Notes

Installation is typically performed by a licensed irrigation contractor or qualified plumber familiar with local irrigation codes. Shut off the irrigation system water supply and depressurize the line before threading the sprinkler onto the riser. Use thread seal tape on the MIPT connection and tighten hand-tight plus a quarter turn to avoid cracking the fitting. Adjust the arc collar before pressurizing the system and verify coverage pattern and radius after initial startup.

Technical Specifications

• Inlet Connection: 0.5 inch MIPT
• Body Material: Brass
• Arc: Adjustable
• UPC: 077985500054

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: A3290110
