Radio Design Labs DS-XLR2 Xlr D-plate Connector

Product Description

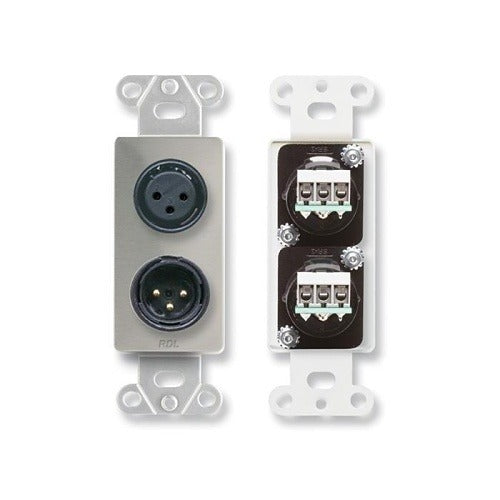

The RADIO DESIGN LABS DS-XLR2 is a dual XLR connector panel insert designed for use in D-series plate and wall-plate systems. It features one 3-pin XLR female receptacle and one 3-pin XLR male connector mounted on a single D-plate format, allowing balanced audio signal pass-through at a fixed panel location. AV integrators and low-voltage systems technicians install this component when building structured cabling panels, equipment racks, or in-wall audio termination points that require rugged, roadworthy XLR connections in a permanent plate format.

This connector plate is suited for both residential and commercial AV installations where balanced line-level or microphone-level audio signals must be routed through walls, floors, or rack panels. It fits into standard D-series keystone-style plates and enclosures, making it a common choice for stage, studio, conference room, and installed-sound applications where XLR connections are required at fixed termination points. Each unit is sold individually.

Key Features

• 3-pin XLR female and 3-pin XLR male connectors on a single D-plate insert
• Supports balanced audio signal routing through permanent panel installations
• D-series plate format for compatibility with standard modular wall-plate systems
• Compact single-plate footprint reduces rack or wall-box space requirements
• Rugged XLR construction appropriate for commercial and installed AV environments

Compatibility

Designed as an OEM-style insert for D-series modular wall plates and panel frames that accept standard D-plate format components.

Installation Notes

Installation is typically performed by a licensed low-voltage technician or AV systems integrator. Before terminating signal cables, ensure all connected equipment is powered down to prevent signal transients or equipment damage. Route balanced audio cables according to local electrical code separation requirements for low-voltage wiring. Secure the plate insert fully into the D-series frame before finalizing cable connections.
