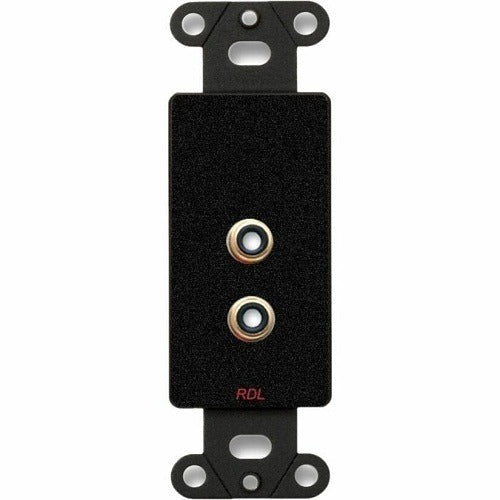

Radio Design Labs DB-PHN2 Dual Phono Jack D-plate

Product Description

The RADIO DESIGN LABS DB-PHN2 is a dual phono jack assembly mounted on a D-sub form-factor plate in a black finish. It provides two RCA-style phono jacks in a compact, panel-mount configuration suitable for AV signal processing and routing applications. The D-plate format allows the assembly to drop into standard D-sub cutouts on rack panels, wall plates, and enclosures. AV integrators and low-voltage technicians install this type of accessory to create clean, permanent phono jack termination points in structured media systems, broadcast racks, or custom AV furniture builds.

This assembly is suited for residential and light commercial AV installations where phono-level analog audio signals need a fixed, labeled connection point. Typical applications include audio distribution systems, patch bays, and equipment rack builds where RCA connections must be organized and strain-relieved at the panel level. The black finish is consistent with standard rack and enclosure hardware.

Key Features

• Dual RCA phono jacks in a single D-plate assembly
• D-sub form-factor plate fits standard D-sub panel cutouts
• Black finish matches common rack and enclosure hardware
• Compact design supports clean cable management at the termination point
• Sold as a single unit for flexible quantity ordering

Compatibility

Designed as an OEM-style panel accessory for use with standard D-sub cutout rack panels, wall plates, and AV enclosures that accept D-plate form-factor inserts.

Installation Notes

Low-voltage AV technicians typically install this component during rack build-out or structured wiring rough-in. No mains power shutoff is required, but any connected signal equipment should be powered down before terminating cables to avoid signal transients. Use appropriate hand tools to secure the plate and ensure cables are properly dressed and supported to avoid strain on the jacks.
