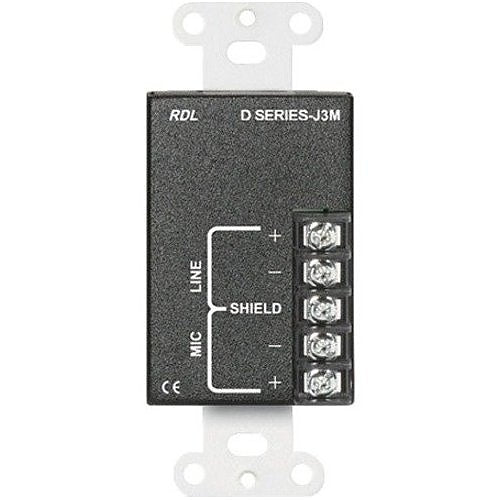

Radio Design Labs D-J3M Mic/Line Wall-Mounted Input Assembly with XLR and Mini-Jack Line Inputs

Product Description

The Radio Design Labs D-J3M is a wall-mounted input assembly designed for audio applications. It features a female XLR jack and a mini-jack for various audio input options. The XLR input connects directly to a barrier block located on the rear panel. The mini-jack accepts sources at consumer levels for both mono and stereo usage. The system incorporates transformers to manage noise and interference, ensuring high-quality audio output. The line-level output is accessible via a terminal block, ready for connection to equipment with a ten kilohm or higher input impedance.

Installation is straightforward with a metal enclosure that is clearly labeled, simplifying setup. The D-J3M can be integrated into back boxes, either those supplied by RDL or standard US and international electrical boxes.

• Wall mounted input panel for easy accessibility
• XLR input with gold contacts for enhanced signal quality
• Compatible with various audio sources using mini-jack inputs

Product Highlights

The D-J3M is suitable for professional audio installations, providing reliable connections and compatibility with a wide range of audio equipment.

Product Information

Standard Information

• Brand: Radio Design Labs
• Manufacturer: Radio Design Labs, Inc

Technical Specifications

• Model: D-J3M
• Product Type: Faceplate
• Weight: 5.76 oz
• Width: 1.7 inches
• Height: 4.1 inches
• Depth: 2.2 inches
• Environmental Friendly: Yes
