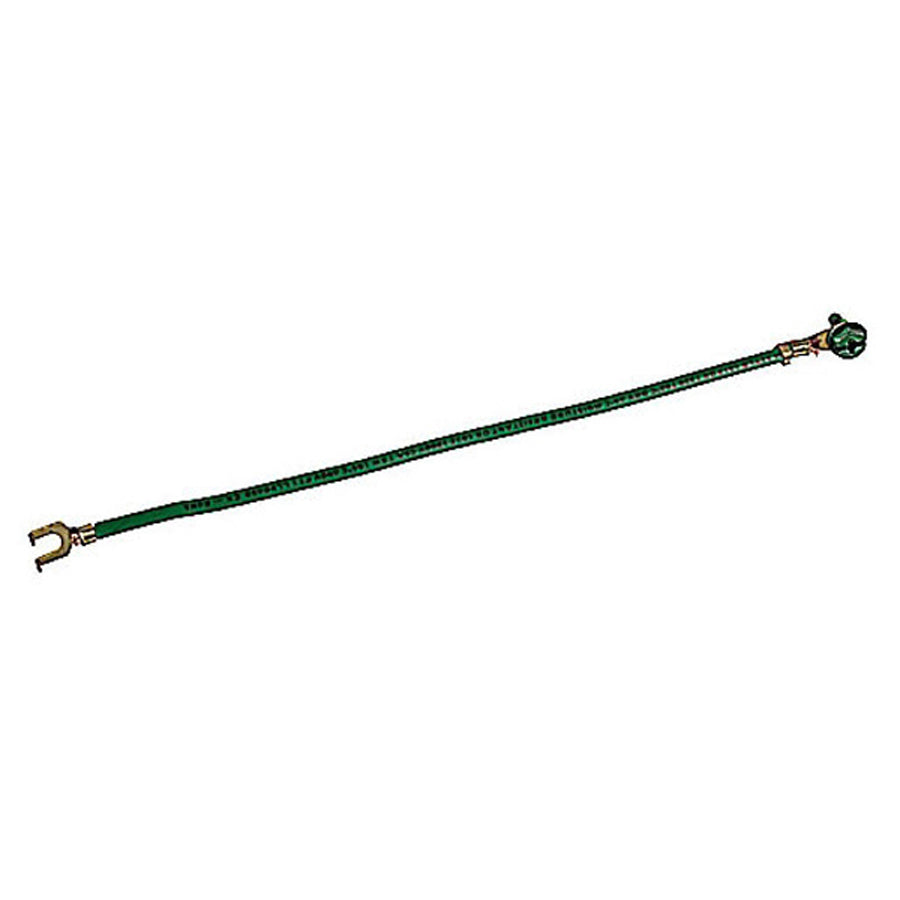

Raco GSC-12-S Grounding Pigtail 12 Awg Green Screw Terminal

Product Description

The RACO GSC-12-S is a green grounding pigtail designed for equipment grounding connections in electrical panels, junction boxes, and outlet boxes. Built from 12 AWG stranded copper conductors, it measures 8 inches in length and terminates with a 3/8 inch hex head screw for a secure, code-compliant ground attachment. The stranded construction allows flexibility during installation in tight enclosures. This pigtail is installed by licensed electricians and journeymen performing residential and commercial wiring, grounding, and bonding work in accordance with NEC requirements.

This grounding pigtail is suited for use in residential and light commercial electrical installations where equipment grounding conductors must be terminated to a grounding screw or grounding bar. Typical applications include outlet box grounding, panel grounding connections, and device grounding inside metallic and non-metallic enclosures. The green color coding confirms grounding conductor identification per NEC conventions. It is available in carton quantities of 1000, making it practical for contractors stocking service vehicles or supply rooms.

Key Features

• 12 AWG stranded copper conductor for flexibility in confined box installations
• 8 inch length provides working slack for standard box depths
• 3/8 inch hex head screw terminal for secure grounding attachment
• Green color coding meets NEC grounding conductor identification requirements
• Available in 1000-unit carton quantities for high-volume contractor use

Compatibility

Designed as an OEM-style grounding pigtail for use in standard residential and commercial electrical enclosures requiring a 12 AWG equipment grounding conductor with a hex head screw terminal.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage with a meter before making any connections inside the enclosure. The hex head screw terminal should be tightened using an appropriately sized nut driver or hex bit to ensure a solid mechanical and electrical connection. Do not substitute this pigtail for applications requiring a larger AWG grounding conductor as determined by the circuit's overcurrent protection rating.

Technical Specifications

• Conductor Size: 12 AWG
• Conductor Type: Stranded Copper
• Length: 8 inches
• Terminal Type: 3/8 inch Hex Head Screw
• Color: Green
• Weight: 2.5 pounds
• Standard Package Quantity: 1000 per Carton

Standard Information

• Brand: RACO
• Manufacturer Part Number: GSC-12-S
