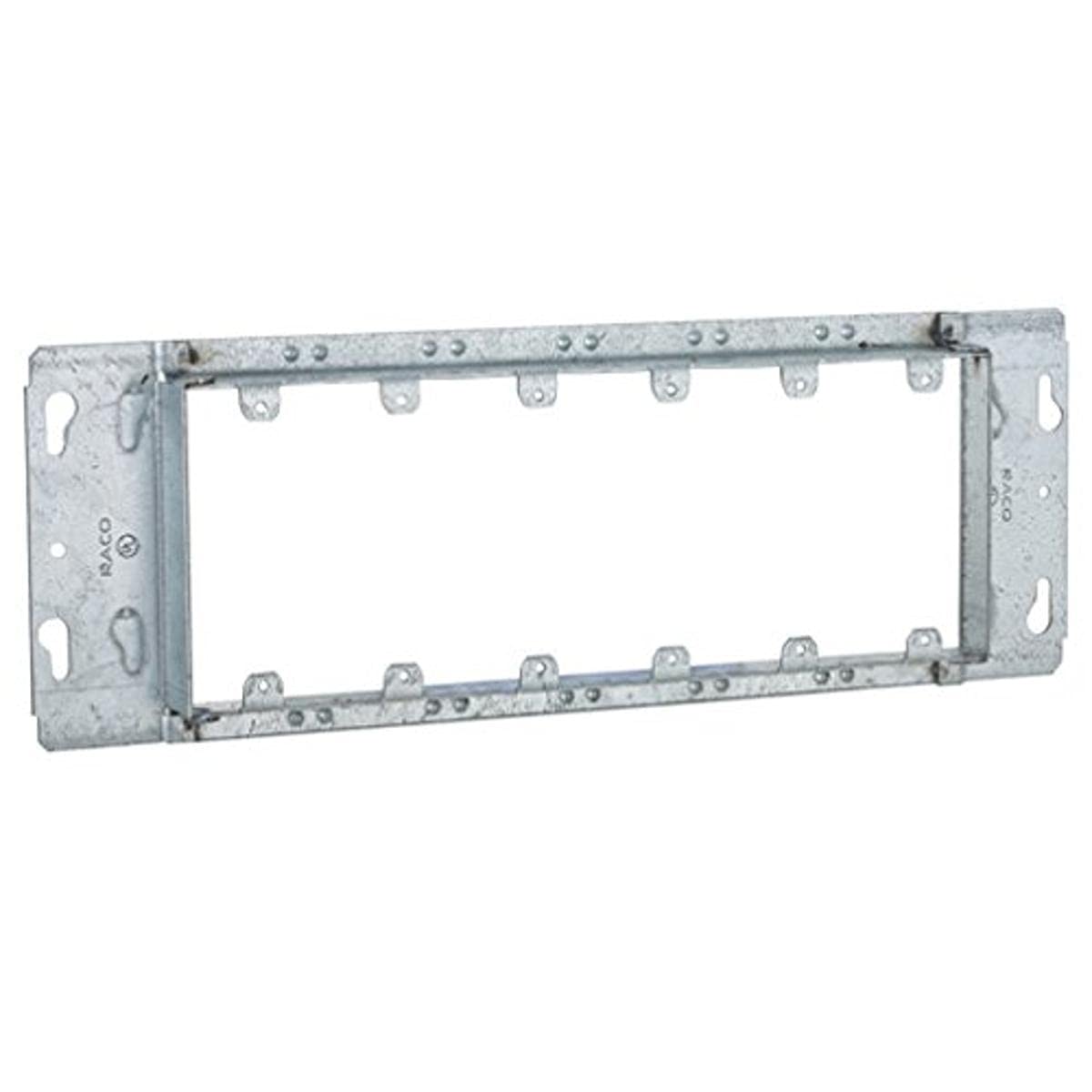

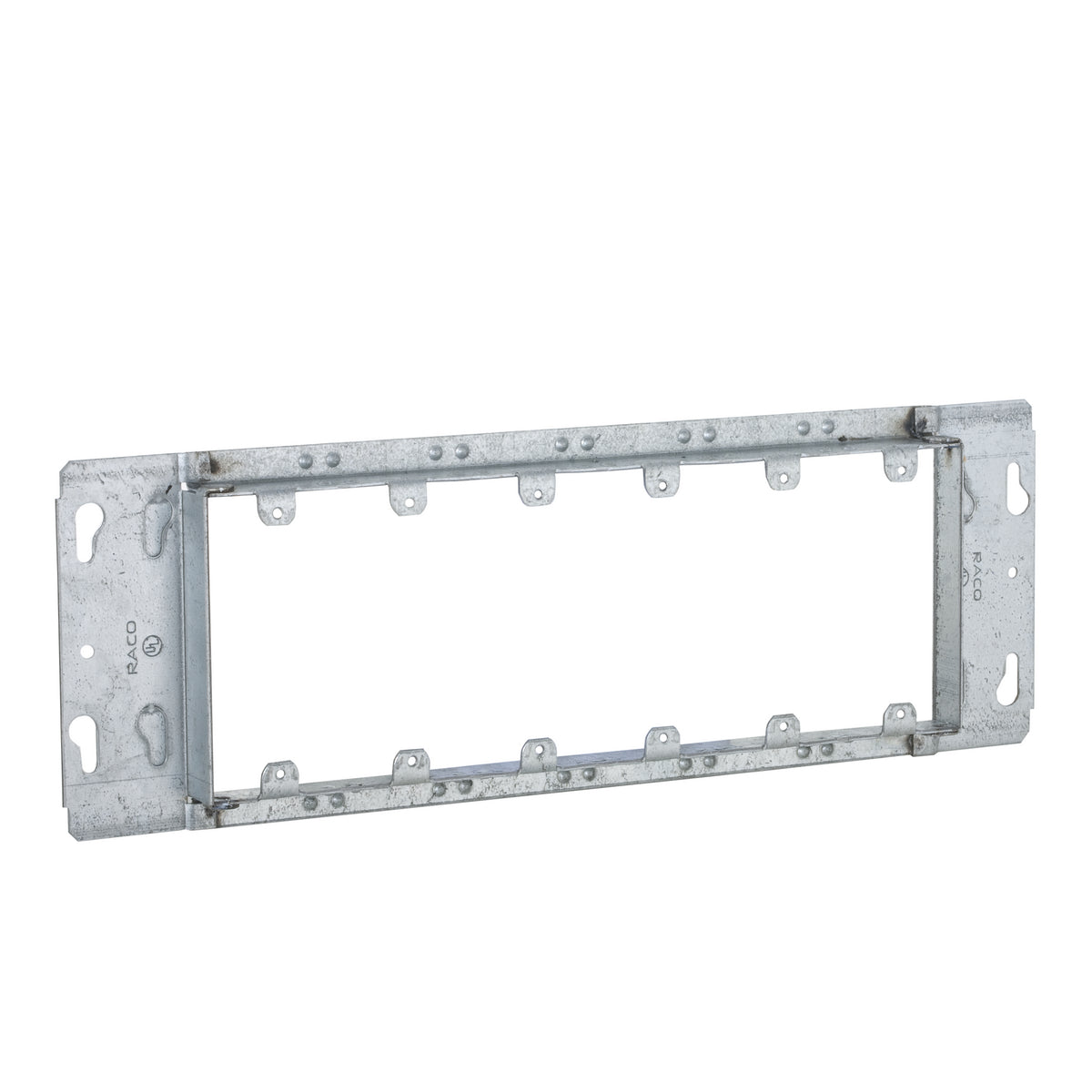

Raco 825 Device Covers for Gang Boxes - Raised 3/4 In., 6-Gang, 14-5/16 In. Width

Product Description

The RACO 825 device cover is designed for gang boxes, featuring a raised 3/4 inch height, a 6-gang configuration, and a width of 14-5/16 inches. It is constructed with a welded design and has a capacity of 30.5 cubic inches. Suitable for electrical applications, this device cover is UL listed and fits a six gang box. Keyholes allow fitting to the next smaller box.

• Standard raised 3/4" for commercial wall applications
• Additional keyholes allow device covers to also fit next smaller box (example: A 3-gang cover will fit a 2 OR 3 gang box)
• 30.5 cu. in. capacity

Product Highlights

RACO 825 device cover is designed for electrical gang boxes, featuring a raised height and keyholes for flexible installation.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 825
• Country of Origin: China

Technical Specifications

• Catalog Number: 825
• Brand: RACO
• Application: Electrical
• Construction: Welded
• Cubic Capacity: 30.5 cu.in
• Finish: Unpainted
• Shape: Rectangular
• Special Features: Standard raised 3/4" for commercial wall applications; additional keyholes allow device covers to also fit next smaller box (example: A 3-gang cover will fit a 2 OR 3 gang box)
• Standard: UL Listed
• UPC: 050169008256
• GTIN: 00050169008256
• Item Type: Device Cover
• Size: 0.75 in x 14.313 in x 4.5 in
• Type: Raised
• Width: 14-5/16 Inch
• Opening Type: Device
• Number of Gangs: 6
• Approval: UL 514A, CSA C22.2
• Raised Size: 3/4 Inch
• Capacity: 30.5 Cu Inch
• Applicable Standard: ANSI, NEMA OS1
• Depth: 3/4 in
• Height: 4.5 in
• Length: 14 3/8 in
• Box Type: Square
• Standards: UL
• Cover Type: Blank
• Dimensions: 0.75 in x 14.313 in x 4.5 in
• Each - Width: 14.313 in
• Product Type: Electrical Box Cover
• Raised Height: 3/4 in
• Certified Listed: UL Listed
• Number of Gang(s): 6-Gang
• Length (Straight Wireway): 14 3/8 in
• Fits: a six gang box
• Weight: 1.15 lb
