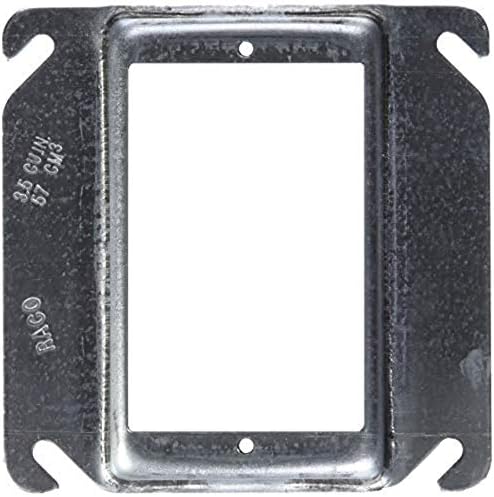

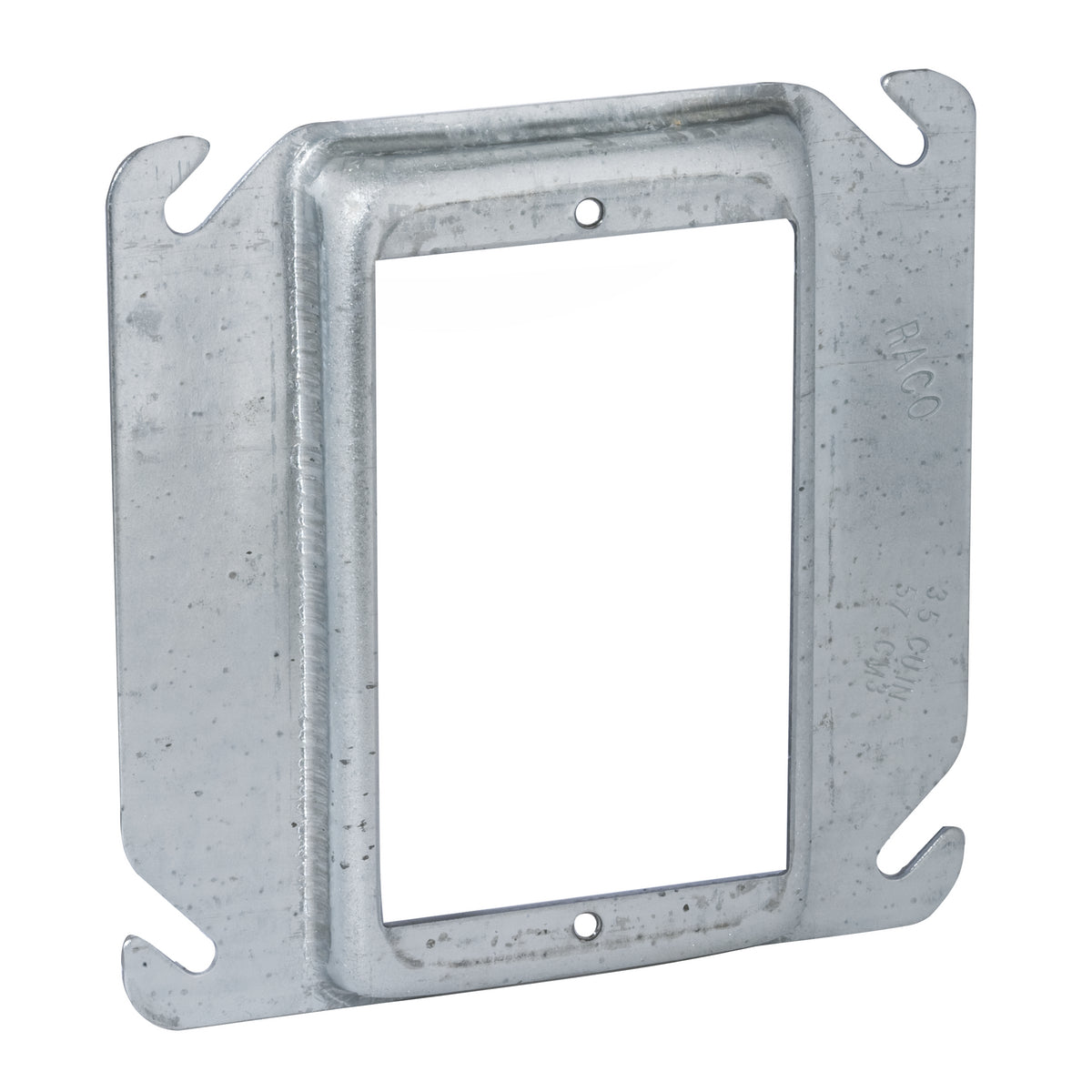

Raco 782 4 in. Square Single Device Covers, Raised 1/2 in. Tile

Product Description

The RACO 782 is a 4 In. Square Single Device Cover, Raised 1/2 In. Tile designed for electrical applications. Angled mounting slots allow for correction of box misalignment. It has a capacity of 3.5 CUIN and is cULus Listed. This mud ring is ideal for single wiring device applications.

• For single wiring device
• Angled mounting slots allow for correction of box misalignment
• Hardware included with cover

Product Highlights

The RACO 782 is a square mud ring designed for electrical applications, featuring angled mounting slots and a capacity of 3.5 CUIN.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 782
• Country of Origin: United States

Technical Specifications

• Catalog Number: 782
• Manufacturer: Raco-Taymac-Bell, a Hubbell affiliate
• Brand: RACO
• Country of Origin: United States
• Made in USA: Yes
• Application: Electrical
• Construction: Welded
• Cubic Capacity: 3.5 CUIN
• Finish: Unpainted
• Material: 0.0625 Inch Pre-Galvanized Steel
• Shape: Square
• Special Features: For single wiring device; angled mounting slots allow for correction of box misalignment
• Standard: cULus Listed
• Item Type: Mud Ring
• Size: 0.5 in x 4 in x 4 in
• Opening: (1) Device
• Width: 4 in.
• Box Shape: Square
• No. of Gangs: 1
• Box Size: 4 Inch
• Raised: 1/2 Inch
• Capacity: 3.5 Cu Inch
• Approval: UL 514A, CSA C22.2
• Applicable Standard: ANSI, NEMA OS1
• Length: 0.5"
• Height: 4"
• For Use With: 4" One Gang Box
• Sub-Category: Mounting Accessories
• Raised Height: 1/2"
• Accessory Type: Plaster Ring
• Number of Gang: 1-Gang
• Type: 4 IN square cover
• Applications: Electrical
• Installation type: Screw-In
• Specification met: UL
• Number of Outlets: 1
• Pre-Galvanized/Unpainted: Pre-Galvanized/Unpainted
