Raco 688 Masonry Bx., 2-1/2 In. Dp. - Gangable w/Conduit KO's, 1-Gang, 1-15/16In.Wide

Product Description

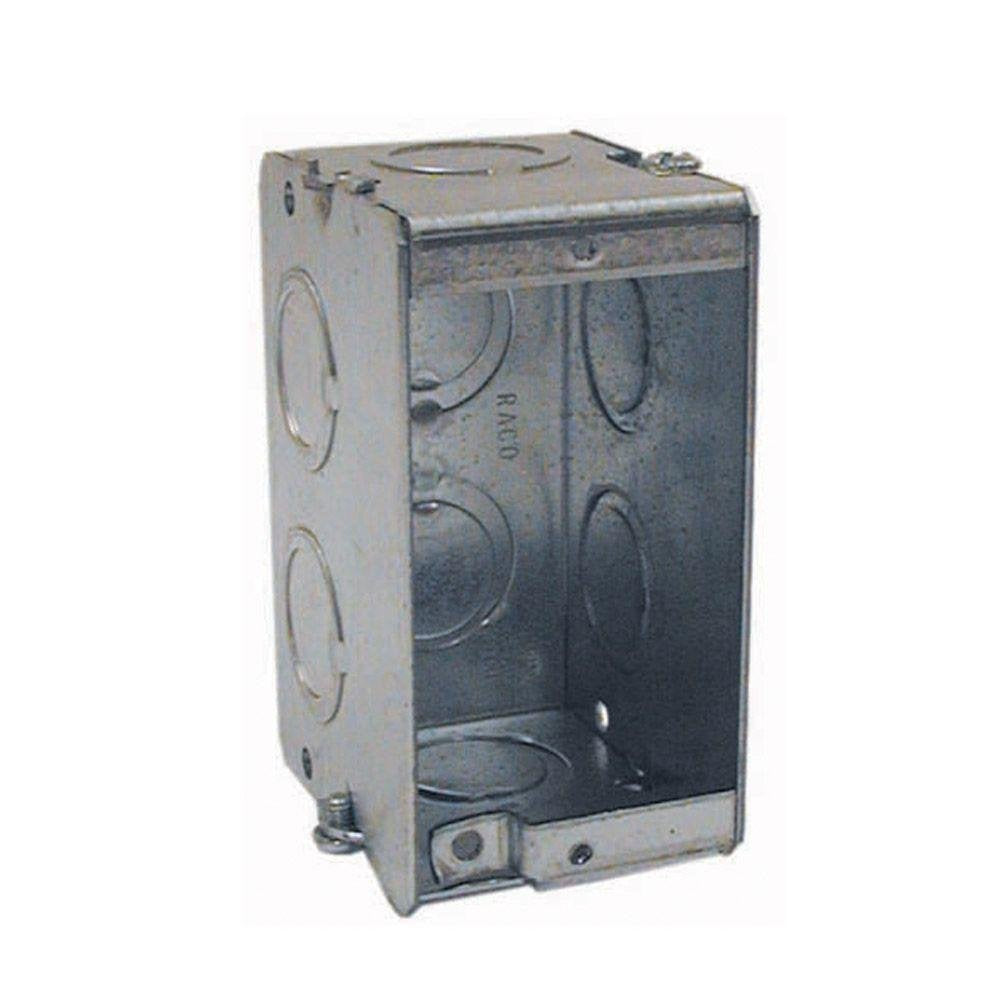

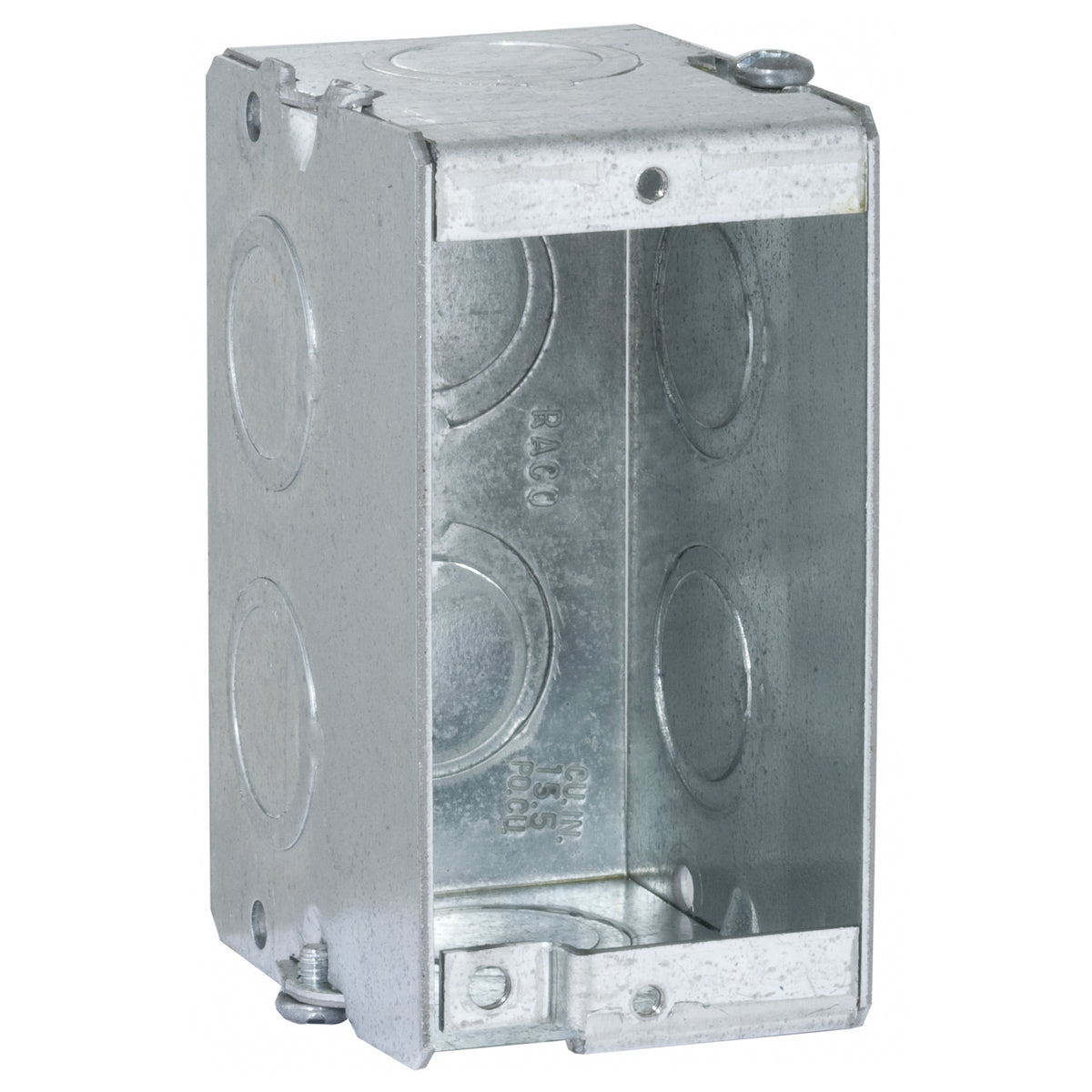

The RACO 688 is a gangable masonry box with conduit knockouts. This 1-gang box is 1-15/16 inches wide and 2-1/2 inches deep, and is constructed of steel. It is UL listed and suitable for electrical applications in masonry walls. The box has a capacity of 15.5 CUIN.

• Gangable design
• Conduit knockouts
• Suitable for use without a bonding jumper in circuits above or below 250 volts
• Device ears formed inside the box

Product Highlights

The RACO 688 masonry box features a gangable design and conduit knockouts, and is suitable for use without a bonding jumper in circuits above or below 250 volts.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 688
• Country of Origin: Canada

Technical Specifications

• Catalog Number: 688
• Brand: RACO
• Country of Origin: Canada
• Made in USA: No
• Application: Electrical
• Cable Entry: Knockouts for conduit
• Color: Gray
• Construction: Gangable
• Cubic Capacity: 15.5 cu.in
• Knockouts: 1/2 in - 3/4 in Combination (TKO)
• Material: 0.0625 Inch Pre-Galvanized Steel
• Mounting: Masonry Block
• Special Features: Gangable design offers the option of constructing a box to hold two or more devices; available in 2-1/2" & 3-1/2" depths; patented TKO 1/2" & 3/4" eccentric knockouts (Per U.L. 514-A, suitable for use without a bonding jumper in circuits above or below 250 volts); device ears formed inside the box, preventing mortar from getting in the device holes; standard wall plates cover box opening
• Standard: UL Listed
• Item Type: Box
• Size: 2-1/2
• Type: Gangable
• Depth: 2-1/2 Inch
• Height: 3-3/4 Inch
• Width: 1-15/16 Inch
• Knockout Location: (2) Bottom, (4) Sides, (2) Ends
• Knockout Size: (2) (1/2 Inch - 3/4 Inch) Conduit Threaded Knockout Bottom, (4) (1/2 Inch - 3/4 Inch) Conduit Threaded Knockout Sides, (2) (1/2 Inch - 3/4 Inch) Conduit Threaded Knockout Ends
• Number of Knockouts: 8
• Number of Gangs: 1
• Capacity: 15.5 Cu Inch
• Approval: UL 514A, CSA C22.2
• Applicable Standard: ANSI, NEMA OS1
• Nominal Depth: 2-1/2 In.
• Nominal Length: 3-3/4 In.
• Nominal Width: 1-15/16 In.
• Number of 3/4" Back Knockouts: 2
• Number of 3/4" Side Knockouts: 6
• Number of 1/2 In. Back Knockouts: 2
• Number of 1/2 In. Side Knockouts: 6
• Product Type: ELECTRICAL_HOUSING
• Standards: UL File E195978
• Bracket Type: No Bracket
• Gangable: Yes
• Wiring System: Conduit
• Number of Gang(s): 1-Gang
