Product Description

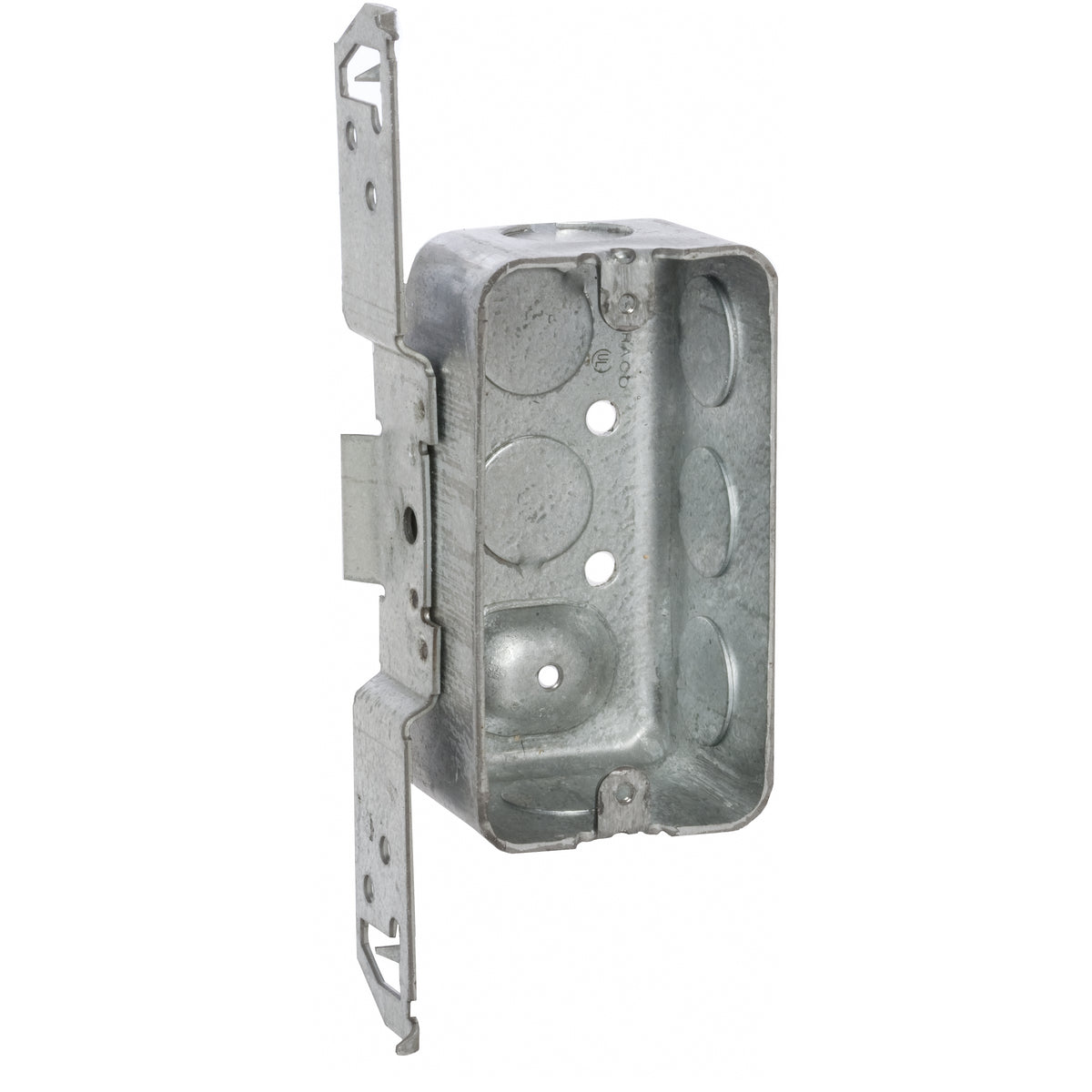

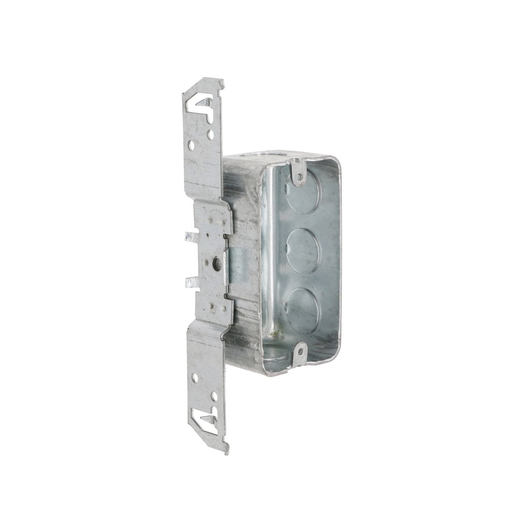

The RACO 662 Handy Box is a steel utility box suitable for convenience outlets, switch boxes, or small junction boxes. It features 1/2-inch end knockouts and a wood/metal stud bracket. The box is constructed from pre-galvanized steel and has a capacity of 13 cu inch. The TS bracket features gauging tabs and recessed nailing spurs for secure mounting.
- Constructed of pre-galvanized steel
- Features a TS bracket for metal or wood studs
- Suitable for use in 2-hour fire rated walls
Product Highlights
This steel handy box is ideal for electrical and exposed work applications, offering a durable and versatile solution for various wiring needs.
Product Information
Standard Information
-
Brand: RACO
-
Manufacturer Part Number: 662
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 662
-
Part Number: 662
-
Style: Compact
-
Finish: Pre-Galvanized
-
Material: 0.0625 Inch Pre-Galvanized Steel
-
Installation Type: Nail-On
-
Brand: RACO
-
Made in USA: Yes
-
Application: Electrical
-
Cable Entry: Knockouts for conduit
-
Cubic Capacity: 13.0 CUIN
-
Knockouts: 1/2 in
-
Mounting: Ts Bracket
-
Special Features: TS bracket features gauging tabs and recessed nailing spurs
-
Standard: UL Listed
-
Item Type: Box
-
Width: 2.59
-
Width UOM: Inch
-
Depth: 1.875 IN
-
Size: 1-7/8
-
Type: Utility
-
Height: 4 Inch
-
Capacity: 13 Cu Inch
-
Number of Knockouts: 8
-
Knockout Location: (3) Bottom, (3) Sides, (2) Ends
-
Knockout Size: (2) 1/2 Inch Conduit Bottom, (1) Bottom, (3) 1/2 Inch Conduit Sides, (2) 1/2 Inch Conduit Ends
-
Number of Gangs: 1
-
Mounting Type: 1/2 Inch Setback TS Bracket
-
Approval: UL 514A, CSA C22.2
-
Applicable Standard: ANSI, NEMA OS1
-
Applications: Electrical
-
Length: 1-7/8 Inch
-
UNSPSC: 39121303
-
Use With: Convenience Outlets, Switch Boxes or Small Junction Boxes
-
Box Capacity: 13
-
Box Depth: 1-7/8 in.
-
Box Mounting: Vertical
-
Box Style: 4 x 2 in. Rectangular Box
-
Bracket Type: TS
-
Construction: Welded
-
No. of Gangs: 1
-
Color Family: Silver
-
Actual Depth: 1.875 in
-
Raised Ground: Yes
-
Wiring System: Conduit
-
Drawn or Welded: Drawn
-
Fire Resistance: Yes
-
Number of Outlets: 1
-
Cable Entry Size: Knockout
-
Includes: Conduit Knockout, TS Bracket, 1/2 in Setback and Raised Ground
-
Box Type: Handy
-
Nominal Depth: 1-7/8"
-
Nominal Width: 2"
-
Nominal Length: 4"
-
Number of 1/2 In. Back Knockouts: 3
-
Number of 1/2 In. Side Knockouts: 5
-
Item: Electrical Box
-
Standards: UL File E195978
