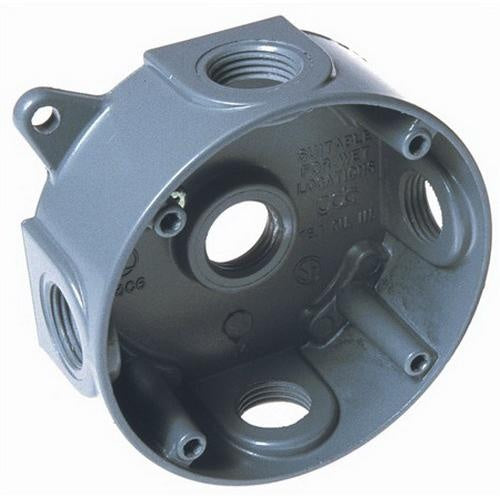

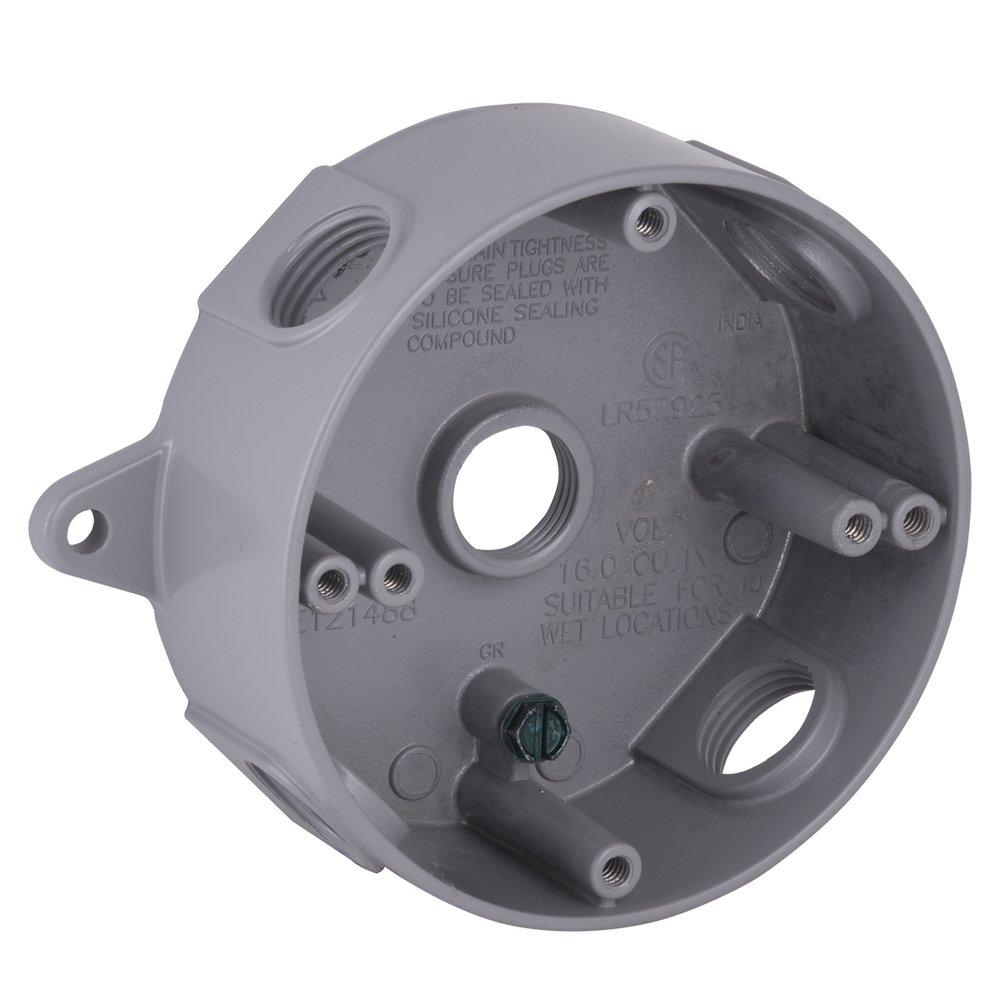

Raco 5361-0 Round Splice Box 4 x 1-1/2 in.

Product Description

The RACO 5361-0 round splice box is designed for use as a weatherproof junction box in branch circuit wiring in wet, damp, or dry locations. The state-of-the-art powder coat finish provides maximum weatherability and scratch resistance. It features reinforced connector outlets and hubs that accept all threaded fittings and threaded conduit.

• State-of-the-art powder coat finish provides maximum weatherability and scratch resistance
• Cast-in mounting lugs provide fast, secure installation
• Reinforced connector outlets

Product Highlights

This RACO round splice box includes mounting hardware, a ground screw, and multi-lingual instructions. Four closure plugs are also included.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 5361-0
• Country of Origin: India

Technical Specifications

• Material: Die Cast Aluminum
• Standards: UL 514A Listed, CSA C22.2 No.18 Certified
• Sub Brand: Bell®
• Size: 4 Inch
• Shape: Round
• Number of Hubs: 5.0000
• NEMA Rating: NEMA 3R
• Mounting: Lug
• Cubic Capacity: 16
• Depth: 1.5
• Item Name: Weatherproof Splice Box
• Finish: Powder Coated
• Hub Locations: (4) Sides, (1) Back
• Hub Size: 1/2 Inch
• UPC: 05016953610
• Manufacturer Name: Raco
• Manufacturer Part Number: 5361-0
• RoHS Flag: No
• Brand Name: Raco
• Country Of Origin: India
• Energy Star Flag: No
• UNSPSC: 39121305
• GTIN: 00050169536100
• Thread Size: 1/2 in
• Type: Round/Splice Box
• Actual Depth: 1.625 in
• Number of Threaded Outlets: 5
• Threaded Outlet Diameter: 1/2 in
• Cubic Inches: 16.100 in³
• Connection Size: 1/2"
• Approved for Commercial Use: Yes
• Certifications: UL, CSA
• Location Rating: Wet Location
• Height: 5.53 in
• Width: 4.16 in
