Raco 512 Old Work Switch Box 3x2 Nm Clamp

Product Description

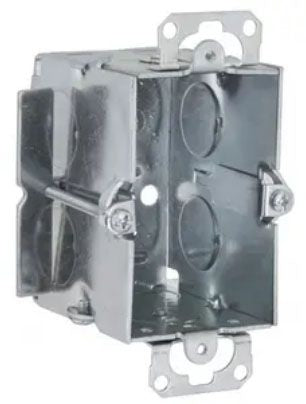

The RACO 512 is a 3x2 single-gang old-work switch box designed for retrofit electrical installations where walls are already finished. Built for nonmetallic (NM) cable entry, it includes integrated NM clamps that secure cable without requiring separate fittings. This box is installed by licensed electricians working on remodel or renovation projects where cutting into existing drywall or plaster is necessary. Its old-work design allows mounting directly to finished wall surfaces, eliminating the need to access wall studs from an open framing side. The 512 is a standard single-gang device box sized to accept switches, receptacles, and other standard wiring devices.

The RACO 512 is suited for residential and light commercial retrofit wiring projects. It is used when adding or relocating electrical switches or outlets in finished wall assemblies. The box accepts NM cable, making it appropriate for typical residential wiring applications where NM sheathed cable runs are standard. It ships in a pack of 20 units, making it practical for larger remodel projects requiring multiple rough-in locations.

Key Features

• Old-work design mounts in finished walls without open framing access
• Integrated NM cable clamps secure nonmetallic sheathed cable at entry points
• Single-gang configuration accepts standard switches and receptacles
• Sold in packs of 20 units for multi-box remodel applications
• 3x2 box profile fits standard single-gang wall plate openings

Compatibility

Designed as an OEM-style replacement and standard retrofit solution for single-gang old-work electrical box applications in finished residential and light commercial wall assemblies using NM cable.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify with a non-contact voltage tester before cutting into the wall or handling any wiring. The box is inserted through the cutout in the finished wall surface and secured using the integral old-work mounting ears or wings. Do not exceed the box fill capacity as defined by NEC Article 314 when adding conductors and devices.

Technical Specifications

• Box Type: Old Work Single Gang Switch Box
• Cable Entry: NM Clamp
• Box Size: 3x2
• Pack Quantity: 20 per pack
• Package Dimensions (L x W x H): 12.94 inches x 5.75 inches x 8.13 inches
• Package Weight: 13.34 pounds
• UPC: 05016900512

Standard Information

• Brand: RACO
• Manufacturer Part Number: 512
