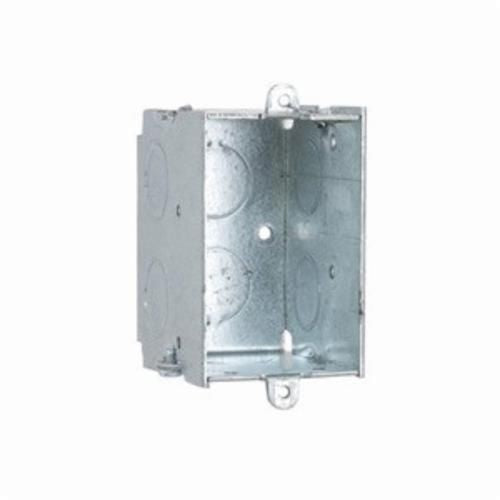

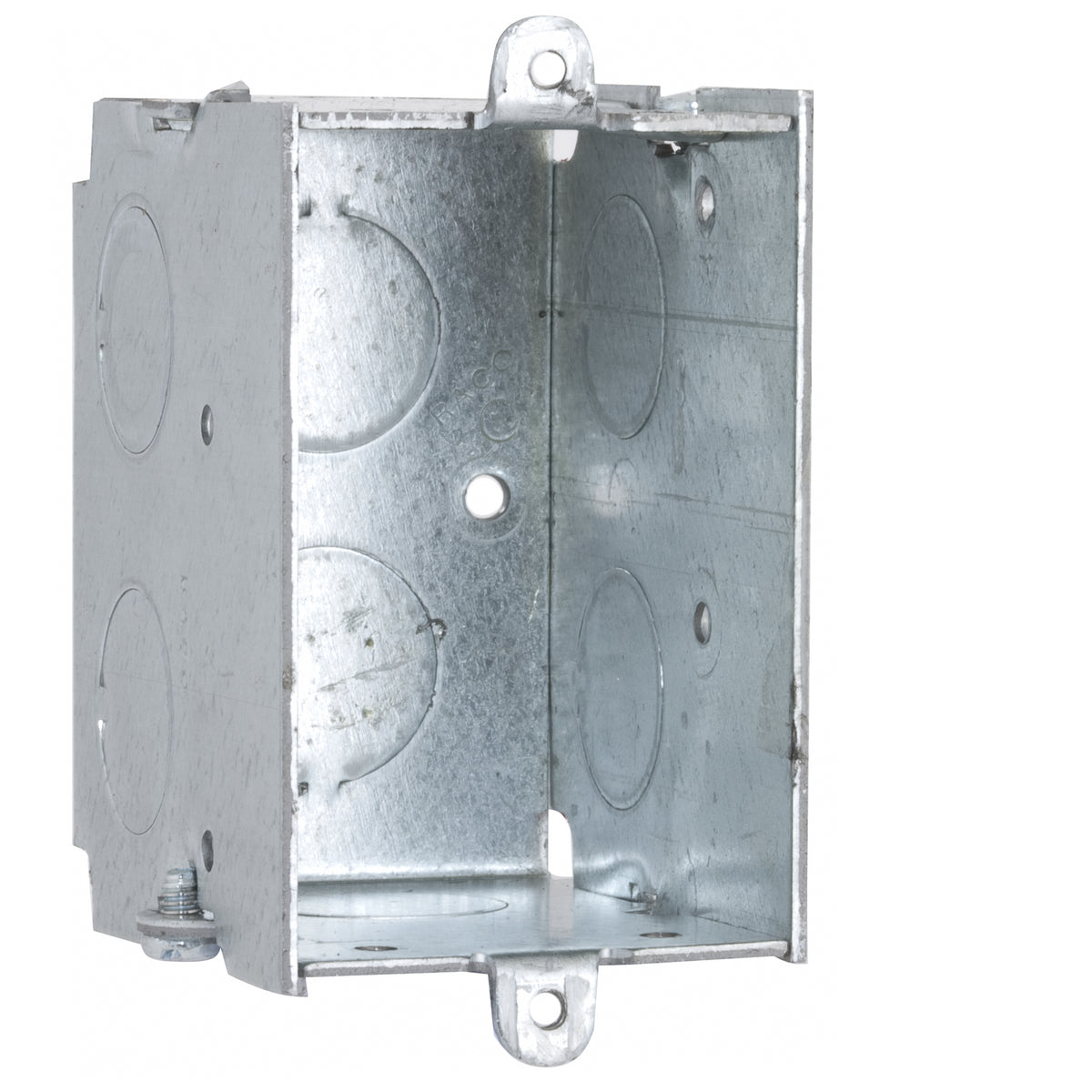

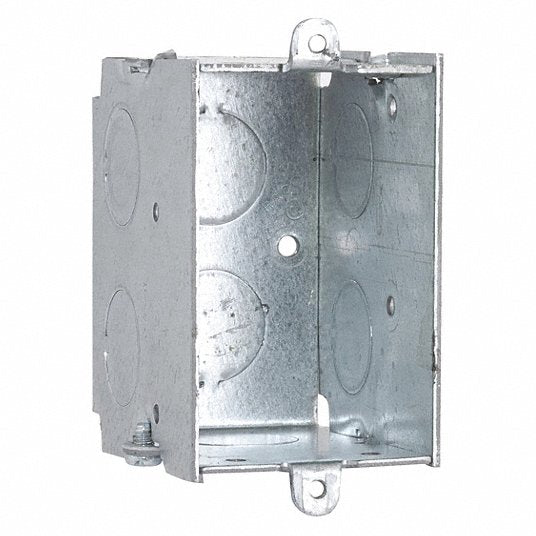

Raco 501 gangable switch box 12.5 cu. in. (50-pack)

Product Description

The RACO 501 gangable switch box with a capacity of 12.5 cu. in. offers flexibility for electrical installations. These switch boxes allow the construction of a box to hold two or more devices. They can be used for conduit, NMSC, armored, metal clad, and flex cable with proper fitting.

• Gangable switch boxes offer the option of constructing a box to hold two or more devices
• With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
• Supplied with eight 1/2 in. knockouts

Product Highlights

Constructed from steel, this gangable switch box features eight 1/2-inch knockouts and is suitable for use in 2-hour fire-rated walls.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 501
• Country of Origin: Mexico

Technical Specifications

• Brand: Raco
• Manufacturer: Hubbell Electrical Products
• Model / MPN: 501
• Product Type: ELECTRICAL_HOUSING
• Catalog Number: 501
• Fire Resistance: Yes
• Gangable: Yes
• Knockouts: 1/2 in
• Material: Steel
• Number of Gang(s): 1-Gang
• Plaster Ears: No
• Type: Switch Box Box
• UPC: 050169905012
• Wiring System: Conduit
• Cubic Capacity: 12.5 cu.in
• Depth: 2.5 in
• Height: 3.375 in
• Width: 2 in
• Power Distribution Features: Fire Rated
• Certified Listed: UL Listed
• Number of Knockouts: 8
• Knockout Location: (2) Bottom, (4) Side, (2) End
• Knockout Size: 1/2 Inch
• Gang: 1
• Clamp: No Clamp
• Mounting Type: Threaded
• Number of Outlets: 1
• Shape: Rectangular
• Application: For house wiring devices such as switches and outlets
• Standard & Approvals: UL E195978
• Cable Entry: Knockouts
• Capacity: 12.5 cu-in
• Finish: Pre-Galvanized
• Applications: Electrical
• Number of Gangs: 1 Gang
• Size: 2-1/2 IN
• Construction: Gangable
• Product UPC: 05016990501
• Cable Entry Size: Knockout
• BABA Compliant: No
