Raco 4734 1 in. Type B Liquidtight Conduit Swivel Lok Straight To 90 Degrees Connector Nonmetallic (Pack-10)

Product Description

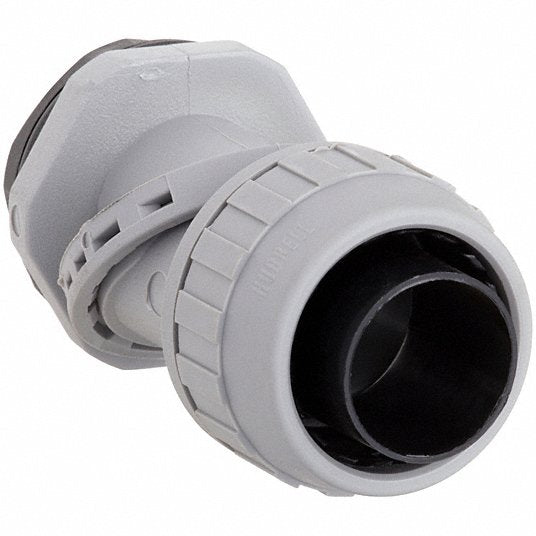

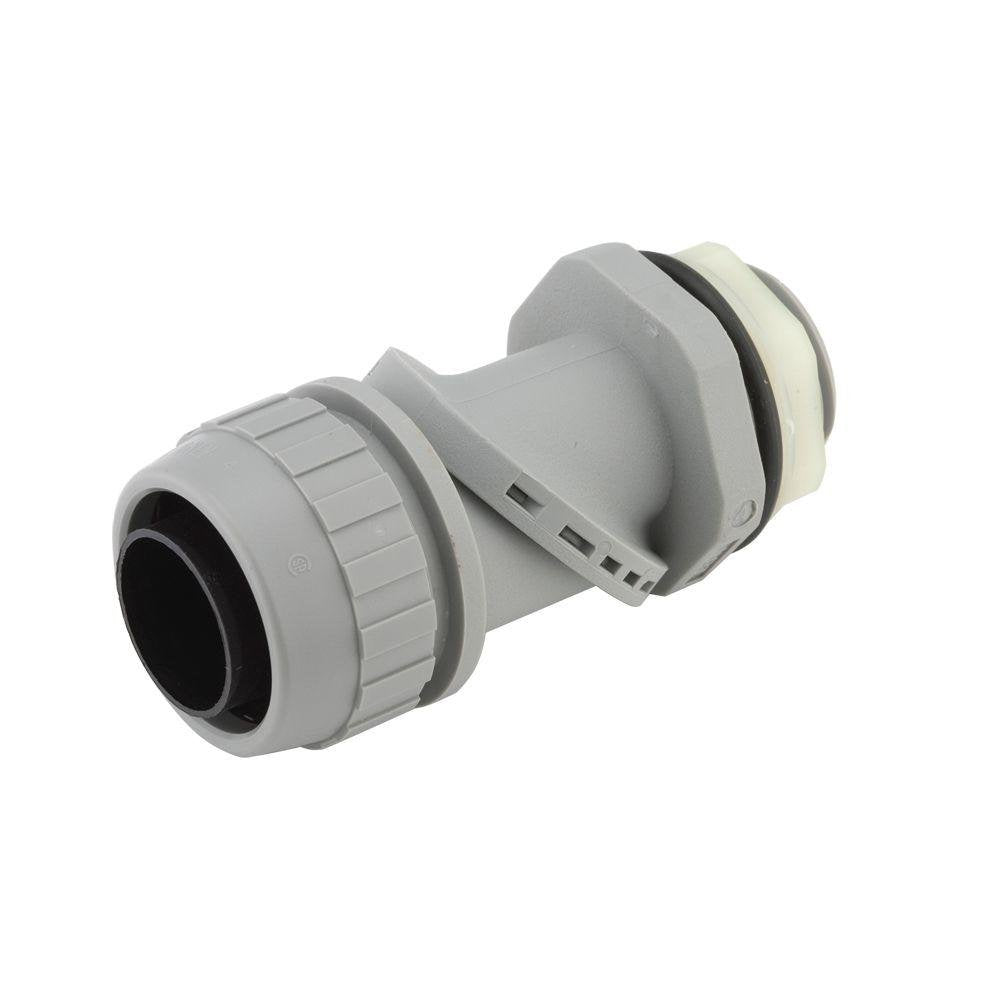

The RACO 4734 is a 1 in. Type B Liquidtight Conduit SWIVEL LOK Straight To 90 Degrees Nonmetallic Connector. It features a gray nonmetallic construction that provides superior corrosion resistance. The multi-position connector twists from 0° to 90°, easing installation in difficult locations and eliminating the need to stock other angle connectors. It is suitable for wet locations.

• All gray nonmetallic construction provides superior corrosion resistance
• Each connector is supplied with a Neoprene O-ring and nylon gasket
• SWIVEL-LOK, multi-position connector twists from 0° to 90°, easing installation

Product Highlights

The RACO 4734 connector is ideal for applications requiring flexibility during installation and maintenance, connecting liquid-tight conduit to fixtures and electrical boxes.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 4734
• Country of Origin: United States

Technical Specifications

• Brand: RACO
• MPN: 4734
• Product Type: HOME_LIGHTING_ACCESSORY
• Product Group: Home Improvement
• Conduit Type: Liquidtight
• Connector Type: SWIVEL-LOK
• Environmental Conditions: Wet Location
• Fitting Type: Connectors
• Material: Nylon
• Series: SWIVEL-LOK Series
• UPC: 050169947340
• Height: 1.8 in
• Length: 4 in
• Trade Size: 1 in
• Width: 1.8 in
• Certified Listed: UL Listed CSA Certified
• Industry Standard(s): UL 514B
• Nema Rating: NEMA 4X, 12 and 13
• Application: For use in dry or wet locations when the conduit and fittings are not subject to physical damage. Use Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance
• Angle: Right Straight Degree(s)
• Connection Orientation: 0 to 90
• Box Connection: 1 in MNPT
• Insulated: No
• Overall Width: 1-13/16 in
• Overall Length: 4 in
• For Use With: Flexible Liquid Tight Non-Metallic Type B Conduit
• Standards: CSA C22.2 No. 18; UL 514B
• Country of Origin: United States
