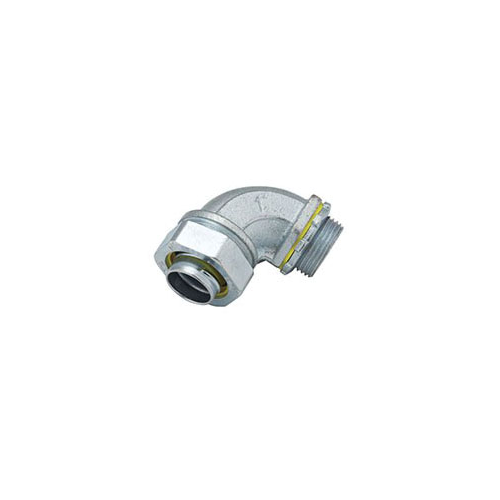

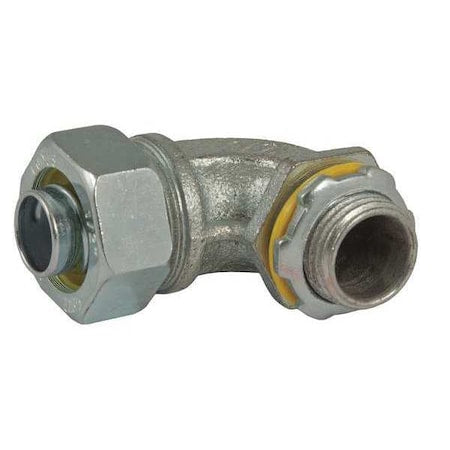

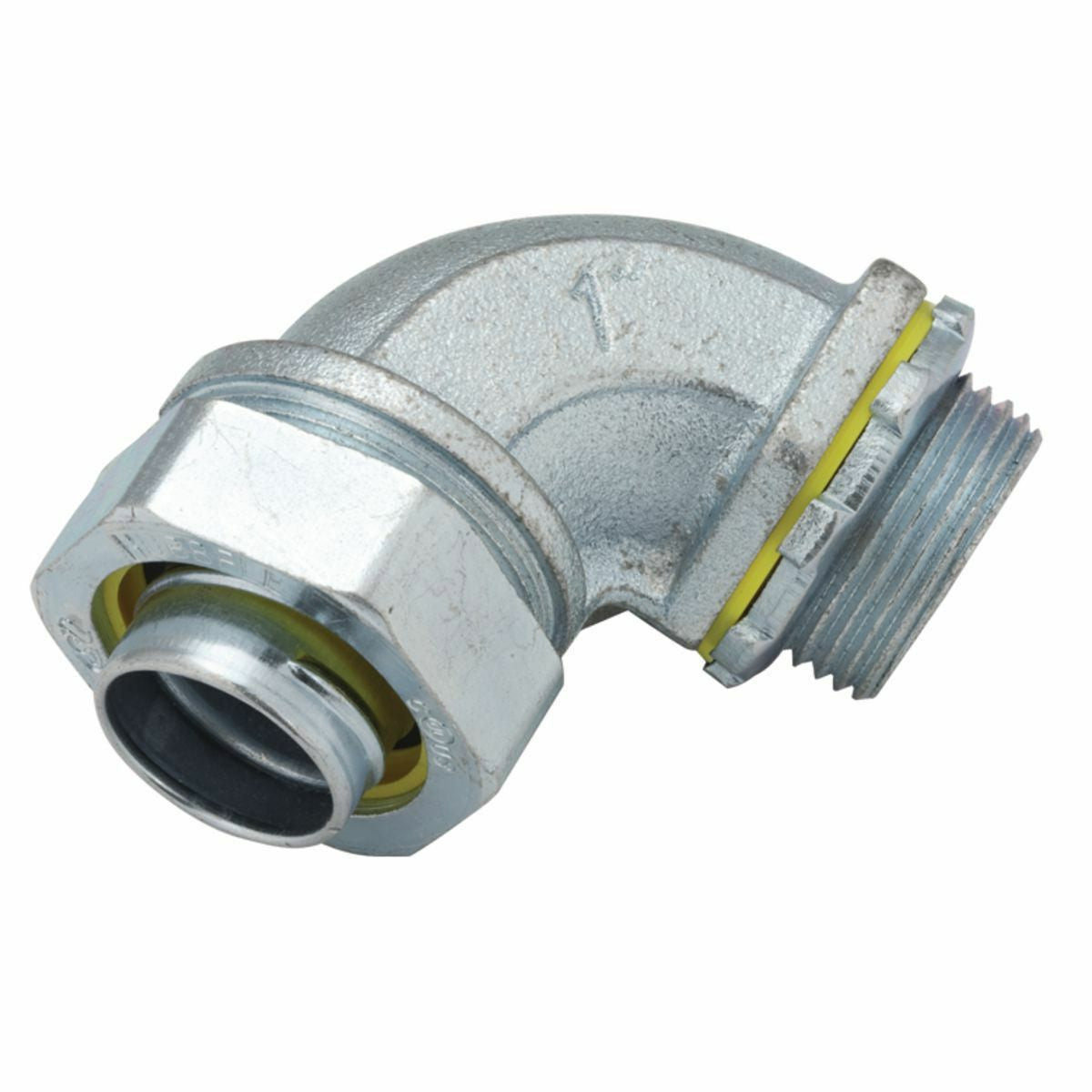

Raco 3432 3 inches 90deg liquidtight connector, uninsulated, malleable iron

Product Description

The RACO 3432 is a 3" 90-degree liquidtight connector, designed with a malleable iron construction and uninsulated throat. It is suitable for use with flexible metallic and non-metallic Type B liquidtight conduit, for indoor or outdoor applications, and hazardous locations. Zinc electro-plating provides enhanced corrosion protection. It assures a perfect seal, preventing pullouts.

• Constructed from malleable iron for durability.
• Features a patented split gland-ring for a tight seal and quick installation.
• Suitable for hazardous, outdoor, and indoor locations.

Product Highlights

This 3-inch, 90-degree liquidtight connector ensures a reliable, reusable, and corrosion-resistant connection for electrical conduits.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 3432
• Country of Origin: China

Technical Specifications

• GTiN: 00050169034323
• Size: 3 IN
• Type: 90 degree, uninsulated, liquidtight and Type B
• Brand: RACO
• Width: 4.750 in
• Finish: Zinc Electroplated
• Height: 10-5/8 Inch
• Length: 4-3/4 Inch
• Material: Iron
• Trade Size: 3 Inch
• Product UPC: 05016903432
• 12-Digit UPC: 050169034323
• Applications: Electrical
• Insulation Type: Uninsulated
• Country of Origin: China
• Catalog Number: 3432
• Standard: UL 514B
• Bend: 90
• Throat Type: Non-Insulated
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic/Non-Metallic Liquidtight Type B Conduit
• Connector Size: 1-3/16 Inch Dia
• Thread Size: 1/2 Inch-14 TPI Inch Dia
• Application: Hazardous Location, Outdoor/Indoor Location
• ECCN: EAR99
• UNSPSC: 39121420
• Fitting Type: Angled Connector
• Thread Length: 1.0625
• Item Name: 90 Degree Liquidtight Connector
• For Use With: Flexible Metallic/Non-Metallic Liquidtight Type B Conduit
• Connection Type: Threaded
• Manufacturer Name: Raco
• Manufacturer Part Number: 3432
• Standards: UL 514B, E195970 Listed, CSA Certified, Hazardous Locations: Class I, Division 2, Class II, Division 1 and 2 and Class III, Division 1 and 2
• Conduit Size: 3"
• Elbow Angle: 90 Degrees
• Mesh Length: No Strain Relief Mesh
• Box Connection: 3 in MNPT
• Connector Type: 90 Degrees
• Overall Height: 10 5/8 in
• Overall Length: 4 3/4 in
• Conduit Fitting Type: Connector
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: 90 Degrees Elbow
• External Grounding Lug: No
• Item - Conduit Fitting: Liquid Tight Conduit Fitting
• Color - Conduit Fitting: Silver
• Compatible Conduit Type: Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
• Conduit Fitting Material: Steel/Malleable Iron
• Hazardous Location Rating: Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2
• Compatible Knockout Trade Size: 3 in
• Country of Origin (subject to change): China
• Conduit Type: Liquidtight
• EU RoHS Indicator: Yes
• Certified Listed: UL Listed CSA Certified
• Hazardous Rating(s): Class I, Division 2 Class II Division 1 & 2 Class III, Division 1 & 2
• Industry Standard(s): UL 514B
• Angle: 90 deg
• Suitable For Use With: Non-Metallic and Metallic Flexible Type B Liquidtight Conduit and Cord Connector
• Includes: Sealing Washer and Locknut
