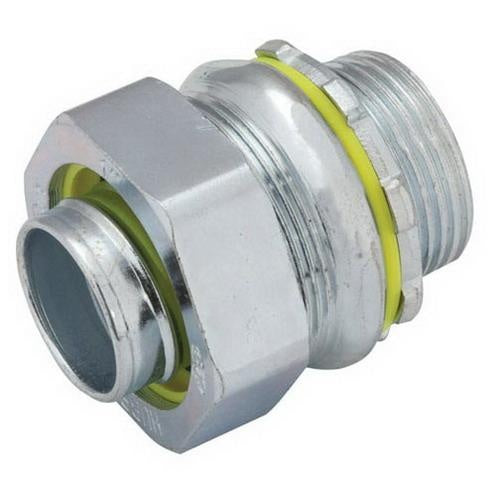

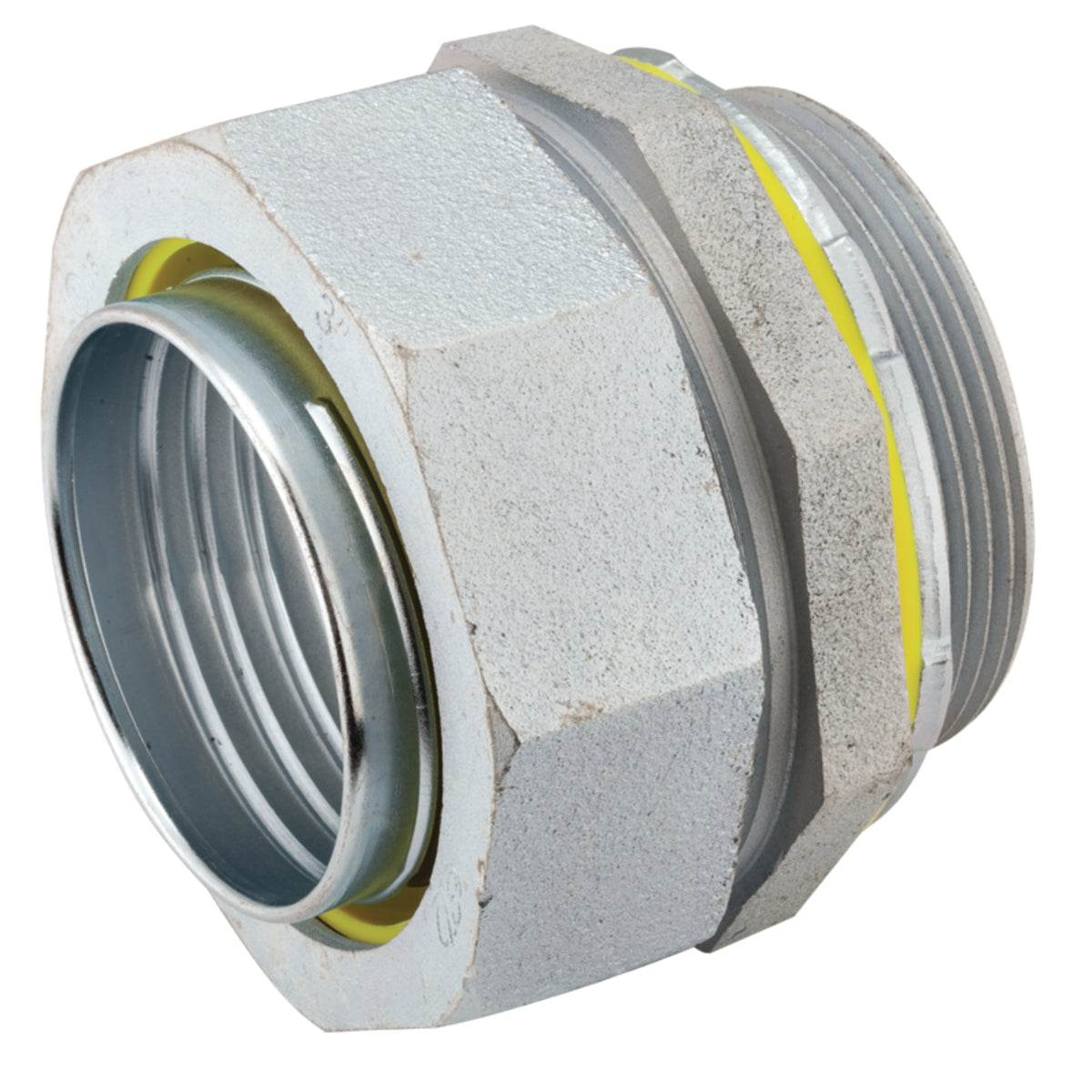

Raco 3412 3 inches Straight Liquidtight Connector Uninsulated

Product Description

The RACO 3412 3" Straight Liquidtight Connector is an uninsulated connector for use with flexible metallic liquidtight conduit and Type B flexible nonmetallic liquidtight conduit. Zinc-electroplated for added corrosion protection. The innovative split gland-ring assures a perfect seal, preventing pullouts. All components are reusable.

• Use with flexible metallic liquidtight conduit and Type B flexible nonmetallic liquidtight conduit
• Zinc-electroplated for added corrosion protection
• Noninsulated

Product Highlights

This straight liquidtight connector features a split gland-ring that ensures a tight seal and quick installation. It is suitable for hazardous, outdoor, and indoor locations.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 3412
• Country of Origin: China

Technical Specifications

• Size: 3 IN
• Type: Straight, uninsulated, liquidtight and Type B
• Brand: RACO
• Width: 4.750 in
• Finish: Zinc plated
• Height: 3.813 Inch
• Length: 4.75 Inch
• Material: Steel/Malleable Iron
• Trade Size: 3 Inch
• Insulation Type: Uninsulated
• Applications: Electrical
• Catalog Number: 3412
• Country of Origin: China
• Special Features: Zinc electro plated, patented split gland-ring assures perfect seal and quick installation, reusable components, sealing washer included, heavy duty locknut
• Standard: UL 514B
• RoHS Indicator: Yes
• UPC: 050169034125
• GTIN: 00050169034125
• Item Type: Straight, uninsulated, liquidtight and Type B
• Environmental Conditions: Wet Location
• ECCN: EAR99
• UNSPSC: 39121420
• Throat Type: Non-Insulated
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic/Non-Metallic Liquidtight Type B Conduit
• Connector Size: 5-35/64 Inch Dia x 3-5/8 Inch L
• Thread Size: 4 Inch-8 TPI
• Application: Hazardous Location, Outdoor/Indoor Location
• Thread Length: 1.046875
• Fitting Type: Connector
• Item Name: Liquidtight Straight Connector
• For Use With: Flexible Metallic/Non-Metallic Liquidtight Type B Conduit
• Connection Type: Threaded
• Manufacturer Name: Raco
• Manufacturer Part Number: 3412
• Item [Specifications]: Liquid-Tight Conduit Fitting
• Insulated [Specifications]: Non-Insulated
• Standards [Specifications]: CSA C22.2 No. 18 Certified, Standard 514B, UL Listed E195969
• Application [Specifications]: Commercial Fittings
• Mesh Length [Specifications]: No Strain Relief Mesh
• Conduit Size [Specifications]: 3"
• For Use With [Specifications]: Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
• Mesh Material [Specifications]: No Strain Relief Mesh
• Overall Width [Specifications]: 4 3/4 in
• Box Connection [Specifications]: 3 in MNPT
• Connector Type [Specifications]: Straight
• Overall Height [Specifications]: 3 13/16 in
• Overall Length [Specifications]: 4 3/4 in
• Connector Style [Specifications]: Straight
• For Conduit Type [Specifications]: Liquid Tight Conduit
• Style - Connector [Specifications]: Straight
• Conduit Trade Size [Specifications]: 3 in
• Hazardous Location [Specifications]: Yes
• Use With - Conduit [Specifications]: Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
• Conduit Fitting Type [Specifications]: Connector
• Indoor/Outdoor Usage [Specifications]: Indoor/Outdoor
• Connection Orientation [Specifications]: Straight
• External Grounding Lug [Specifications]: No
• Item - Conduit Fitting [Specifications]: Liquid Tight Conduit Fitting
• Color - Conduit Fitting [Specifications]: Gray
• Compatible Conduit Type [Specifications]: Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
• Conduit Fitting Material [Specifications]: Steel/Malleable Iron
• Hazardous Location Rating [Specifications]: Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2
• Compatible Knockout Trade Size [Specifications]: 3 in
• Conduit Type: Liquidtight
• EU RoHS Indicator: Yes
• Certified Listed: UL Listed CSA Certified
• Hazardous Rating(s): Class I, Division 2 Class II Division 1 & 2 Class III, Division 1 & 2
• Industry Standard(s): UL 514B
• RoHS Flag: No
