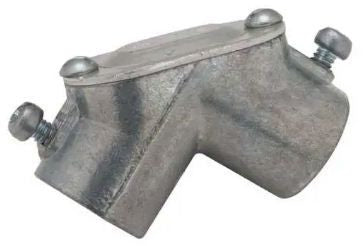

Raco 2752 1/2 Inch Die Cast Pull Elbow Fitting

Product Description

The RACO 2752 is a 1/2 inch die cast female-to-female pull elbow designed for use in electrical conduit systems. This fitting allows conductors to be pulled through a 90-degree change of direction while providing access for wire pulling via a removable cover. Electricians use pull elbows like this one in conduit runs where a standard sweep elbow would make wire pulling difficult or impossible. The die cast construction provides a durable, rigid housing suited for both exposed and protected indoor installations.

This pull elbow is used in commercial and residential electrical installations where threaded conduit systems require a directional change with wire-pull access. It is commonly installed in EMT or rigid conduit systems at junction points, in panel feeds, and in conduit runs through walls or ceilings. The female-to-female threaded configuration accepts standard 1/2 inch conduit on both entry and exit ports.

Key Features

• 1/2 inch trade size with female threaded ports on both ends
• Die cast construction for rigid, durable performance in conduit systems
• Pull elbow design provides access for wire pulling through 90-degree bends
• Removable cover allows conductor access without cutting into the conduit run
• Sold in a carton of 100 units for job-site or stocking quantities

Compatibility

Designed as an OEM-style replacement and standard-fit pull elbow for 1/2 inch threaded rigid or IMC conduit systems in commercial and residential electrical applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before working on conduit systems. Thread both conduit entries fully into the female ports and apply appropriate thread sealant or pipe dope rated for electrical conduit fittings. Do not overtighten the cover plate, as die cast threads can strip if excessive torque is applied.

Technical Specifications

• Trade Size: 1/2 inch
• Connection Type: Female to Female Threaded
• Construction: Die Cast
• Carton Quantity: 100 per carton
• Carton Dimensions (L x W x H): 19 inches x 10.63 inches x 4.13 inches
• Carton Weight: 21 pounds
• UPC: 05016902752

Standard Information

• Brand: RACO
• Manufacturer Part Number: 2752
