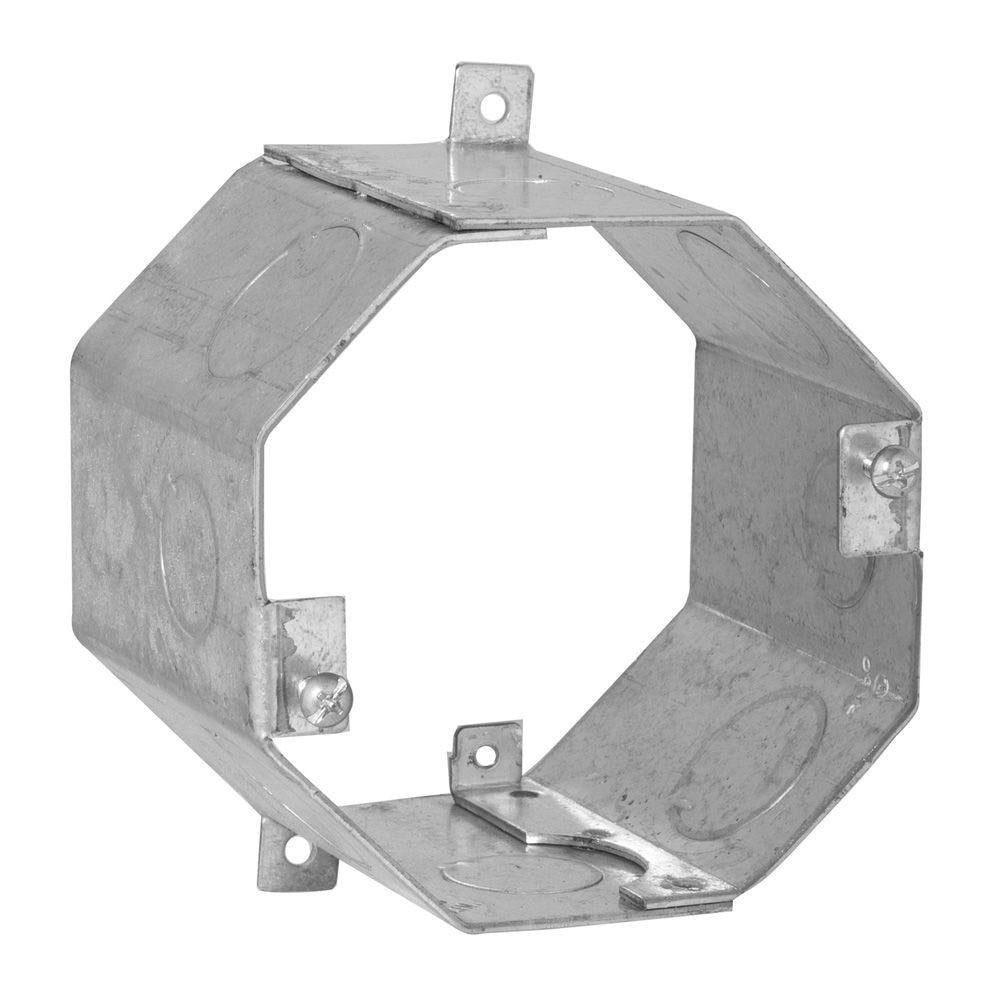

Raco 272 Concrete Ring, Welded, 3 in. Deep

Product Description

The RACO 272 is a welded concrete ring with a depth of 3 inches. It features a single row of 1/2 in. and 3/4 in. knockouts. Flat sides provide excellent contact for locknuts, and external ears are used to nail the concrete ring to the wood form. The top cover is removable for before-pour work.

• Single row of 1/2 in. and 3/4 in. knockouts
• Flat sides provide excellent contact for locknuts
• External ears are used to nail the concrete ring to the wood form

Product Highlights

Welded steel concrete ring with knockouts and external ears for secure mounting in concrete forms.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 272
• Country of Origin: Mexico

Technical Specifications

• Concrete Ring: Concrete Ring
• Color: Gray
• Depth: 3 in
• Width: 4 in
• Height: 4 in
• Box Type: Octagon
• Capacity: 37 cu. in.
• Material: Steel
• Standards: UL Listed
• Sub-Category: Mounting Accessories
• Brand: RACO
• Manufacturer: Hubbell Electrical Products
• Model / MPN: 272
• Catalog Number: 272
• Drawn or Welded: Welded
• Knockouts: 1/2 in;3/4 in
• Type: Concrete Ring
• UPC: 050169002728
• Wiring System: Conduit
• Cubic Capacity: 37 cu.in
• Fixture Lbs.: 50 lb
• Certified Listed: UL Listed
