Raco 270RAC Concrete Ring 2 in Deep (4 in Octagon)

Product Description

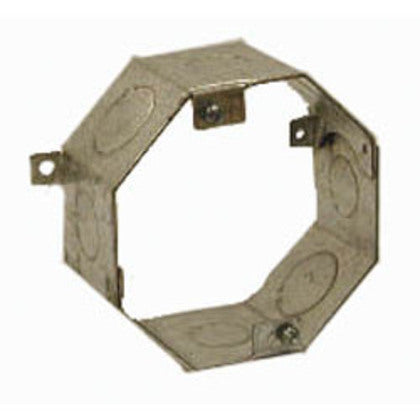

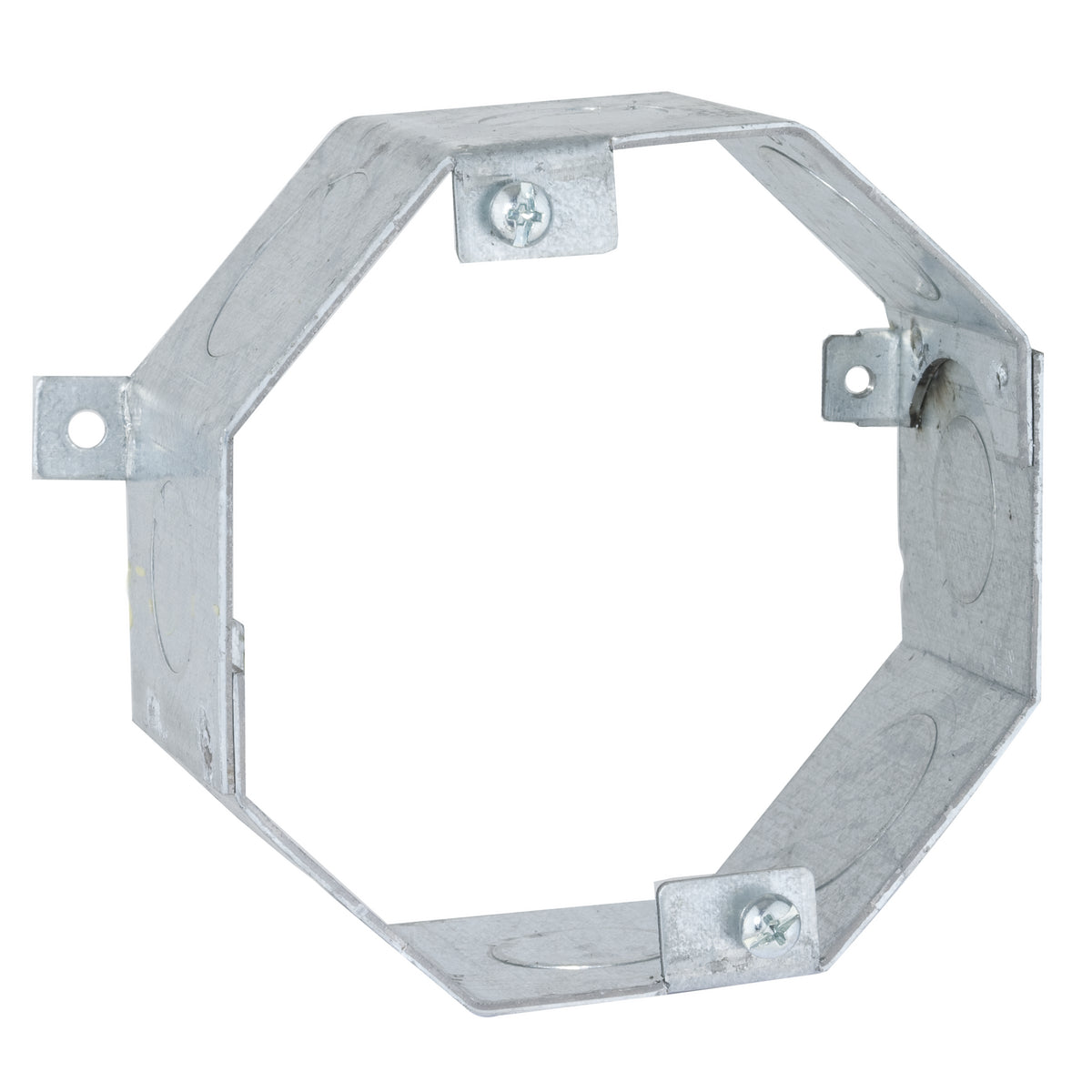

The Raco 270RAC concrete ring is a welded steel octagon ring for cast-in-place concrete electrical installations, providing 24.5 cubic inches of capacity and single-row 1/2 in and 3/4 in knockouts. The unit is 2 in deep and features flat sides for locknut contact, external ears for nailing to wood forms, a removable top cover for before-pour work, and waxed fixture ears to protect threads.

• Welded steel construction with 24.5 cu. in. capacity and single-row 1/2 in and 3/4 in knockouts
• 2 in depth; nominal dimensions approximately 4 in x 4 in x 2 in with flat sides for locknut contact
• External ears for nailing to wood forms, removable top cover, and waxed internal fixture ears; supports light fixtures up to 50 lb

Product Highlights

Welded steel octagon concrete ring, 2 in deep, 24.5 cu in capacity, single-row 1/2 and 3/4 in knockouts, removable cover, supports up to 50 lb

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 270RAC
• Country of Origin: Mexico

Technical Specifications

• Brand: RACO
• Manufacturer Part Number: 270RAC
• Type: Concrete ring
• Shape: Octagon
• Material: Steel
• Construction: Welded
• Size: 2 in
• Depth: 2 in
• Width: 4 in
• Height: 4 in
• Dimensions: 4 in x 4 in x 2 in
• Capacity: 24.5 cu in
• Knockouts: Single row 1/2 in and 3/4 in
• Number Of Knockouts: 8
• Fixture Support: Supports up to 50 lb
• Cover: Removable top cover
• Mounting: External ears for nailing to wood forms; internal fixture ears
• Fixture Ear Coating: Waxed
• Certifications: UL Listed; UL 514A; CSA C22.2
• Applicable Standards: ANSI; NEMA OS1
• UPC: 050169002704
• GTIN: 00050169002704
• Country of Origin: Mexico
• Weight: 0.532 lb
