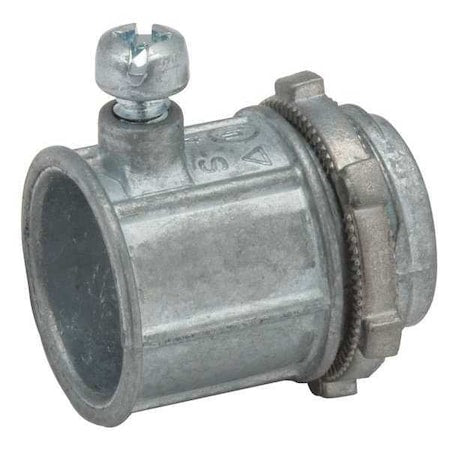

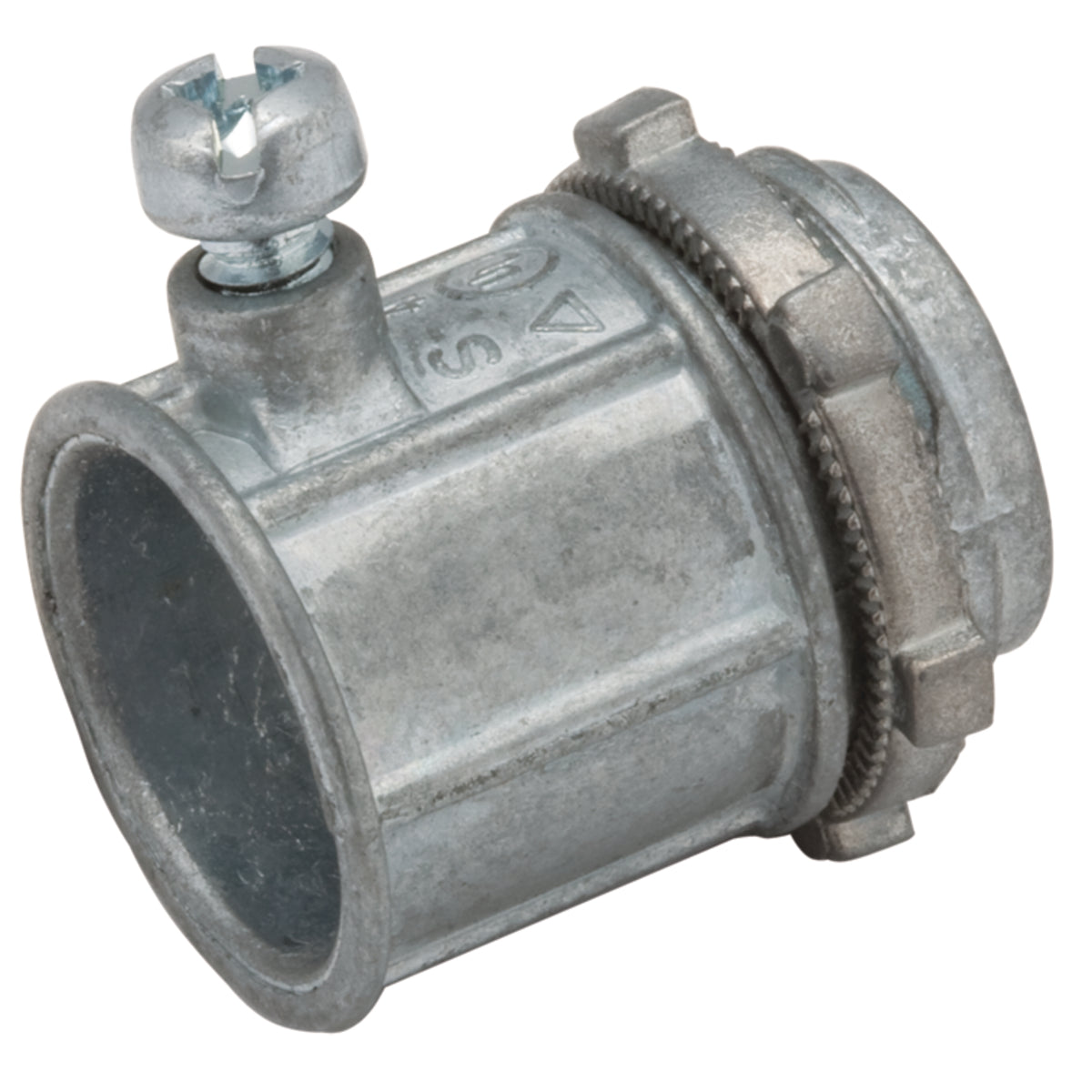

Raco 2602 1/2 inches EMT Set-Screw Connector, Uninsulated, Die Cast

Product Description

The RACO 2602 is a 1/2 in. EMT set-screw connector, uninsulated, and made from die-cast zinc. It is used to bond EMT conduit to a box or enclosure in dry locations. The rugged metallic construction ensures mechanical protection and provides concrete-tight connections when taped. Suitable for applications above 600V.

• Rugged metallic construction ensures mechanical protection
• Noninsulated
• UL Listed
• Available in trade sizes of 1/2 in. through 4 in.

Product Highlights

This RACO EMT set-screw connector provides a secure and reliable connection for EMT conduits, ensuring electrical safety and mechanical protection in various applications.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 2602
• Country of Origin: India

Technical Specifications

• Type: Set screw connector, uninsulated, EMT
• Brand: RACO
• Width: 0.930 in
• Height: 1.05 Inch
• Length: 1.156 Inch
• Material: Zinc Die Cast
• Trade Size: 1/2 Inch
• Applications: Electrical
• Installation: Set screw
• Connection Type: Set-Screw
• Inside Diameter: body .7187 , throat .609 IN
• Outside Diameter: body .9375 IN
• Conduit Type: EMT
• Connector Type: Set-Screw
• Fitting Type: Connectors
• Certified Listed: UL Listed
• Manufacturer Part Number: 2602
• Insulated: Non-Insulated
• Concrete Tight: Yes
• Compatible Conduit Type: EMT
• Conduit Fitting Type: Connector
• Overall Length: 1 5/32 in
