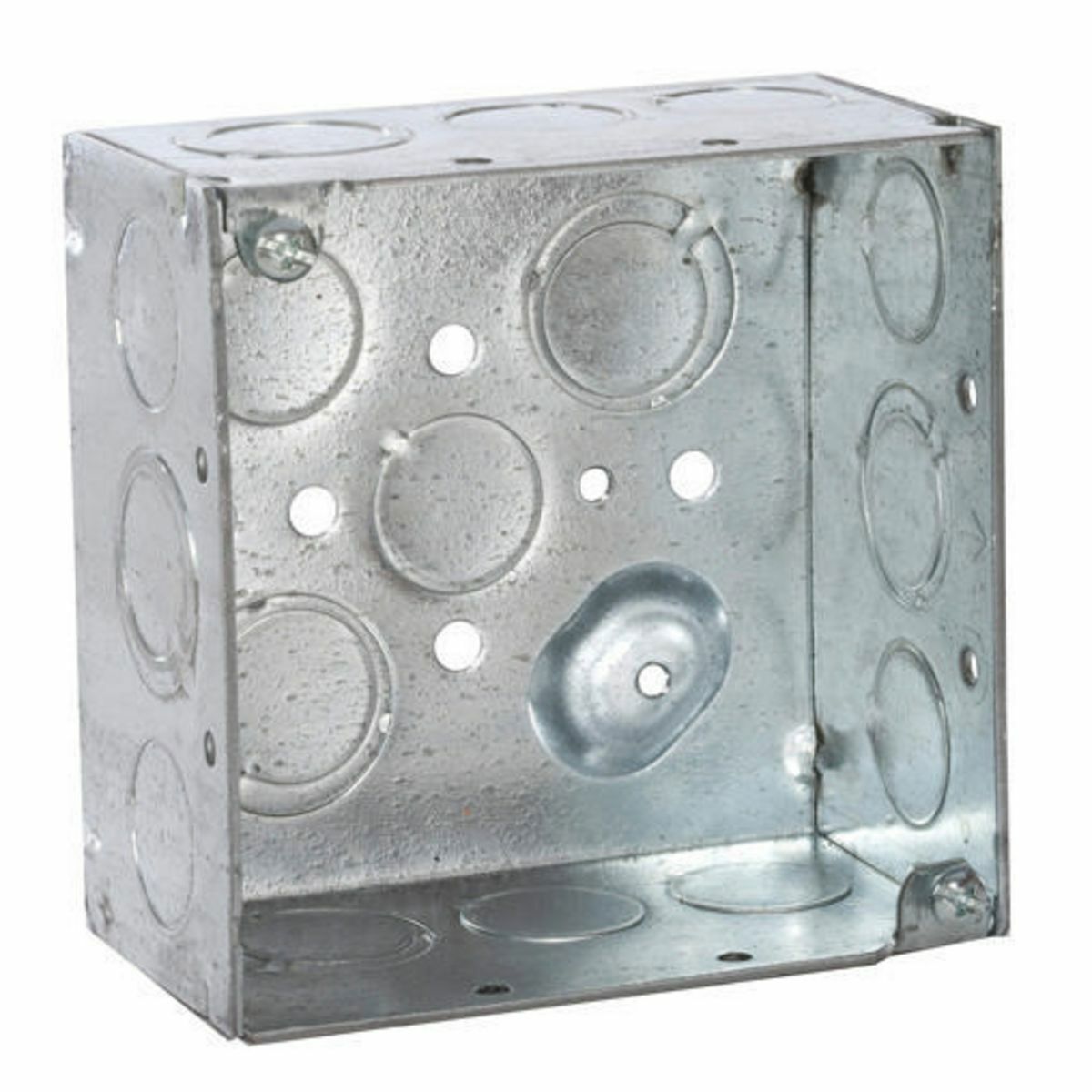

Raco 232CS 4 in. square welded box 2-1/8 in. deep

Product Description

Raco 232CS is a welded steel 4 in. square electrical box 2-1/8 in. deep designed to split multiple conductor runs and accommodate conduit entries. It includes elevated conduit knockouts and elevated side knockouts, a raised ground, 30.3 cu. in. capacity and a 600V rating. The box features TKO combination knockouts and combination Phillips/slotted screw heads and is acceptable for use in 2-hour fire rated walls.

• Welded steel construction, 4 in. square x 2-1/8 in. deep with 30.3 cu. in. capacity
• Elevated TKO knockouts (1/2 in; 1/2 - 3/4 in combination) on two sides for straight conduit runs
• Raised ground, 600V rating, combination Phillips/slotted screw heads, UL listed

Product Highlights

4 in. square welded steel box, 2-1/8 in. deep; 30.3 cu. in. capacity; elevated TKO knockouts; raised ground; 600V rated; UL listed; acceptable for 2-hour fire rated walls

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 232CS
• Country of Origin: United States

Technical Specifications

• Brand: Raco
• MPN: 232CS
• Manufacturer: Raco Manufacturing
• Catalog Number: 232CS
• Type: Electrical box
• Material: Steel
• Construction: Welded
• Size: 4 in. square
• Depth: 2-1/8 in.
• Width: 4 in.
• Height: 4 in.
• Capacity: 30.3 cu. in.
• Voltage Rating: 600V
• Knockouts: 1/2 in; 1/2 - 3/4 in combination (TKO); elevated on two sides
• Raised Ground: Yes
• Screw Type: Combination Phillips/slotted
• Color: Gray
• Certifications: UL listed
• Country of Origin: United States
• Fire Resistance: Acceptable for use in 2-hour fire rated walls
• Special Features: Elevated side knockouts; TKO knockouts allow installation flexibility
