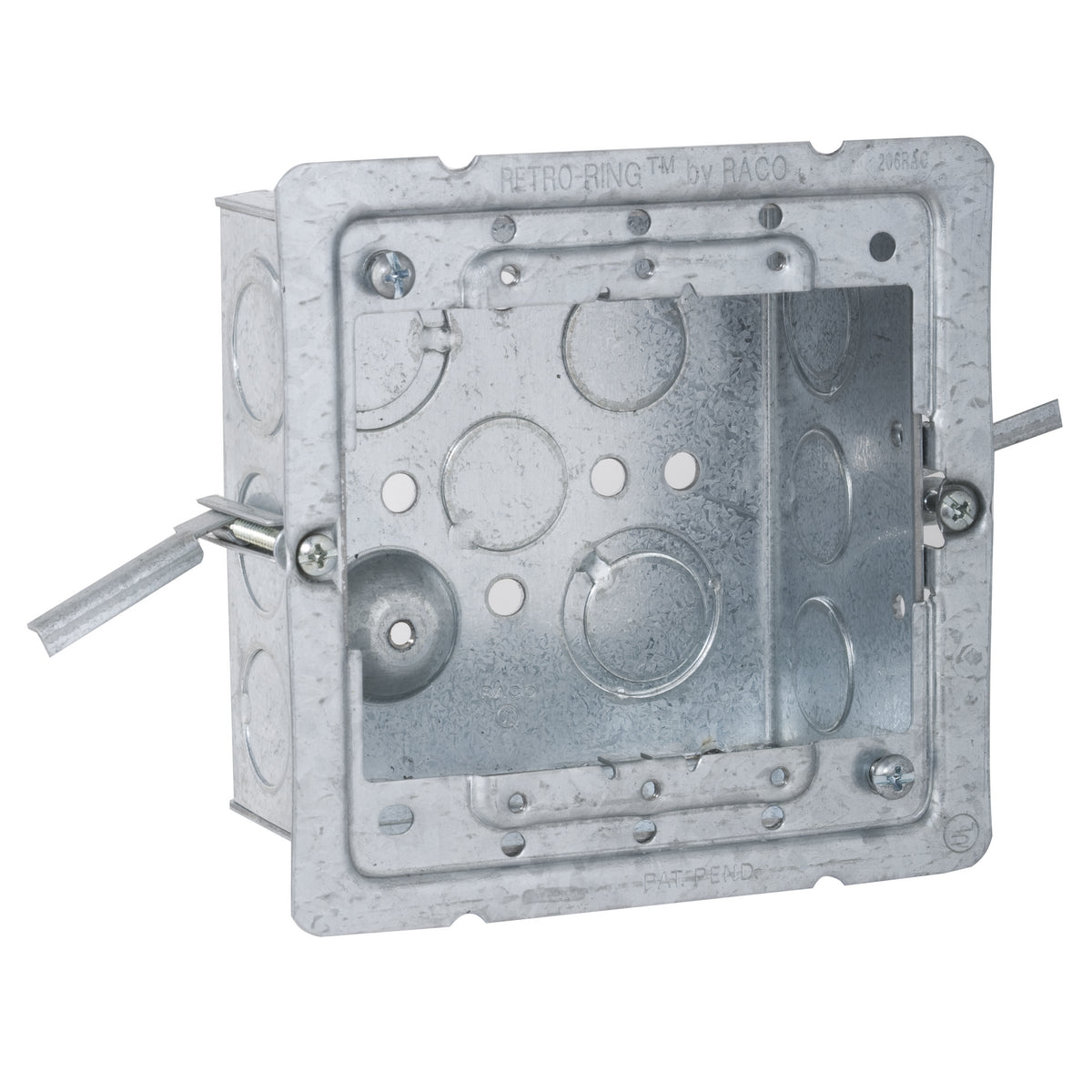

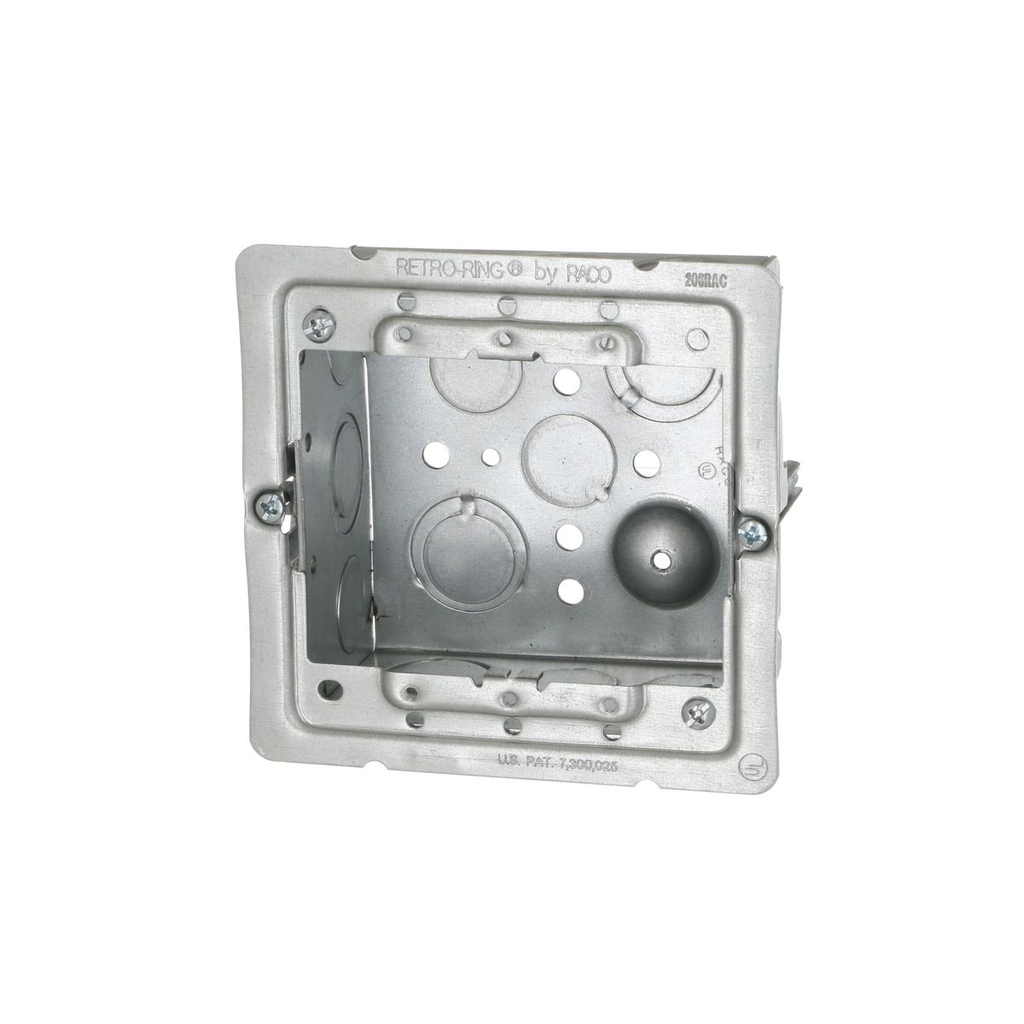

Raco 232-OW 4 inches Square Box, Welded, 2-1/8 inches Deep, (10) 1/2 inches KOs & (5) TKO's, Old Work

Product Description

The RACO 232-OW is a 4 in. square box designed for electrical applications. This welded steel box is 2-1/8 in. deep and features ten 1/2 in. knockouts and five TKO knockouts. It is suitable for old work installations and has a raised ground.

• Use in old work applications with mounting bracket
• Combination screw heads allow quick installation
• Welded construction

Product Highlights

This RACO square box is ideal for enclosing electrical wiring, switches, receptacles, or lighting fixtures in old work settings. It offers a robust and versatile solution for various electrical installations.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 232-OW
• Country of Origin: Mexico

Technical Specifications

• GTIN: 00050169502327
• Size: 2-1/8 IN
• Type: 4 IN square box
• Brand: RACO
• Depth: 2-1/8 Inch
• Width: 4.880 in
• Height: 4-3/4 Inch
• Length: 2.48 Inch
• Material: Steel
• Cable Entry: Knockouts for conduit
• Product UPC: 05016950232
• 12-Digit UPC: 050169502327
• Applications: Electrical
• Construction: Welded
• Country of Origin: Mexico
• Cubic Capacity: 30.3 CUIN
• Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
• Mounting: Plaster Ears
• Standard: UL Listed
• Item Type: Box
• Number of Knockouts: 17
• Knockout Location: (5) Bottom, (12) Sides
• Knockout Size: (2) 1/2 Inch Conduit Bottom, (1) Conduit Bottom, (2) (1/2 Inch - 3/4 Inch) Conduit Threaded Knockout Bottom, (8) 1/2 Inch Conduit Sides, (4) (1/2 Inch - 3/4 Inch) Conduit Threaded Knockout Sides
• Applicable Standard: ANSI, NEMA OS1
• Drawn or Welded: Welded
• Fire Resistance: Yes
• Wiring System: Conduit
• Raised Ground: Yes
• Knockout Diameter: 1/2 in
• Mounting Type: Screw On, Nail On
• Cubic Inches: 30.300 in³
• Special Features: Allows any depth 4" square box to be quickly and easily installed in old work applications; One or two devices mount directly to RETRO-RING®; 2-1/8" deep box for mounting GFCI or decora devices; Maximum allowable opening in 2-hour fire rated walls; works in 3/8" to 1-1/2" thick, wall or ceiling applications; use for low voltage or up to 250V circuitry; Template included for correct wall opening; oversized wall plate required
