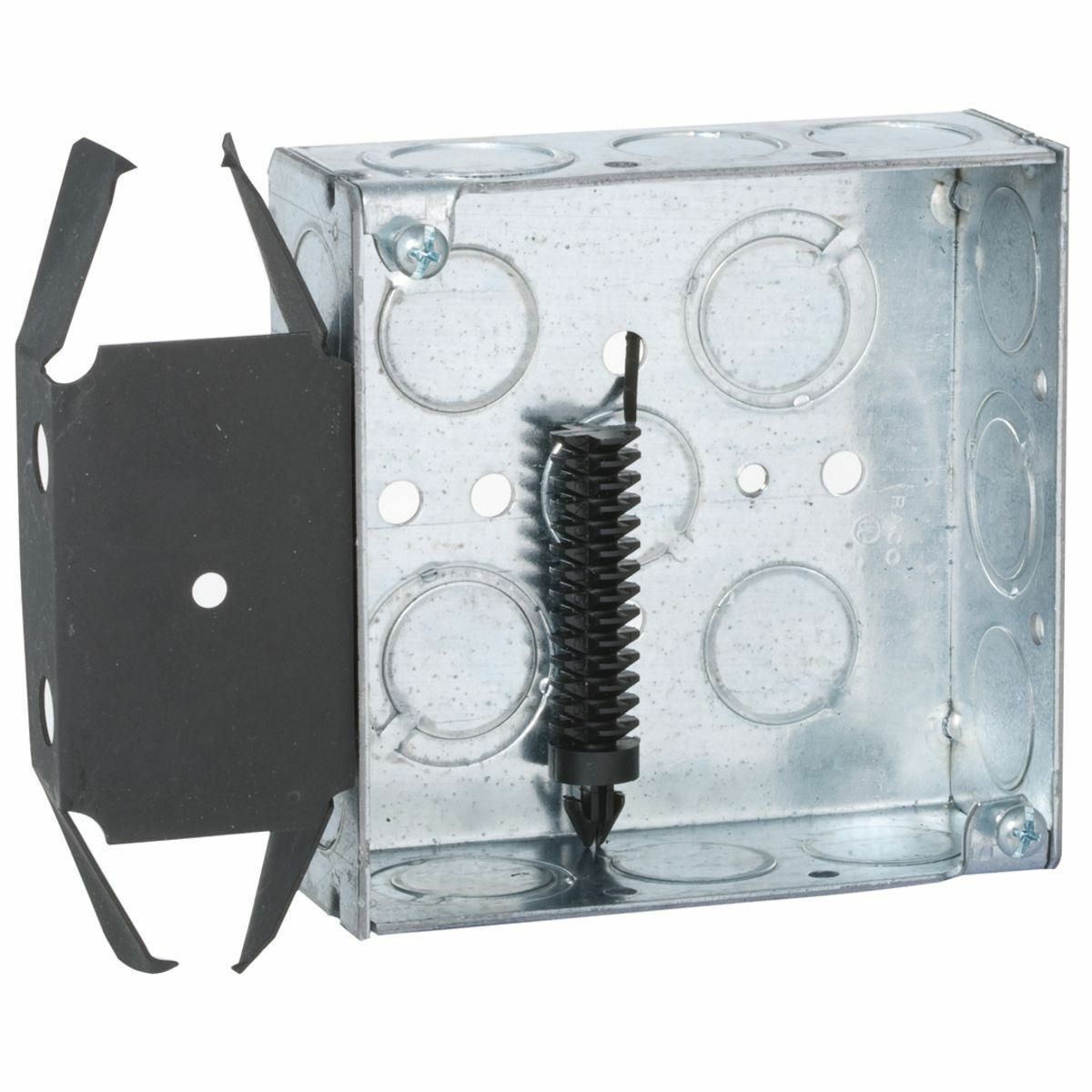

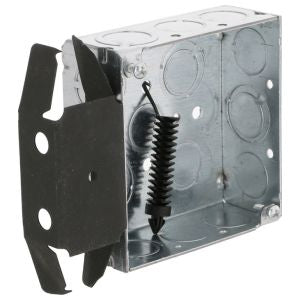

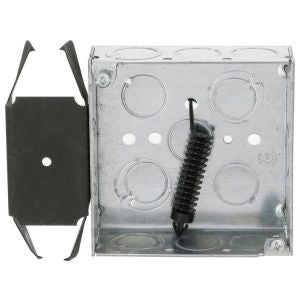

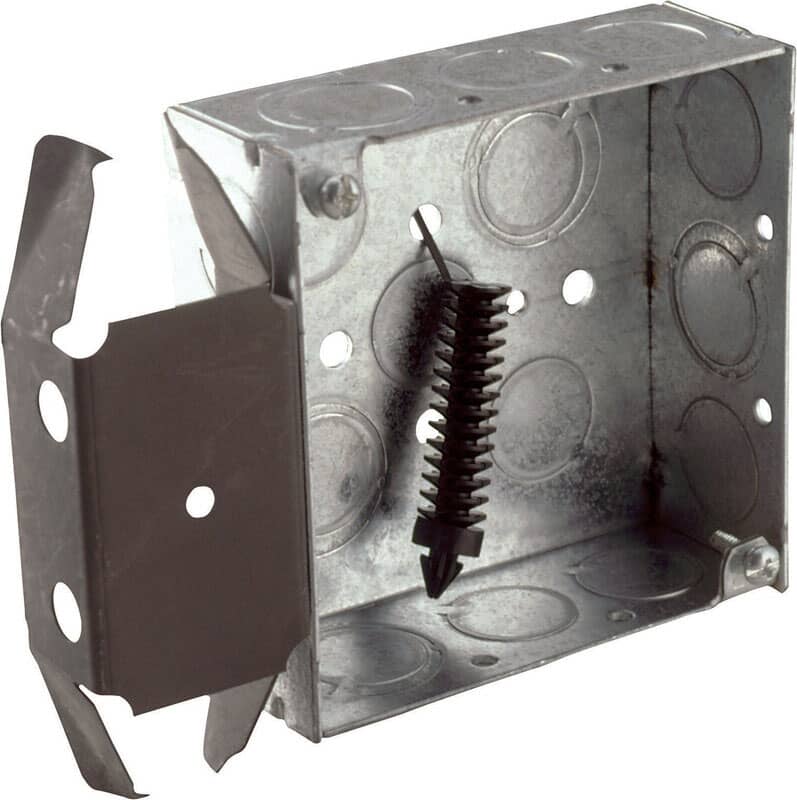

Raco 227 4 In. Square Bracketed Boxes, 1-1/2 In. Deep - Welded with Conduit KO's

Product Description

The RACO 227 is a 4 In. Square Bracketed Box, 1-1/2 In. Deep, welded with conduit knockouts for electrical applications. Features welded construction and patented TKO 1/2 in & 3/4 in eccentric knockouts suitable for use without a bonding jumper in circuits above or below 250 volts. Combination cover screw heads provide for faster mudring/cover installation.

• Welded construction
• Patented TKO 1/2 in & 3/4 in eccentric knockouts
• FM bracket mounts flat on side of stud and provides a rigid/secure box installation

Product Highlights

This steel square box is designed for splitting multiple conductor runs in various directions, ideal for bringing power to lighting fixtures, switches, or receptacles.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 227
• Country of Origin: United States

Technical Specifications

• Catalog Number: 227
• Brand: RACO
• Country of Origin: United States
• Made in USA: Yes
• Application: Electrical
• Cable Entry: Knockouts for conduit
• Color: Gray
• Construction: Welded
• Cubic Capacity: 21.0 CUIN
• Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
• Material: Steel
• Special Features: Patented TKO 1/2 in & 3/4 in eccentric knockouts (Per U.L. 514-A, suitable for use without a bonding jumper in circuits above or below 250 volts); combination cover screw heads provide for faster mudring/cover installation; FM bracket mounts flat on side of stud and provides a rigid/secure box installation
• Standard: UL Listed
• UPC: 050169002278
• GTIN: 00050169002278
• Item Type: Box
• Width: 5.625 Inch
• Depth: 1.5 IN
• Size: 4
• Capacity: 21 cu-in
• Height: 4 in
• Number of 3/4" Back Knockouts: 2
• Number of 3/4" Side Knockouts: 3
• Number of 1/2 In. Back Knockouts: 5
• Number of 1/2 In. Side Knockouts: 9
• Product Type: Electrical Box
• Mounting Type: Flush
• Shape: Squared
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, UL File No. E195978
• Finish: Pre-Galvanized
• Number of Knockouts: 14
• Includes: BOX-LOC Bracket
• Use With: Lighting Fixtures; Receptacles; Switches
• Bottom Knockouts: 1/2 in.
• Box Depth: 1-1/2 in.
• Bracket Type: BOX-LOC
• Side Knockouts: (3) TKO in; (6) 1/2 in
• With Knockouts: Yes
• Model: 227
• MPN: 227
• Item Length: 4 in
• Box Shape: Square
