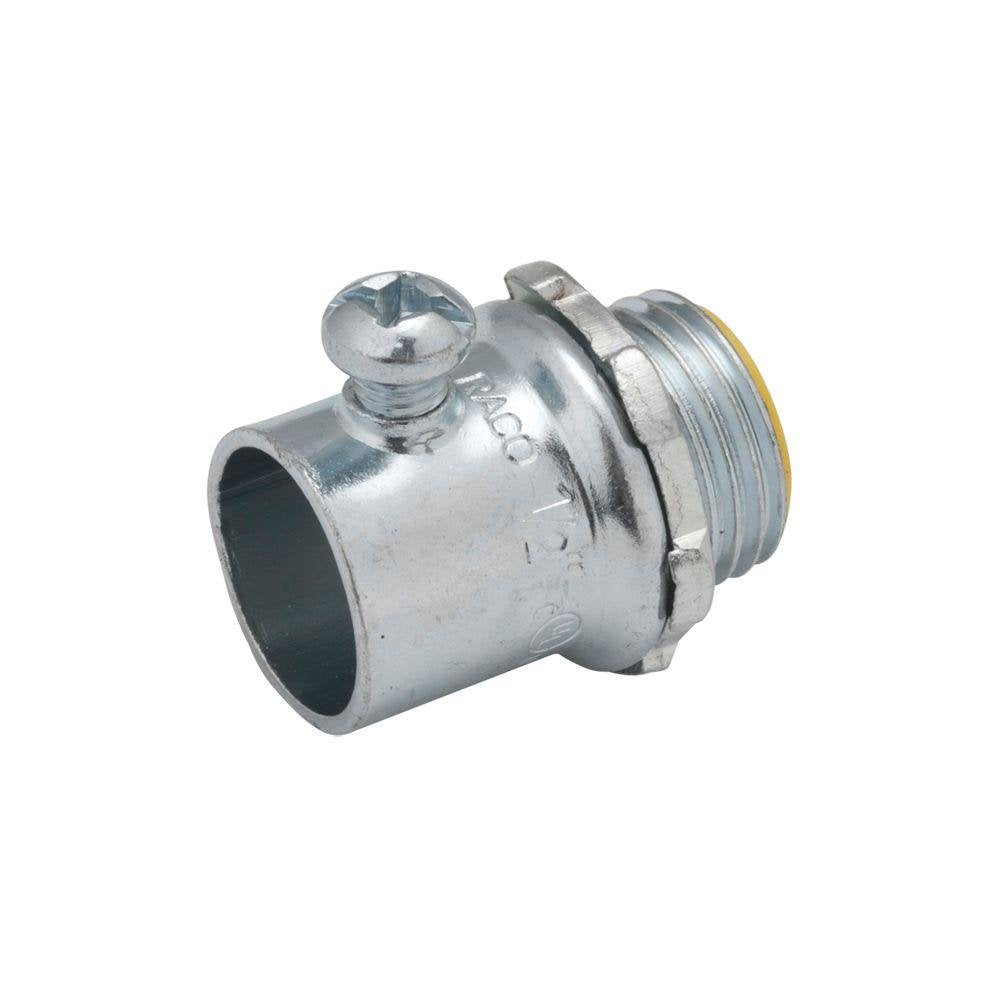

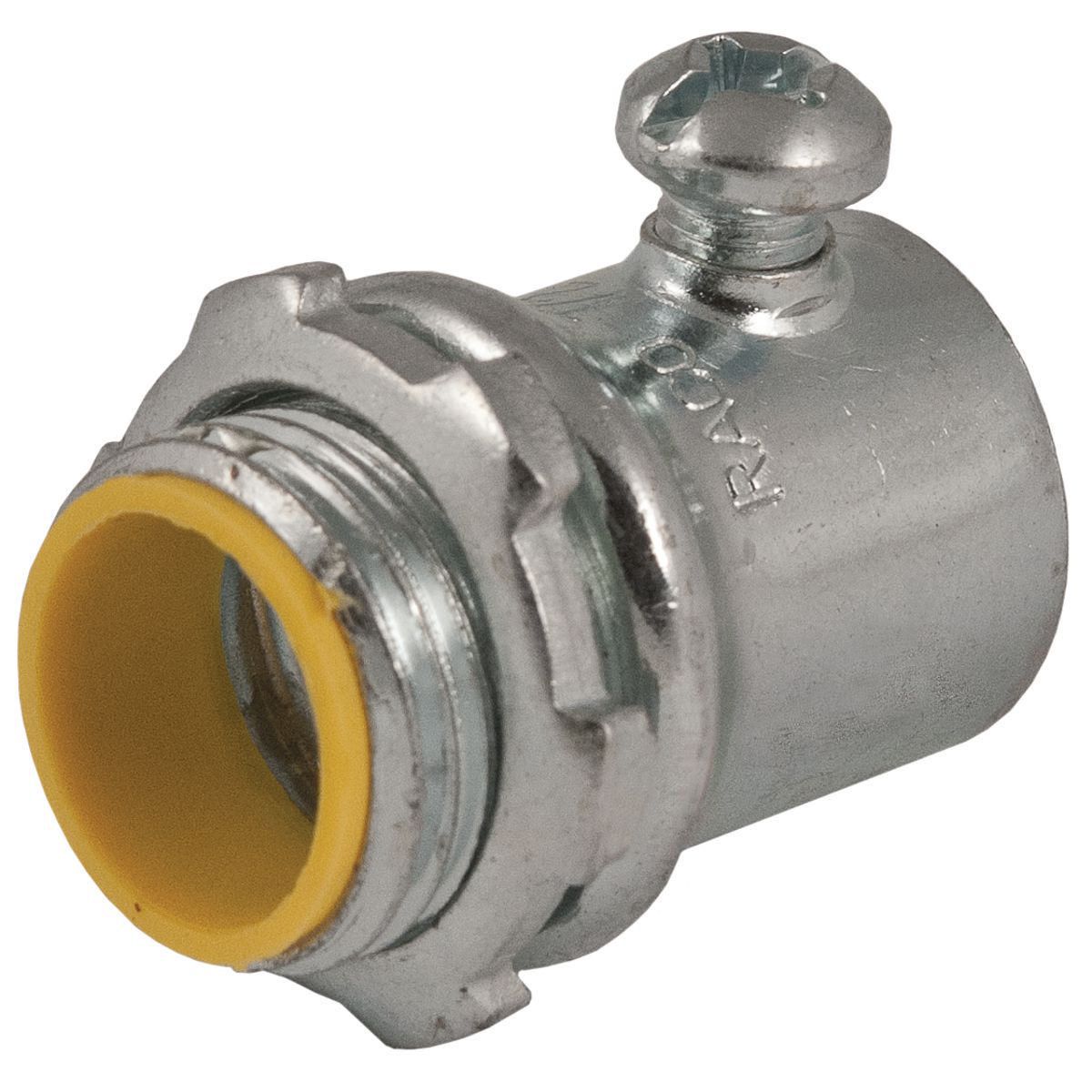

Raco 2125 1-1/4 inches EMT Set Screw Connector, Steel - Insulated

Product Description

The RACO 2125 is a 1-1/4" EMT set screw connector, insulated and constructed from steel. This connector is designed for joining EMT conduit to a box or enclosure. It provides a concrete-tight connection when taped and is suitable for applications above 600V.

• Steel construction ensures mechanical protection
• Zinc-electroplated for added corrosion protection
• Insulated
• Tri-head screws may be installed using slotted, Phillips, or Robertson head screwdriver

Product Highlights

This RACO EMT set screw connector features steel construction and zinc electroplating for corrosion protection. It is cULus listed and available in trade sizes of 1/2 in. through 4 in.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 2125
• Country of Origin: China

Technical Specifications

• Type: Set screw connector, insulated, EMT
• Brand: RACO
• Width: 2.100 in
• Height: 1.53 Inch
• Length: 2.27 Inch
• Material: Steel
• Sub Brand: RACO
• Trade Size: 1-1/4 Inch
• Product UPC: 05016902125
• Applications: Electrical
• Installation: Set screw
• Connector Type: Set-Screw
• Wall Thickness: 0.07 IN
• Connection Type: Set-Screw
• Insulation Type: Insulated
• Constructional Feature: Concrete-Tight, Corrosion Resistant
• Approval: UL 514-B, UL (Canada and US), CSA C22.2
• Used On: EMT Conduit
• Manufacturer: Hubbell Electrical Products
• Model / MPN: 2125
• Fitting Type: Connector
• Standards: CSA Certified, cULus 514B Certified
• Finish: Electroplated Zinc
• For Use With: EMT Conduit
• Item Name: EMT Set Screw Connector
• Manufacturer Name: Raco
• Insulated: Yes
• Connection: Set-Screw
• Application: Commercial Fittings
• Overall Length: 2-1/4 in
• For Conduit Type: EMT
• Conduit Fitting Type: Connector
• Catalog Number: 2125
• Industry Standard(s): UL 514B
• Throat Type: Insulated
• Thread Size: 1-1/4-11-1/2
• Thread Type: NPSM
• Rain-Tight: No
