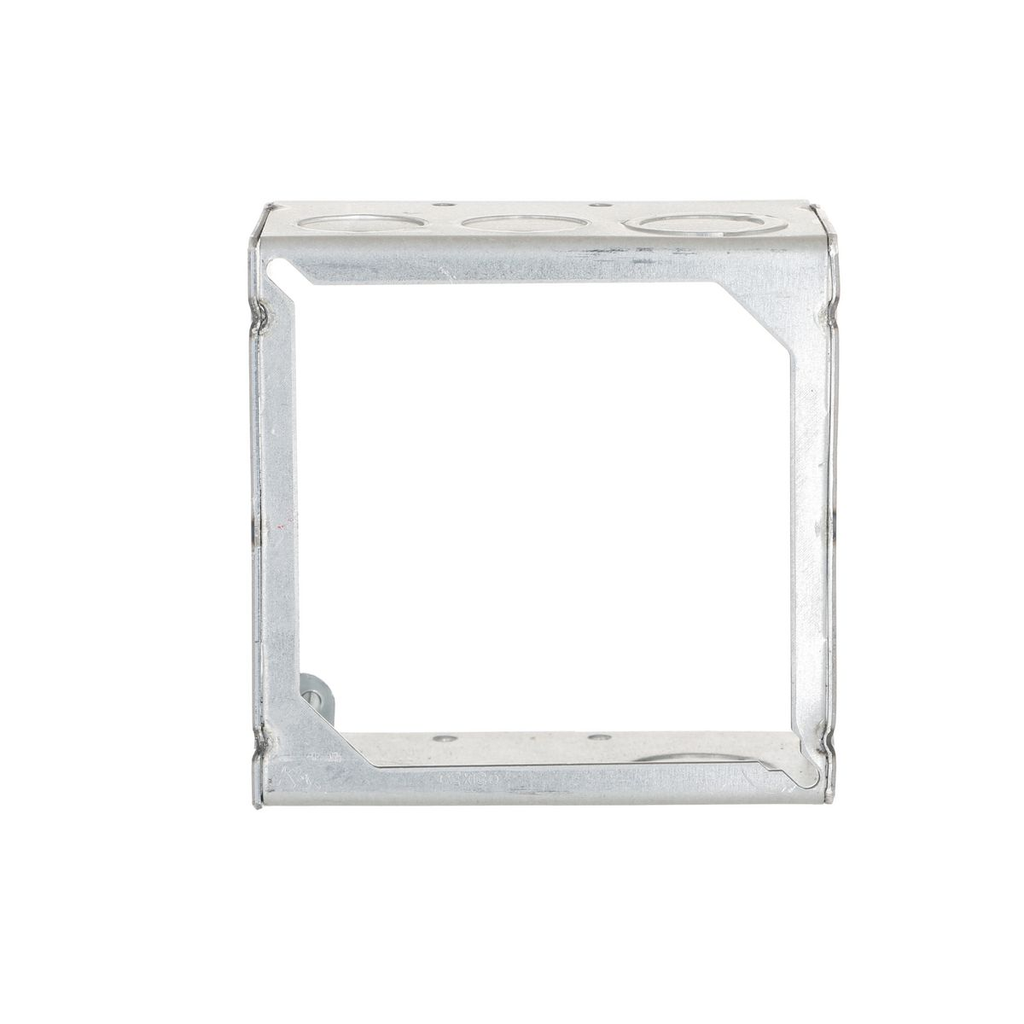

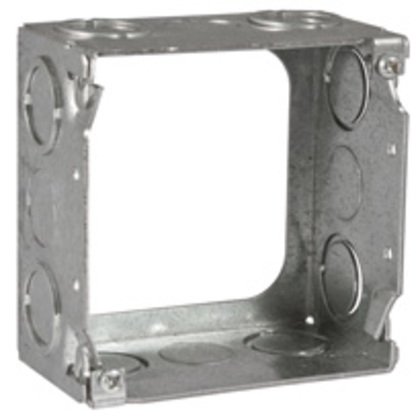

Raco 207 4 in. Square Extension Ring, Welded, 2-1/8 in. Deep, Six 1/2 and Six 3/4 in. KO's

Product Description

The RACO 207 is a 4 in. Square Extension Ring, welded, 2-1/8 in. deep, with six 1/2 in. and six 3/4 in. knockouts. Extension rings provide additional cubic capacity and may be used as an outlet box for surface conduit. It is constructed from 1/16 in. pre-galvanized steel.

• Combination screw heads allow quick installation
• Welded construction
• Six 1/2 in. knockouts and six 3/4 in. knockouts

Product Highlights

This extension ring features combination screw heads, welded construction, and multiple knockouts for versatile installation.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 207
• Country of Origin: Mexico

Technical Specifications

• Accessory Type: Box
• Bracket Type: No Bracket
• Catalog Number: 207
• Drawn or Welded: Welded
• Fire Resistance: Yes
• Knockouts: 1/2 in;3/4 in
• Material: Steel
• Size: 4 in
• Type: Extension Ring
• UPC: 050169002070
• Wiring System: Conduit
• Actual Depth: 2.188 in
• Cubic Capacity: 30.3 cu.in
• Depth: 2.125 in
• Height: 4 in
• Width: 4 in
• Brand: RACO
• Sub Brand: RACO
• 12-Digit UPC: 050169002070
• Construction: Drawn
• Finish: Galvanized
• Product UPC: 05016900207
• Shape: Square
• Length: 2.188 Inch
• Knockout Diameter: 1/2 in, 3/4 in
• Gangs: 2
