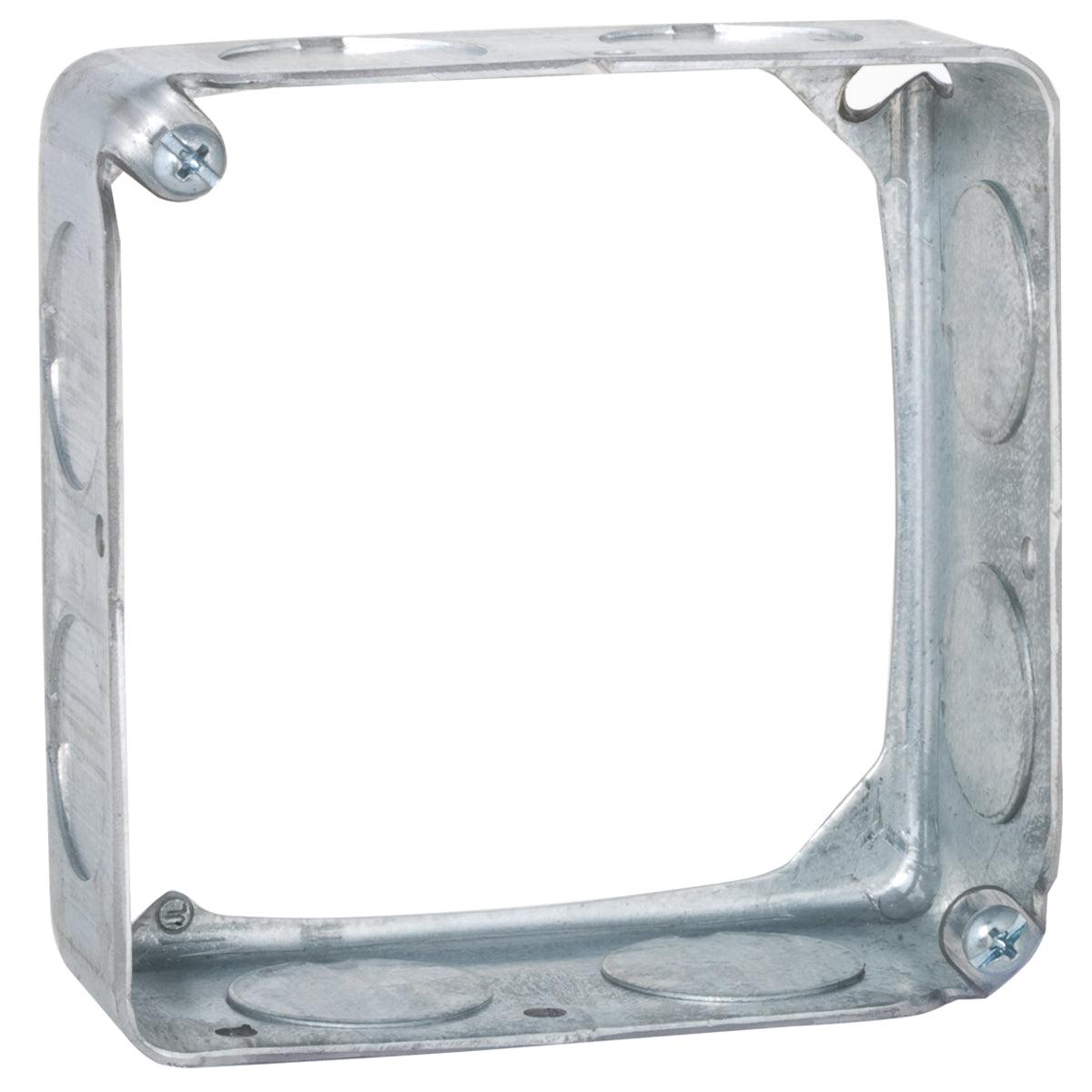

Raco 202 4 inches Square Extension Ring 1-1/2 inches Deep 3/4 inches KO

Product Description

The RACO 202 is a 4" square extension ring designed for electrical applications. It features knockouts for conduit and is constructed from steel. The ring has a cubic capacity of 22.5 CUIN and combination screw heads for faster installation. It is UL Listed and Made in USA.

• Knockouts for conduit
• Steel construction
• 22.5 CUIN cubic capacity
• Combination screw heads for faster installation

Product Highlights

This extension ring provides additional cubic capacity and may be used as an outlet box for surface conduit wiring systems.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 202
• Country of Origin: United States

Technical Specifications

• Catalog Number: 202
• Brand: RACO
• Country of Origin: United States
• Made in USA: Yes
• Application: Electrical
• Cable Entry: Knockouts for conduit
• Construction: Drawn
• Cubic Capacity: 22.5 CUIN
• Knockouts: 3/4 in
• Material: 0.0625 Inch Pre-Galvanized Steel
• Special Features: Combination screw heads provide for faster installation
• Standard: UL Listed
• UPC: 050169002025
• GTIN: 00050169002025
• Item Type: Extension Ring
• Size: 4 in
• Type: Square Box Extension Ring
• Number of Knockouts: 8
• Knockout Size: (8) 3/4 Inch Conduit Sides
• Approval: UL 514A, CSA C22.2
• Applicable Standard: ANSI, NEMA OS1
• Nominal Depth: 1-1/2"
• Nominal Width: 4"
• Nominal Length: 4"
• Number of 3/4" Side Knockouts: 8
• Number of 1/2 In. Back Knockouts: 0
• Number of 1/2 In. Side Knockouts: 0
• Wiring System: Conduit
• Drawn or Welded: Drawn
• Fire Resistance: Yes
