RACO 192 Square Box, 4 Inch Square, 1-1/2 Inch Deep

Product Description

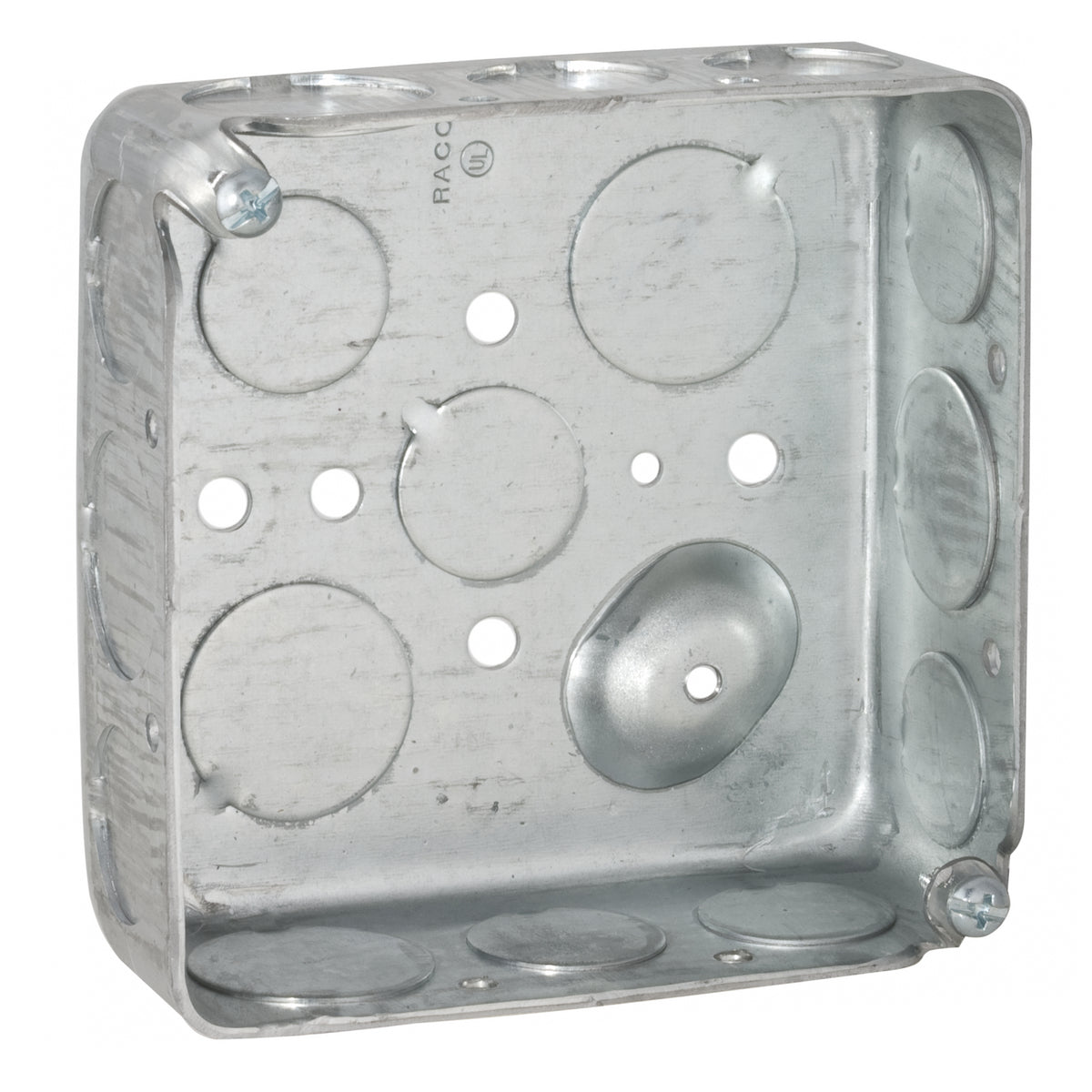

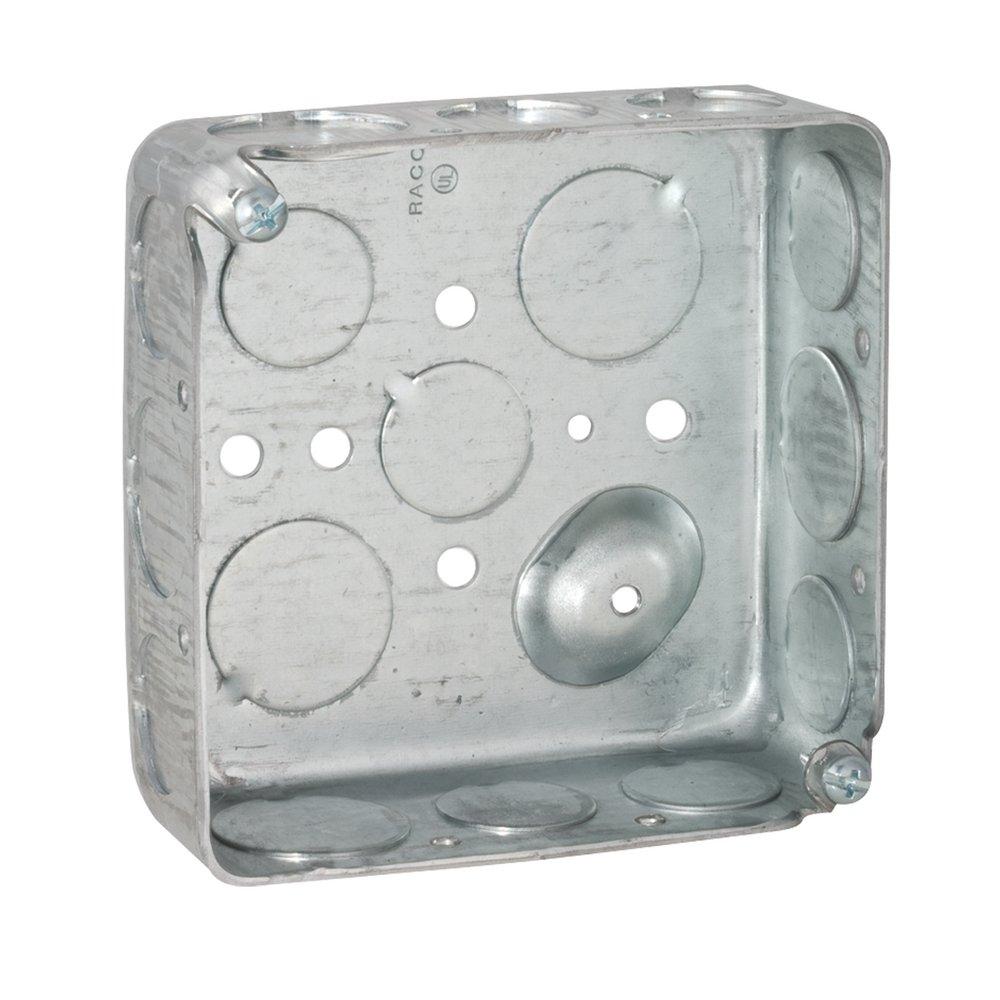

The RACO brand offers the 192 square box. This box measures four inches in width and four inches in height, with a depth of one and a half inches. Made from steel, it provides a durable solution for housing electrical connections. The box has sixteen knockouts, which accommodate both half inch and three quarter inch conduits. It is suitable for surface mount applications, making it a flexible choice for various electrical tasks.

• Constructed from pre-galvanized steel for durability.
• Designed with sixteen knockouts for easy cable entry.
• UL listed for safety compliance.

Product Highlights

This square box is ideal for exposed work applications. Its raised ground features provide effective grounding. The combination screw heads facilitate quick installation, which saves time during setup.

Product Information

Standard Information

• Type: Raised Ground
• Material: Steel

Technical Specifications

• Dimensions: 4 inches H x 4 inches W x 1.5 inches D
• Capacity: 21 cu-in
• Knockouts: 16 (8 half inch, 4 three quarter inch on the side; 2 half inch, 2 three quarter inch on the bottom)
• Finish: Pre-Galvanized
