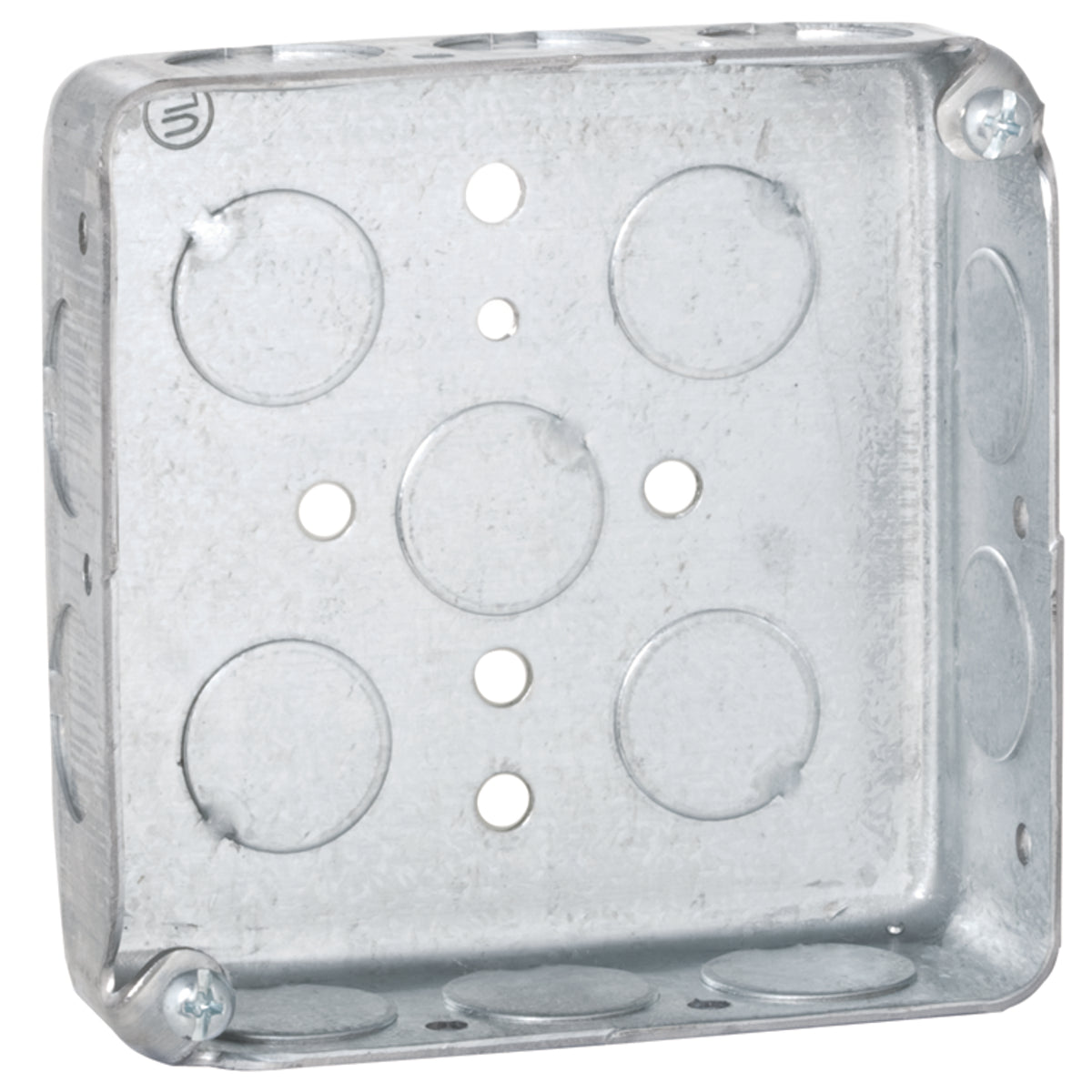

Raco 185 box, 4 sq, drawn 1-1/4 deep, 1/2 ko

Product Description

The RACO 185 is a square box designed to enclose electrical wiring, switches, receptacles, or lighting fixtures. Constructed from pre-galvanized steel, it features fifteen 1/2 in. knockouts and combination screw heads for quick installation. It is ideal for exposed work applications.

• Ideal for exposed work applications
• Combination screw heads allow quick installation
• Drawn construction

Product Highlights

This square box is UL Listed and acceptable in 2-hour fire-rated walls, with a capacity of 18 cu. in.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 185
• Country of Origin: USA

Technical Specifications

• Item [Specifications]: Electrical Box
• Product Type [Specifications]: Box,4 Sq,Drawn 1-1/4 Deep,1/2 Ko
• Bracket Type: No Bracket
• Catalog Number: 185
• Drawn or Welded: Drawn
• Fire Resistance: Yes
• Knockouts: 1/2 in
• Material: Steel
• Size: 4 in
• Type: Box
• Wiring System: Conduit
• Actual Depth: 1.313 in
• Cubic Capacity: 18 cu.in
• Depth: 1.25 in
• Height: 4 in
• Raised Ground: No
• Width: 4 in
• Certified Listed: UL Listed
• Brand: Hubbell-Raco
• Part Number #: 185
• Knockout Size: 1/2 in
• Number of Knockouts: 15
• Applications: Electrical
• Cable Entry: Knockouts for conduit
• Number of Gangs: 2 Gang
• Construction: Drawn
• Shape: Square
• Length: 1.313 Inch
• Prop 65: No
• Country of Origin: USA
• Knockout Diameter: 1/2 in
• Mounting: Screw On, Nail On
• Cubic Inches: 18 in
• With Knockouts: Yes
• Bottom Knockouts: 1/2 in.
• Box Depth: 1-1/4 in.
• Box Shape: Square
• Side Knockouts: 1/2 (10)
• Use With: Conduit
