Raco 1763 emt offset connector 3/4 in di

Product Description

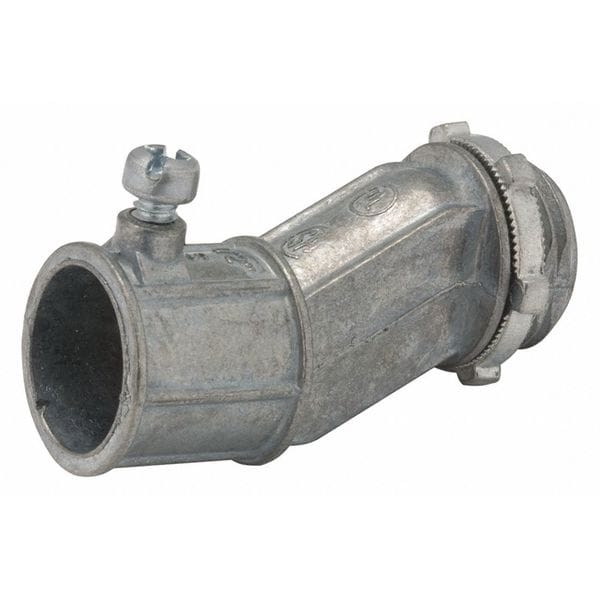

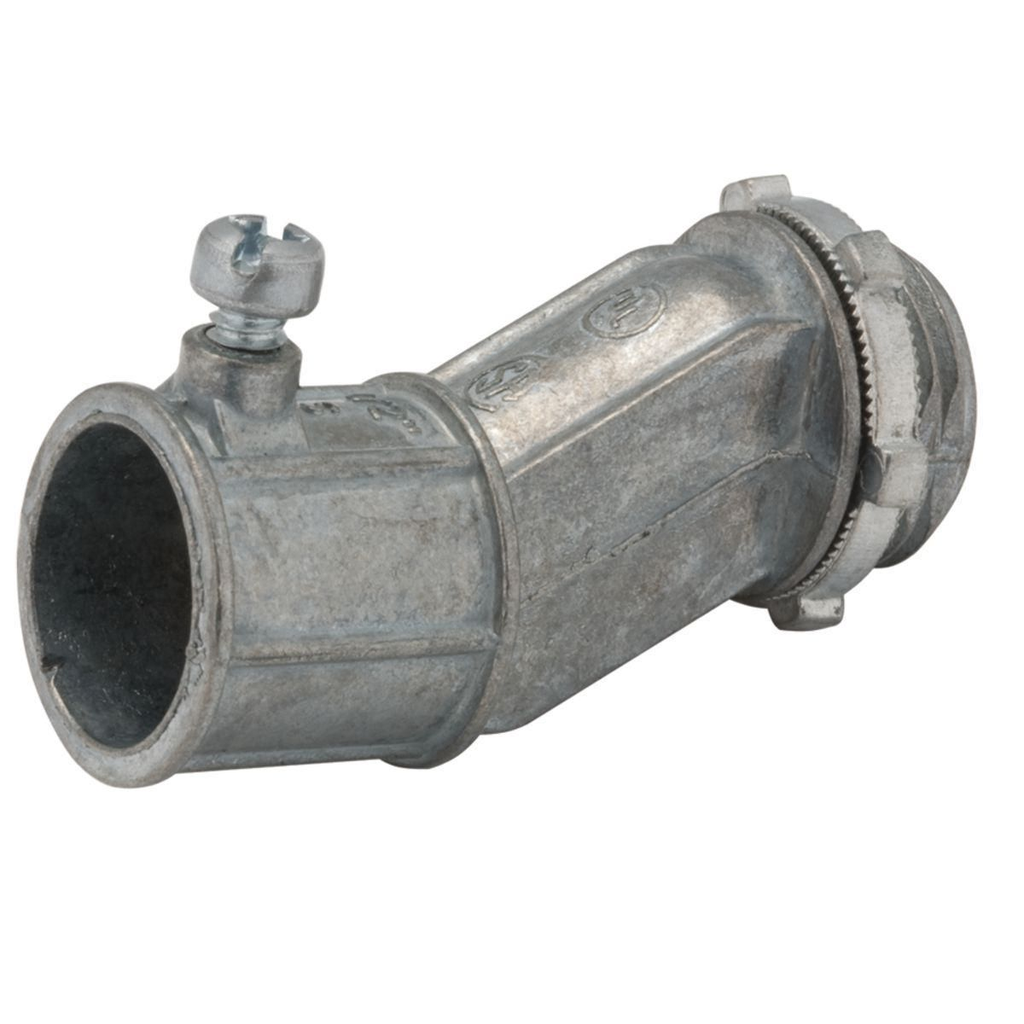

The RACO 1763 EMT Offset Connector is a 3/4 inch DI fitting. Rugged metallic construction ensures mechanical protection. It is UL Listed and CSA certified. Available in trade sizes of 1/2 in. through 4 in.

• Rugged metallic construction ensures mechanical protection
• UL Listed
• CSA

Product Highlights

This offset connector is suitable for electrical applications and provides a secure, concrete-tight connection when taped.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 1763
• Country of Origin: India

Technical Specifications

• Type: Connector, offset, EMT
• Brand: RACO
• Color: Silver
• Width: 1.750 in
• Height: 2 Inch
• Length: 3.016 Inch
• Material: Zinc Die Cast
• Sub Brand: RACO
• Trade Size: 3/4 Inch
• Product UPC: 05016901763
• 12-Digit UPC: 050169017630
• Applications: Electrical
• Installation: Set screw
• Connection Type: Set-Screw
• Inside Diameter: 0.9375 in body, 0.859 in throat
• Outside Diameter: 1.031 IN body
• Country of Origin: India
• Catalog Number: 1763
• Conduit Type: EMT
• Connector Type: Set-Screw
• Fitting Type: Connectors
• Dimensions: 3.016 in x 1.75 in x 2 in
• Certified Listed: UL Listed CSA Certified
• Contact Material: Zinc
• Insulation Material: Non-Insulated
• Terminal: Screw Terminal
• Finish: Plain
• Item: EMT
• Standards: UL Listed,CSA Certified
• ECCN: EAR99
• UNSPSC: 39131707
