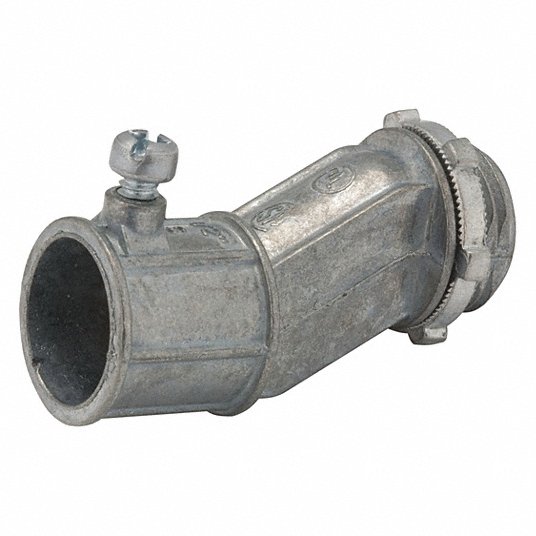

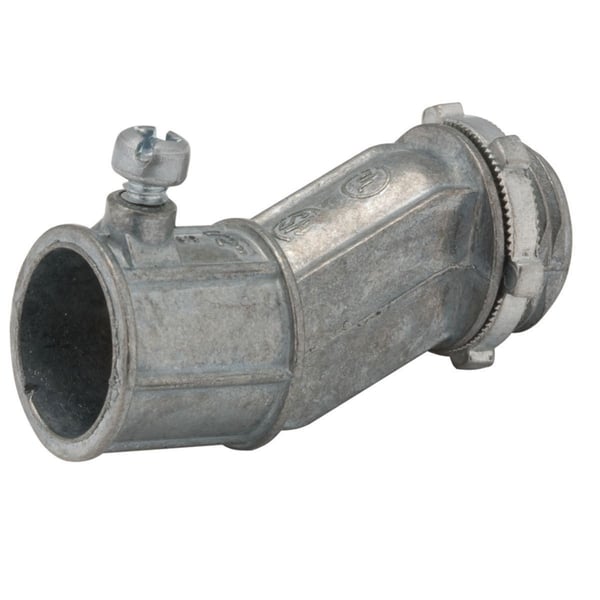

Raco 1762 emt offset connector 1/2 in

Product Description

The RACO 1762 is used in dry locations to bond EMT conduit to a box or enclosure with RACO® offset connectors. It provides concrete-tight connections when taped and is suitable for applications above 600V. Rugged metallic construction ensures mechanical protection.

• Used in dry locations, bond EMT conduit to a box or enclosure with RACO® offset connectors.
• Provides concrete-tight connections when taped.
• Suitable for applications above 600V.

Product Highlights

This offset connector is UL Listed and CSA certified, with trade sizes from 1/2 in. through 4 in.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 1762
• Country of Origin: India

Technical Specifications

• Catalog Number: 1762
• Conduit Type: EMT
• Connector Type: Set-Screw
• Fitting Type: Connectors
• Material: Die Cast Zinc
• UPC: 050169017623
• Height: 1.32 in
• Length: 2.094 in
• Trade Size: 1/2 in
• Width: 1.04 in
• Suitable For Use With: EMT Conduit
• Type: Non-Insulated Offset
• Application: Used in dry locations to bond EMT conduit to a box or enclosure and electrical applications
• Standard & Approvals: UL File No. E195969, CSA C22.2 No. 18
• Insulation: Non-Insulated
• Overall Length: 2.094 in
• Finish: Zinc Plated
• Standards: UL Listed,CSA Certified
