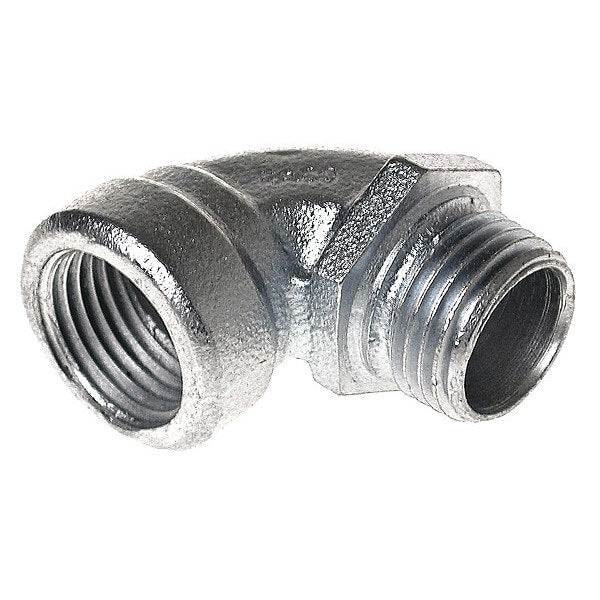

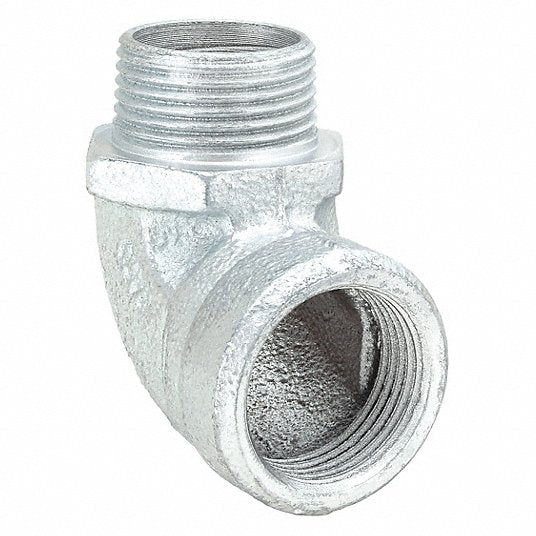

Raco 1722 1/2 in. 90 Degree Rigid/IMC Short Elbow

Product Description

The RACO 1722 is a 1/2 in. 90 Degree Rigid/IMC Short Elbow with malleable iron construction ensuring mechanical protection for the raceway. All components are zinc electroplated for corrosion protection. Short elbows are ideal for tight locations, joining two pieces of threaded RMC or IMC conduit at a 90° angle to change the direction of the run.

• All malleable iron construction ensures mechanical protection for the raceway
• All components are zinc electroplated for corrosion protection
• Additional sizes available

Product Highlights

The RACO 1722 short elbows are smaller than standard elbows and are ideal for tight locations.

Product Information

Standard Information

• Brand: RACO
• Manufacturer Part Number: 1722
• Country of Origin: China

Technical Specifications

• Catalog Number: 1722
• Conduit Type: Rigid/IMC
• EU RoHS Indicator: Yes
• Fitting Type: Elbows
• Material: Malleable Iron
• UPC: 050169017227
• Height: 1.75 in
• Length: 2.072 in
• Trade Size: 1/2 in
• Width: 1.079 in
• Certified Listed: UL Listed
• Industry Standard(s): UL 514B
• Brand: RACO
• Elbow Angle: 90
• Overall Length: 2-1/16 in
• Overall Height: 1-3/4 in
• Overall Width: 1-1/16 in
• Finish: Plain
• Compatible Conduit Type: RMC
• Thread Size: 1/2"-14
• Thread Type: NPT
• Thread Gender: Male to Female
• Standards: UL 514B
• Manufacturer Part Number: 1722
• Item: IMC
• Conduit Fitting Type: 90 Deg Elbow
• Connection Type: Threaded
• For Use With: Threaded RMC
• For Conduit Type: RMC, IMC
• Includes: Clamp
• Application: Commercial Fittings
• Insulated: No
• Connector Type: 90 Degrees
• Features: All malleable iron construction ensures mechanical protection for the raceway; All components are zinc electroplated for corrosion protection; Additional sizes available
• Connection Orientation: 90 Degrees
• Conduit Fitting Material: Malleable Iron
• Height (In.): 1-3/4 in
• Compatible Conduit Trade Size: 1/2 in
• Outside Diameter: 1.07 in
• MPN: 1722
• Country of Origin: United States
