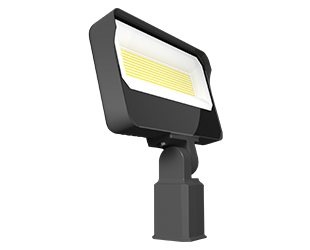

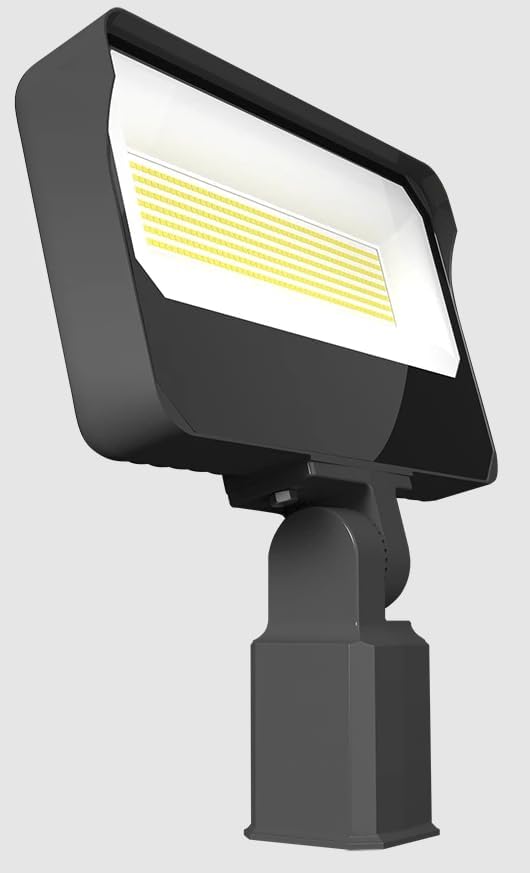

Rab X34XXL/RGB X34 Field-Adjustable Floodlight 160W

Product Description

The RAB X34XXL/RGB is a field-adjustable, general-purpose floodlight offering output up to 24,000 lumens. This 160W floodlight features a 100,000-hour LED lifespan and is IP65 rated for wet locations. It is compatible with the Lightcloud Blue control system, offering tunable white light and over 16 million colors.

• 100,000-Hour LED lifespan
• IP65 Rated
• 5-Year, limited warranty

Product Highlights

The X34 series floodlights are DLC listed, UL listed for wet locations and RoHS-compliant. Designed for general-purpose applications with a wide 7H x 7V NEMA distribution.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X34XXL/RGB
• Country of Origin: Cambodia

Technical Specifications

• Product Type: Floodlight
• Input Wattage: 160W
• Lumens: 19,200lm
• Lumens (Measured): 11,672lm @ 6500K; 19,347lm @ 2700K; 19,637lm @ 3000K; 20,242lm @ 4000K; 20,529lm @ 5000K
• Efficacy: 120lm/W
• L70 Lifespan: 100,000-Hour LED lifespan based on IESlm-70 results
• THD: <20%
• Power Factor: >0.9
• Dimmable: Yes, via the Lightcloud Blue mobile app and devices.
• Input Voltage: 120-277V
• Operating Frequency: 60 Hz
• Input Current @ 120V (mA): 1,340mA
• Input Current @ 208V (mA): 770mA
• Input Current @ 240V (mA): 670mA
• Input Current @ 277V (mA): 580mA
• Operating Temperature: -40°F to 104°F (-40°C to 40°C)
• Flicker: <30%
• Surge Protection: 2 kV
• Beam Angle: 105X90°
• Color Temperature: Default: 3000K, Adjustable using the Lightcloud Blue mobile app, Tunable White 2200K - 6500K, 16+ million RGB colors
• Color Accuracy (CRI): 80 CRI
• R9 Value: High color performance with R9 no greater than 5
• Color Consistency: <5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Mounting: Slipfitter/Trunnion
• Shape: Square
• Finish: Bronze
• Enclosure Material: Metal
• Lens: Glass
• Listings: UL Listed, UL Recognized
• UL Listed: Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
• Environment: Suitable for use indoors and outdoors in dry, damp, or wet environments.
• Fixture Rating: Suitable for use in enclosed fixtures. Suitable for use in open fixtures.
• IP Rating: IP65
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• California Title 20 Compliant: No
• California Title 24 JA8 Compliant: No
• California Energy Commission (CEC) Status: Lawful for Sales in California
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• Brand: RAB Lighting
• Material: Aluminum
• Style: Modern
• Light fixture form: Floodlight
• Room Type: Outdoor
• Product Dimensions: 12.25"L x 4"W x 14"H
• Specific Uses For Product: Outdoor
• Indoor/Outdoor Usage: Outdoor
• Power Source: Hardwired
• Installation Type: Surface Mount
• Special Feature: Dimmable
• Control Method: App
• Light Source Type: LED
• Finish Type: Powder Coated
• Shade Material: Glass
• Number of Light Sources: 1
• Voltage: 120-277 Volts
• Light Color: Cool White
• Included Components: Fixture
• Warranty Type: Limited
• Lighting Method: Adjustable
• Specification Met: DLC, RoHS, UL
• Number of Items: 1
• Wattage: 160 watts
• Unit Count: 1.0 Count
• Water Resistance Level: Waterproof
• Brightness: 20813 lumen
• Efficiency: High Efficiency
• Mounting Type: Slipfitter Mount
• Fixture Type: Non Removable
• Assembly Required: No
• Manufacturer: RAB
• Light Output Maximum: 20813 Lumens
• Model Name: X34XXL
• Part Number: X34XXL
• Item model number: X34XXL
• Finish types: Powder Coated
• Special Features: Dimmable
