Rab X34S Led Flood Light 35W Knuckle Mt

Product Description

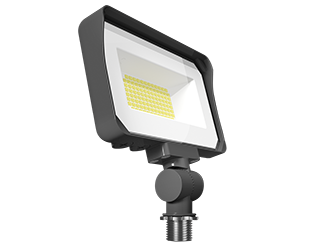

The RAB X34S LED flood light provides a powerful lighting source in a sleek, minimal form. This 35W flood light is field adjustable with selectable wattage and color temperature. It features a die-cast aluminum housing, glass lens and a polycarbonate reflector. Ideal for general outdoor applications.

• Field adjustable with 35W/25W/20W options
• Color temperature selectable between 3000K, 4000K, and 5000K
• Long-life, high-efficacy, surface-mount LEDs with 100,000-hour lifespan

Product Highlights

The X34S flood light is IP65 rated for wet locations and comes with a 5-year limited warranty. It is DLC Listed and RoHS compliant.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X34S
• Country of Origin: Cambodia

Technical Specifications

• Buy Line: RAB
• Average Life: 100000 hours
• Type: LED Floodlight
• Series: X34
• Lumens: Selectable
• Color Temperature: Adjustable
• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: 35W/25W/20W (factory default 35W)
• Color temperature selectable: 3000K, 4000K and 5000K (factory default 4000K)
• UL Listed: Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• IP Rating: IP65
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• DLC Product Code: S-T9KEIS
• Driver: Constant Current, Class 1, 120/277V, 50/60 Hz
• 35W: 120V: 0.30A, 277V: 0.13A
• 25W: 120V: 0.22A, 277V: 0.10A
• 20W: 120V: 0.18A, 277V: 0.08A
• THD 35W: 4.3% at 120V, 8.2% at 277V
• THD 25W: 5.0% at 120V, 16.8% at 277V
• THD 20W: 6.1% at 120V, 20.5% at 277V
• Power Factor 35W: 99.7% at 120V, 96.2% at 277V
• Power Factor 25W: 99.7% at 120V, 91.7% at 277V
• Power Factor 20W: 99.4% at 120V, 90.6% at 277V
• Surge Protection: 2 kV
• NEMA Type: NEMA Beam Spread 7H x 7V
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency 35W: Replaces up to 150W Metal Halide (MH) or 100W High Pressure Sodium (HPS)
• Wattage Equivalency 25W: Replaces up to 100W Metal Halide (MH) or 70W High Pressure Sodium (HPS)
• Wattage Equivalency 20W: Replaces up to 100W Metal Halide (MH) or 70W High Pressure Sodium (HPS)
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Housing: Die-cast aluminum
• Lens: Glass
• Reflector: Polycarbonate
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Knuckle arm mount
• Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
• Manufacturer Part Number: X34S
• UPC: 192552033121
• Wattage: 35 Watts
• Input Voltage: 120V/277V
• CRI: 80+
• Beam Angle: NEMA 7H x 7V Wide
• Special Features: CCT Selectable, Wattage Selectable, Wet Location Rated
• Length: 6.75"
• Width: 6"
• Alternate Catalog Number: 192552033121, 20997998
• Application: Suitable for wet locations
• Ballast Type: Class 1 Constant Current
• Brand Name: RAB Lighting
• Catalog Description (MFR): 35W/25W/20W KNUCKLE BRONZE 3000K/4000K/5000K SELECTABLE
• Enclosure Type: IP65
• Fixture Wattage: 19.6 to 33.6 W
• Housing Material: Die-Cast Aluminum
• Lamp Type: LED
• Lamp Wattage: 20, 25, 35 W
• Mounting Type: Knuckle
• Standard: DLC Standard, IP65, UL Listed, RoHS-Compliant, DLC Listed, BAA Compliant, ANSI C78.377-2017
• Stripped Catalog Number: X34S
