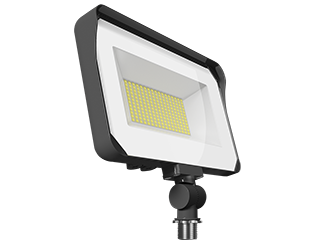

Rab X34M X34 Field-Adjustable Floodlight 65W

Product Description

The RAB X34M X34 Field-Adjustable Floodlight is a 65W LED floodlight with a 100,000-hour lifespan and an IP65 rating. It features field adjustability and selectable color temperatures of 3000K, 4000K, and 5000K. This floodlight is suitable for wet locations and is designed to meet DLC 5.1 requirements.

• Field Adjustable
• Field Adjustable Light Output: 65W/55W/45W (factory default 65W)
• Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)

Product Highlights

This RAB floodlight offers field adjustability, multiple wattage settings, and selectable color temperatures for versatile outdoor lighting applications.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X34M
• Country of Origin: Cambodia

Technical Specifications

• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: 65W/55W/45W (factory default 65W)
• Color temperature selectable: 3000K, 4000K and 5000K (factory default 4000K)
• UL Listed: Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• IP Rating: IP65
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• DLC Product Code: S-MZAHRW
• Driver: Constant Current, Class 1, 120/277V, 50/60 Hz
• THD: 3.6-17.2%
• Power Factor: 92.8-99.8%
• Surge Protection: 2kV
• NEMA Type: NEMA Beam Spread 7H x 7V
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Lifespan: 100,000 Hours
• Wattage Equivalency: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
• Cold Weather Starting: -40°F (-40°C)
• Maximum Ambient Temperature: 104°F (40°C)
• Housing: Die-cast aluminum
• Lens: Glass
• Reflector: Polycarbonate
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Knuckle arm mount
• Wattage: 65/55/45W
• Color Temperature: 3000K, 4000K, 5000K
• Lumens: 6,346-9,718 lm
• Color Rendering Index (CRI): 80-83
• Input Voltage: 120V/277V
• Rated Hours: 100,000 Hours
• Beam Angle: NEMA 7H x 7V Wide
• Special Features: CCT Selectable, Wattage Selectable, Wet Location Rated
• Length: 8.5"
• Width: 9.13"
• Height: 2.25"
• Voltage: 120/277 V
• Power Consumption: 65 W
• Bulb Life Hours: More Than 50,000 Hours
• Lighting Technology: LED
• Lumen: 6,346-9,718 lm
• L70 Lifespan: 100,000 Hours
• Compliance: UL Listed
• Suitable for: wet locations
• Photocell: Integrated photocell included with on/off switch
• Amperage: 0.37-0.60A (120V), 0.17-0.24A (277V)
• Efficacy: 128.9-166.2 lm/W
• Input Wattage: 42.6-67 W
