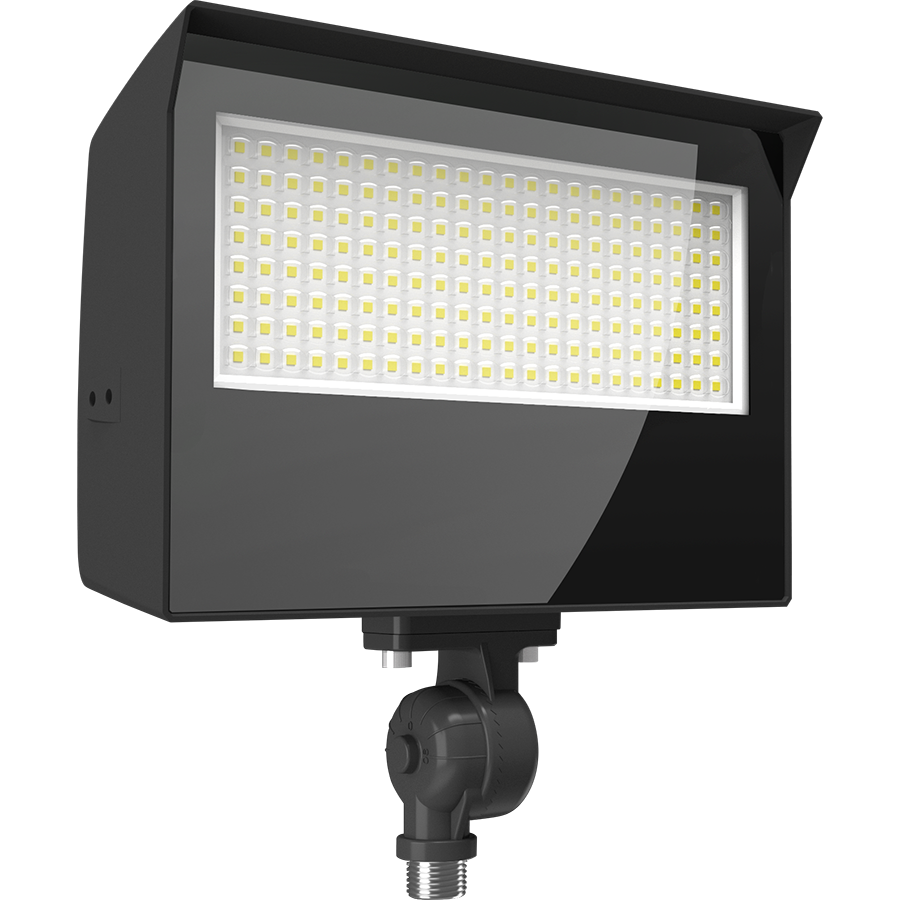

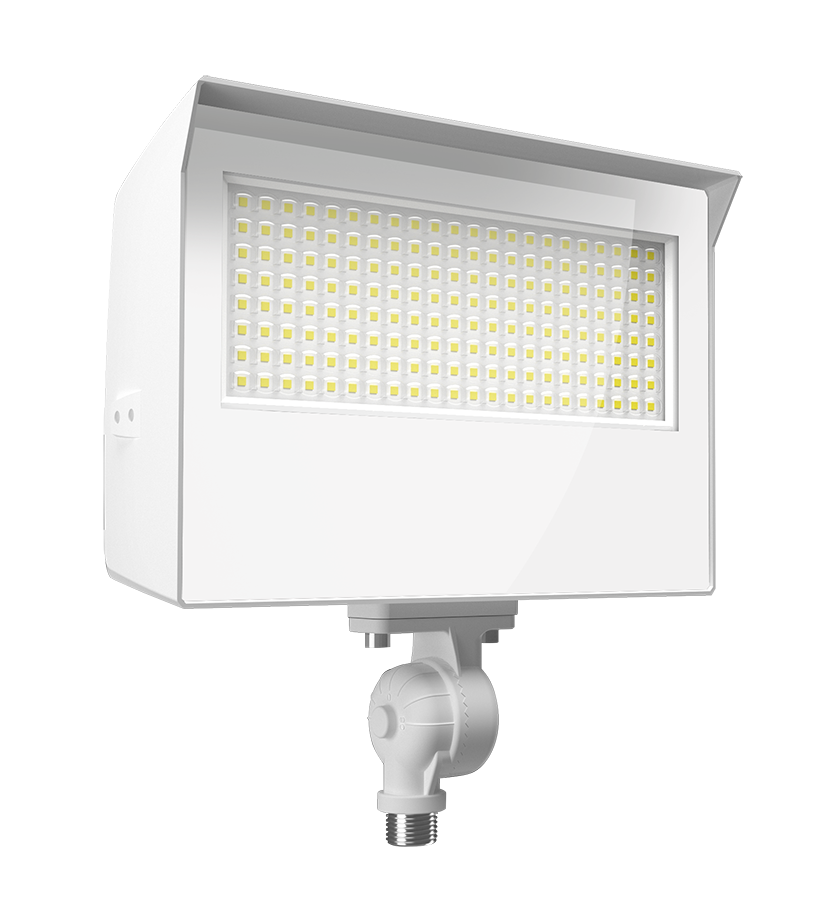

Rab X22-80W Floodlight 80W (90/75/55 degree)

Product Description

Rab X22-80W is a field-adjustable LED floodlight with 5-way selectable wattage and selectable color temperatures. It delivers 7,193–12,772 lumens and operates on 120–277V with a Class 1 constant-current driver, integrated photocell, and 0-10V dimming. The fixture features die-cast aluminum housing, tempered glass lens, IP65 ingress protection, field-adjustable optics, and a 100,000-hour L70 rating.

• Selectable wattage: 80/70/60/50W (factory default 80W) and selectable CCT: 3000K/4000K/5000K; lumen output 7,193–12,772 lm, efficacy 127.6–171 lm/W
• Class 1 constant-current driver 120–277V, 50/60 Hz with 0-10V dimming to 10%, integrated photocell, and 6 kV surge protection
• Field-adjustable optics (90°, 75°, 55°), knuckle mount with included trunnion kit, IP65 rated, cold start to -22°F (-30°C), 100,000-hour L70

Product Highlights

Field-adjustable LED floodlight with selectable wattage/CCT, integrated photocell and 0-10V dimming, IP65 rated, 100,000-hour L70.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X22-80W

Technical Specifications

• Brand: Rab
• Manufacturer Part Number: X22-80W
• Model: X22-80W
• Watts (selectable): 80/70/60/50W (factory default 80W)
• Factory Default Wattage: 80W
• Color Temperature (selectable): 3000K, 4000K, 5000K (factory default 4000K)
• Factory Default CCT: 4000K
• Lumens: 7,193 - 12,772 lm
• Efficacy: 127.6 - 171 lm/W
• Color Rendering Index (CRI): 81 - 84
• L70 Lifespan: 100,000 Hours
• Input Watts: 50.5 - 83W
• Input Voltage: 120-277V, 50/60 Hz
• Input Current (120V/208V/240V/277V): 80W: 0.66A / 0.40A / 0.35A / 0.32A; 70W: 0.58A / 0.35A / 0.31A / 0.28A; 60W: 0.51A / 0.31A / 0.28A / 0.26A; 50W: 0.44A / 0.26A / 0.24A / 0.22A
• Driver: Class 1, constant current, 120-277V, 50/60 Hz; includes 0-10V dimming wiring (dims to 10%)
• Dimming: 0-10V dimming capable, dims to 10%
• Surge Protection: L/N-PE: 6 kV; L-N: 6 kV
• THD: 8.71% at 120V; 5.57% at 277V
• Power Factor: 88.9% at 120V; 99.4% at 277V
• Photocell: Integrated photocell included with on/off switch
• Optical Field Adjustability: 90°, 75°, 55°
• Mounting: Knuckle mount with included trunnion (180° adjustable swivel arm; 10° tilt increments)
• Housing: Die-cast aluminum
• Lens: Tempered glass
• Ingress Protection: IP65 (suitable for wet locations)
• Cold Weather Starting: Minimum starting temperature -22°F (-30°C)
• Maximum Ambient Temperature: Suitable for use up to 122°F (50°C)
• Effective Projected Area (EPA): 1 Fixture: 0.249 ft²; 2 Fixtures at 90°: 0.587 ft²; 2 Fixtures at 180°: 0.498 ft²; 3 Fixtures at 90°: 0.836 ft²; 4 Fixtures at 90°: 0.836 ft²
• Listings / Certifications: DLC listed (individual SKUs may be DLC Standard or DLC Premium); UL listed (wet locations); RoHS
• Mounting Accessories Included: Knuckle mount and trunnion kit
• Dimensions: 5.12 in (H) x 13.58 in (L) x 13.58 in (W)
