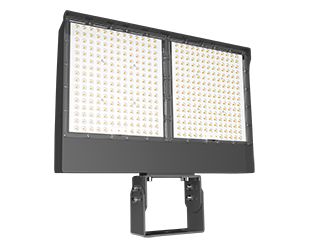

RAB X17XFU330T/PCT Adjustable Floodlight LED Lamp 175 W

Product Description

The RAB X17XFU330T/PCT is an adjustable floodlight designed for various outdoor lighting applications. This fixture operates on multiple voltage options, including one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven volts. The powerful LED lamp emits a lumen output of twenty-three thousand nine hundred seven lumens with a color temperature that can be selected from three thousand, four thousand, and five thousand Kelvin.

• Adjustable floodlight fixture with a robust design.
• Suitable for wet locations and built with die-cast aluminum housing.
• Features a long average life of one hundred thousand hours.

Product Highlights

This floodlight is perfect for illuminating large outdoor areas while providing energy-efficient lighting solutions. It uses a constant current ballast and includes a dimming driver for flexible light control.

Product Information

Standard Information

• Manufacturer: RAB Lighting
• UPC: 19255201515

Technical Specifications

• Amperage Rating: 2.79, 1.80, 1.60, 1.21 A
• Application: For Wet Locations
• Average Life: 100000 hours
• Ballast Type: Constant Current
• Color Rendering Index (CRI): 71 to 74 CRI
• Color Temperature: 3000, 4000, 5000 K
• Dimensions: 19-1/8 inches H x 16-1/4 inches W x 14-5/8 inches D
• Enclosure: NEMA 7H x 6V/IP65
• Fixture Wattage: 175 W
• Housing Finish: Bronze
• Housing Material: Die Cast Aluminum
• Includes: Dimming Driver
• Lamp Type: LED
• Lamp Wattage: 330 W
• Light Output: 136 Lumens/W
• Lighting Technology: Mercury/UV-Free
• Lumens: 23907 Lumens
• Mounting Type: Trunnion
• Standards/Approvals: UL Listed | BAA Compliant | RoHS-Compliant | DLC Listed | IESNA LM-79 and LM-80 | ANSI C78.377-2017
• Type: Adjustable
• Voltage Rating: 120, 208, 240, 277 V
