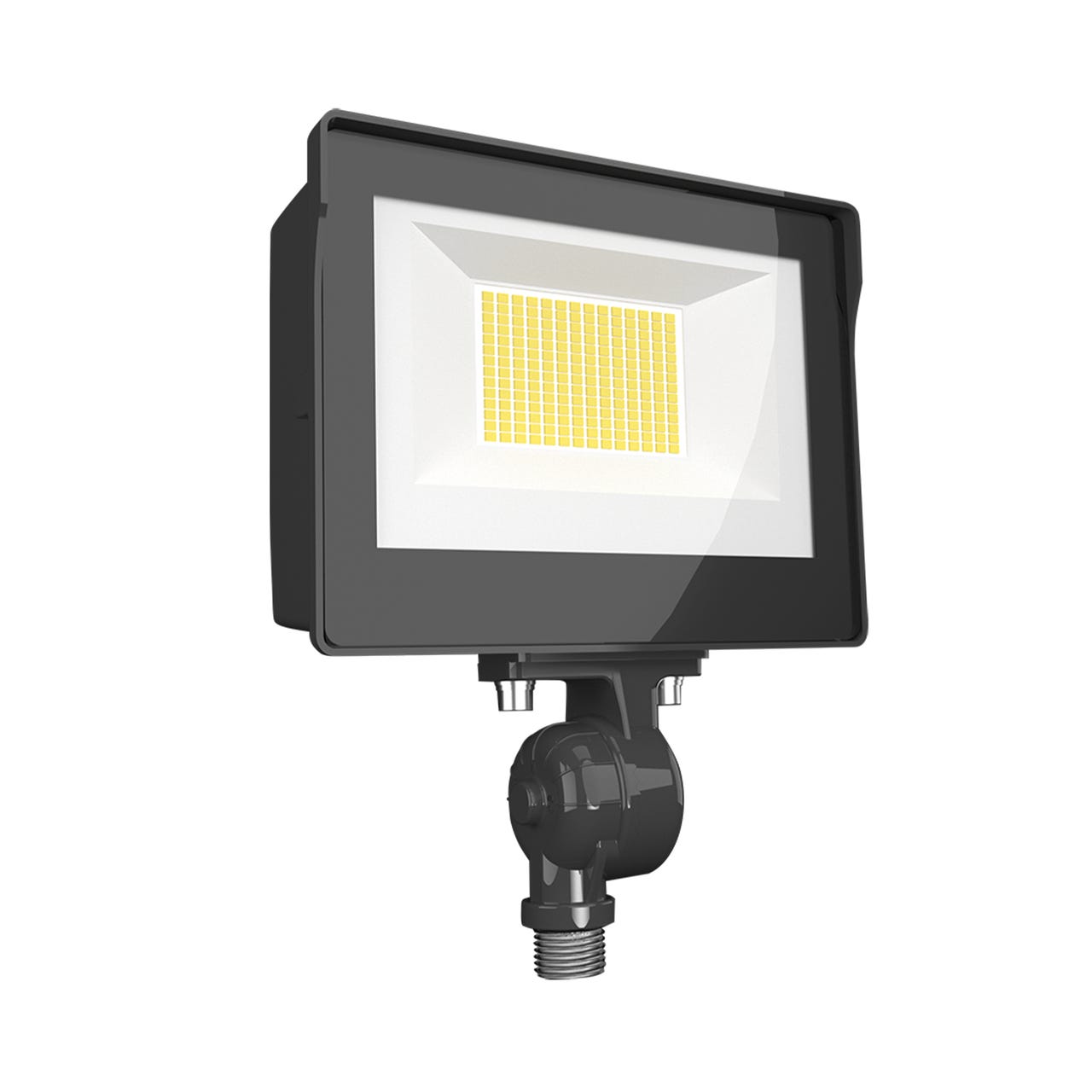

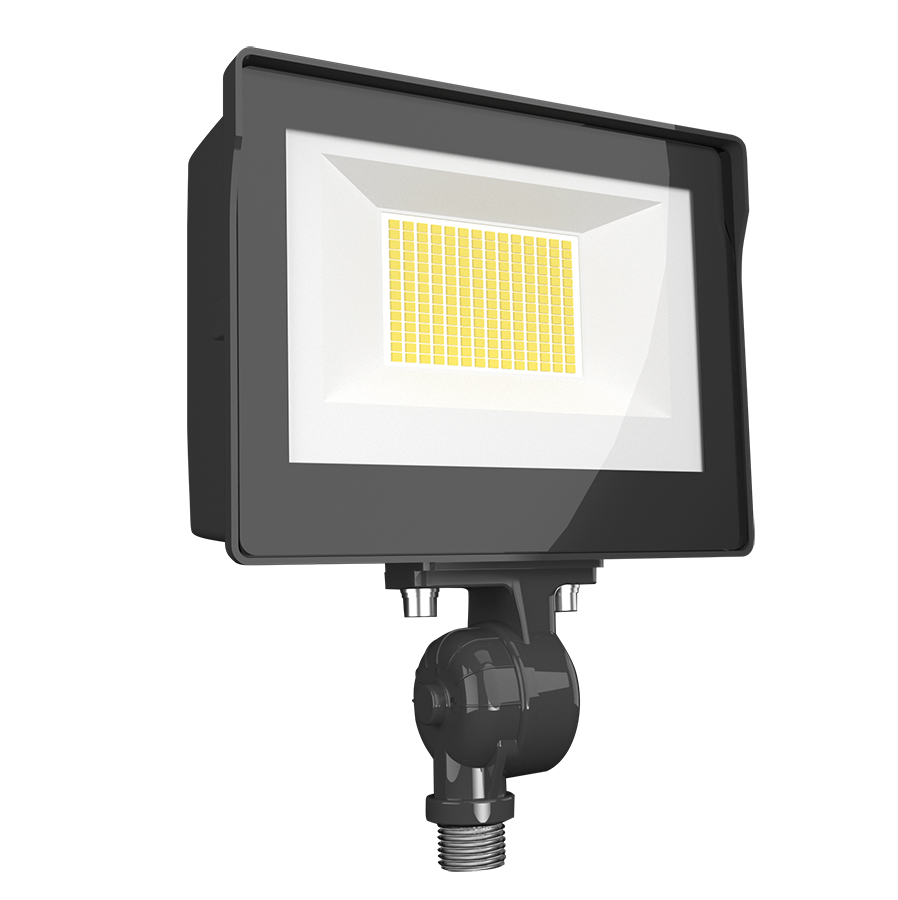

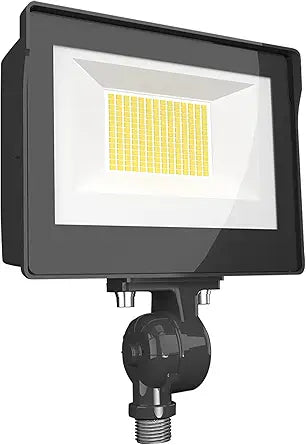

Rab X17FA15 Field Adjustable LED Flood Light 15 W 3000K/4000K/5000K

Product Description

The RAB X17FA15 field adjustable LED flood light operates from 120 to 277 V and consumes 15 W. It features an 83/84/85 CRI and a selectable color temperature of 3000K/4000K/5000K. This flood light delivers 2097/2194/2259 Lumens and is suitable for wet locations with its IP65 rating.

• Field adjustable color temperature: 3000K, 4000K, and 5000K
• IP65 rated for dust and water protection
• Long-life, high-efficacy, surface-mount LEDs with 100,000-hour lifespan

Product Highlights

The X17FA15 LED flood light offers adjustable color temperature, a long lifespan, and robust protection against environmental factors, making it ideal for outdoor use.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: X17FA15

Technical Specifications

• Fixture Wattage: 15 W
• Lamp Type: LED
• Color Temperature: 3000K/4000K/5000K
• Color Rendering Index (CRI): 83/84/85 CRI
• Lumens: 2097/2194/2259 Lumens
• Voltage Rating: 120 to 277 V
• Vendor SKU: X17FA15
• Manufacturer: RAB Lighting
• Brand: RAB
• Field Adjustability: Field Adjustable
• UL Listed: Suitable for wet locations
• IP Rating: Ingress protection rating of IP65 for dust and water
• Driver: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
• Dimming Driver: Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
• THD: 9.25% at 120V, 10.25% at 277V
• Power Factor: 99.9% at 120V, 90.9% at 277V
• Photocell: 120-277V selectable photocell that can be turned on and off.
• Surge Protection: 6 kV
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Housing: Precision die-cast aluminum
• Lens: Tempered glass
• Reflector: Polycarbonate
• Finish: Formulated for high durability and long-lasting color
• Mounting: Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
• NEMA Type: NEMA Beam Spread 7H x 7V
• Wattage Equivalency: Equivalent to 70W Metal Halide
• Room Type: Outdoor
• Specific Uses For Product: Deck, Driveway, Garden, Office, Outdoor, Patio, Porch, Shop, Street Lighting
• Indoor Outdoor Usage: Outdoor
• Power Source: AC
• Other Special Features of the Product: Dawn-To-Dusk
• Control Method: App
• Light Source: LED
• Number of Light Sources: 1
• Voltage: 120 Volts
• Lighting Method: Adjustable
• Wattage: 15 watts
• Controller Type: 0-10V dimming system
• Switch Type: Toggle
• Water Resistance Level: Water Resistant
• Brightness: 2259 Lumen
• Efficiency: 135.4/151.9/141.9 lm/W
• Mounting Type: Knuckle Swivel
• Fixture Type: Non Removable
• Installation Type: Hardware Mounted
• Specification Met: DLC
• Required Assembly: Yes
• Manufacturer Part Number: X17FA15
• UPC: 192552003889
• Lumens Per Watt: 150.6
• Dimmable: 0-10V
• Rated Hours: 100,000 Hours
• Beam Angle: NEMA 7H x 6V Wide
• Min Operating Temp: -40 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Photocell Installed
• Length: 7.44"
• Width: 2.69"
• Height: 9.19"
• Ambient Temperature: 104 degrees F
• Color Accuracy: 83 CRI
• Correlated Color Temp: 3000 K
• Efficacy: 135 LPW
• Input Wattage: 15.5/14.9/15.5
• Lens Material: Tempered Glass
• Minimum Starting Temp: -40 degrees C
• Type: Constant Current
• Input Voltage: 120-277V
• Watts: 15
• Lamp Info: LED
• Driver Info: Constant Current
• Amps 120: 0.15A
• Amps 208: 0.08A
• Amps 240: 0.07A
• Amps 277: 0.06A
• Lamp Lumens: 2097/2259/2194
• Lamp Hours: 100000
• DLC Type: DLC Premium
• DLC ID: PLRUPLB1XTEV
• DLC Version: 5.1
• Amperage Rating: 0.15, 0.08, 0.07, 0.06 A
• Average Life: 100000 hrs
• Ballast Type: Constant Current
• Enclosure Type: IP65
• Housing Material: Die Cast Aluminum
• Lamp Wattage: 15 W
• Light Output: 135 Lumens/W
• Series: X17
