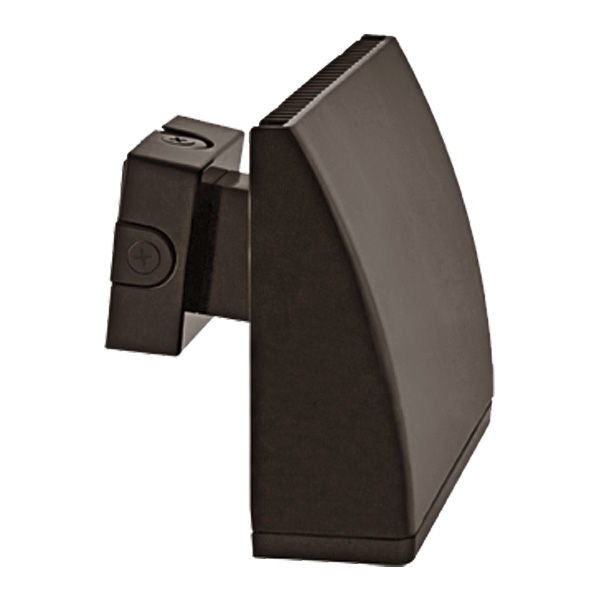

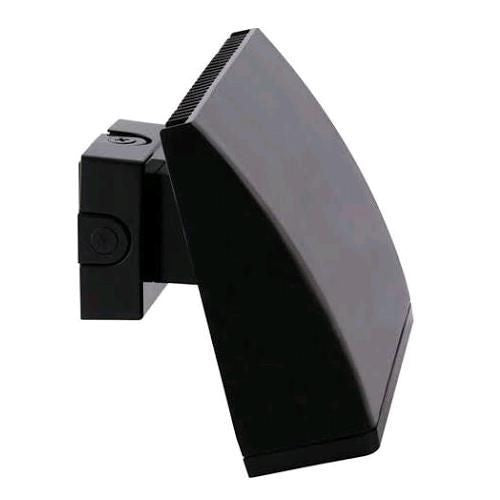

Rab WPLED52 LED Light Fixture 52W Replaces 250W MH

Product Description

The RAB WPLED52 LED light fixture maintains 70 percent of initial lumens at 100,000 hours. Features weatherproof high-temperature silicone gaskets and superior heat sinking with a die-cast aluminum housing and external fins. It replaces 250W MH and has a chip and fade-resistant polyester powder coat finish.

• High performance LED light engine
• Maintains 70 percent of initial lumens at 100,000 hours
• Weatherproof high temperature silicone gaskets

Product Highlights

This LED light fixture is designed for cool operation and maximum LED life. It has a traditional wallpack look from the front and offers 3 cutoff options.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WPLED52
• Country of Origin: USA

Technical Specifications

• MPN: WPLED52
• Product Type: LIGHT_FIXTURE
• Brand: Rab
• Wattage: 52
• Volts AC: 120, 277, 240, 208
• Lumens: 3429
• Lamp Type: LED
• Housing Material: Aluminum
• Color Rendering Index (CRI): 65
• Amperage Rating: 0.51/0.33/0.29/0.25 A
• Voltage Rating: 100 to 240/277 VAC
• Mounting Type: Wall
• Color Temperature: 5000 K
• Average Life: 100000 hr
• Application: Wet Location
• Housing Finish: Polyester Powder Coated
• L70 Lifespan: 100,000 Hours
• Efficacy: 127.7
• Input Watts: 57.9W
• UL Listed: Suitable for wet locations
• THD: 7.64% at 120V, 5.72% at 277V
• Power Factor: 99.2% at 120V, 97.5% at 277V
• Surge Protection: 6 kV
• LEDs: Two (2) multi-chip, high-output, long-life LEDs
• Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Life Hours: 100,000
• Finish: Bronze
• Metal Halide Equal: 250 Watt
• Warranty: 5-Year Limited
• Type: Wallpack
• Volts AC Range: 120 - 277
• Lamp Wattage: 52 W
• Driver: Constant Current, Class 2, 120-277V, 50-60Hz, 120V: 0.51A, 208V: 0.33A, 240C: 0.29A, 277V: 0.24A
• Enclosure Rating: IP66
