Rab WFRL8R239FADWS 8 inches led edge-lit wafer downlight 23W

Product Description

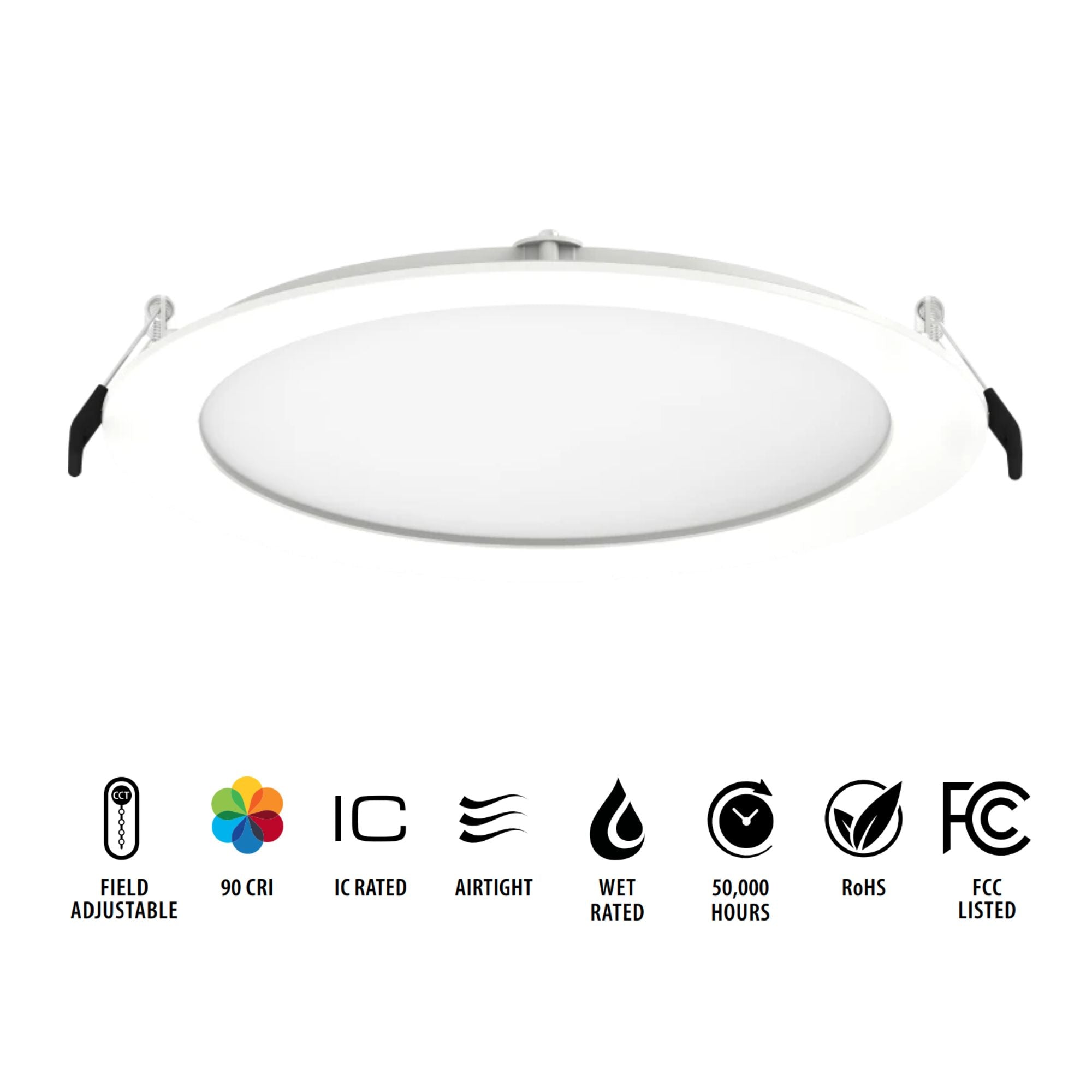

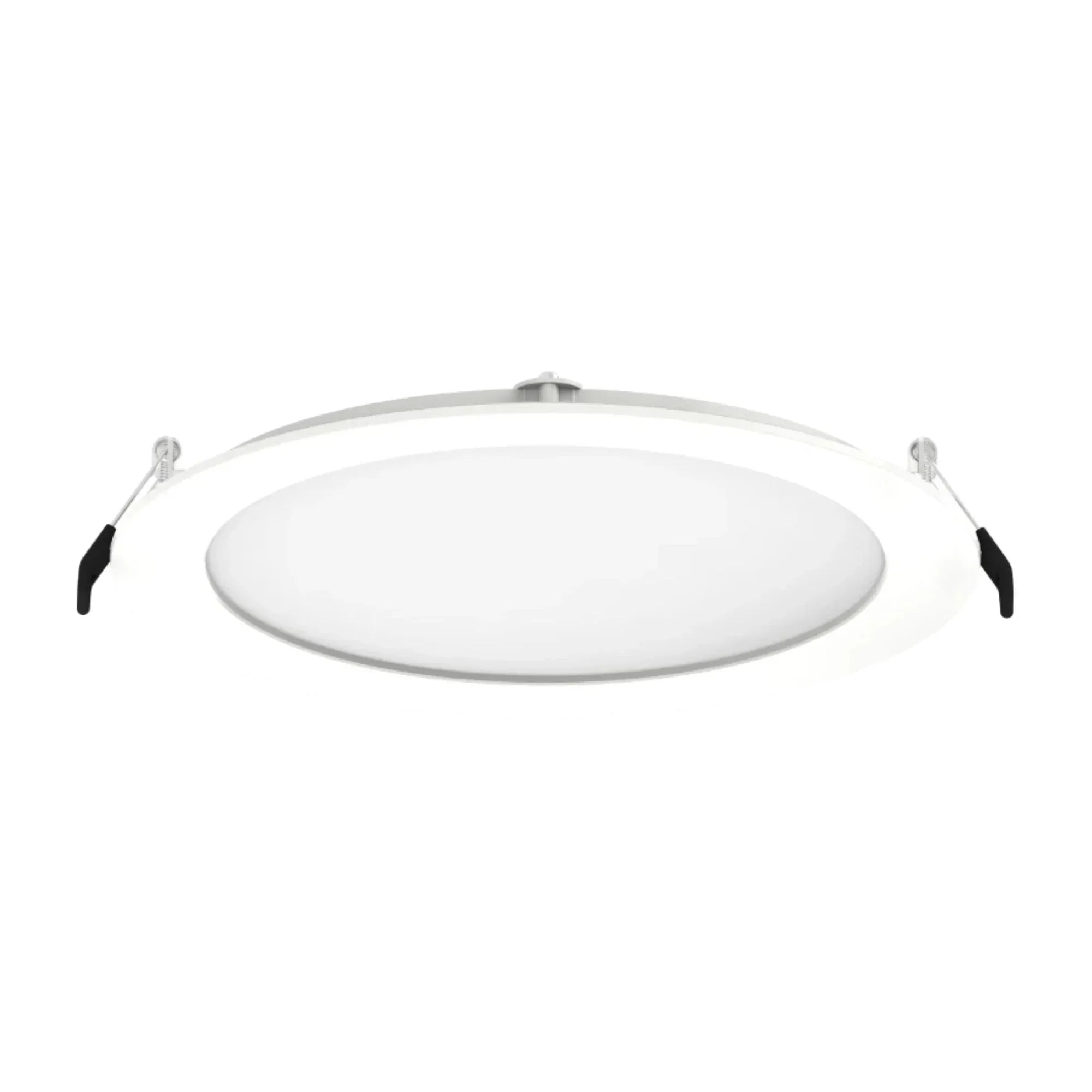

The RAB WFRL8R239FADWS field-adjustable wafer style downlight is a super slim, edge-lit fixture that is IC-rated for direct contact with insulation and requires no housing or J-box to install. Each model allows you to select between 5 different color temperatures with the switch on the included remote driver.

• 120-277V operation
• 0-10V and TRIAC dimming as low as 10%
• CCT-selectable: choose between warm 27K, warm 30K, warm-neutral 35K, neutral 40K or daylight 50K white light color temperatures

Product Highlights

This 8-inch downlight delivers up to 2100 lumens using 23W. It features selectable color temperatures for adaptable lighting solutions and is UL listed for wet locations.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WFRL8R239FADWS

Technical Specifications

• Brand: RAB
• Manufacturer Part Number: WFRL8R239FADWS
• UPC: 192552013536
• Lumens: 1,925 Lumens
• Wattage: 23 Watts
• Input Voltage: 120-277V
• Dimmable: Yes
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Downlight Diameter: 8"
• Downlight Type: Thin / Wafer
• Rated Hours: 50,000 Hours
• Min Operating Temp: -4 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated

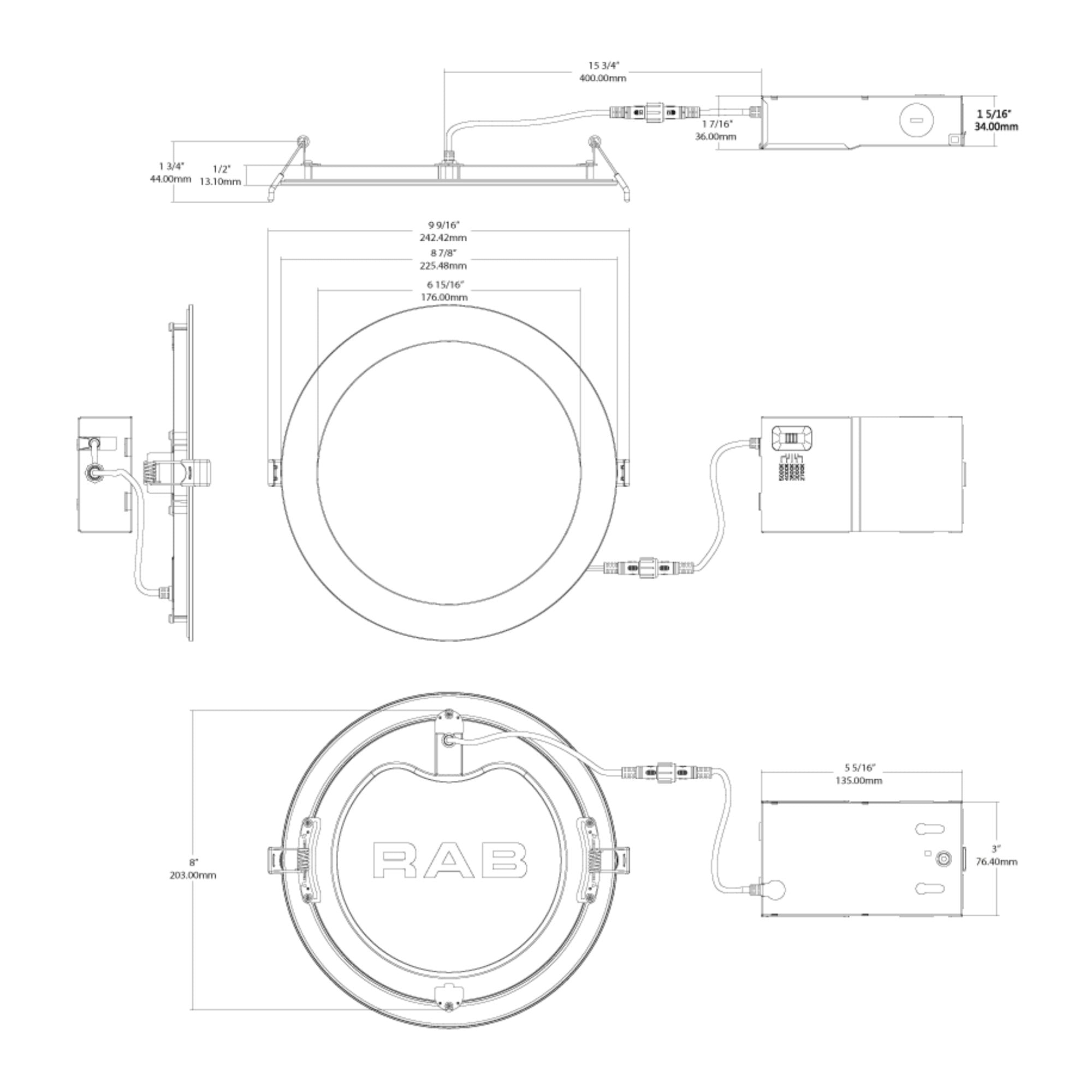

• Diameter: 8.88"
• Height: 0.5"
• Voltage: 120V 0.21A, 208V 0.12A, 240V 0.10A, 277V 0.09A
• Driver: Constant Current
• Efficacy: 78
• Finish: White,Black,Bronze,Brushed Nickel
• Input Wattage: 23
• Lamp Info: LED
• Length: 9.25
• Width: 2.36
• Material: Aluminum
• Shape: Round
• Lamp Color: 2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
• Color Rendering: 90 CRI
• Delivered Lumens: 2100
• Beam Angle: 110
• Trim: Ultra Thin
• Reflector: None
• Total Wattage: 23W
• Family: Commercial CCT-Adjustable Wafer
• Lamp Life: 50,000 Hours
• Product Rating: Wet Rated
• Type: Field-Adjustable
• Voltage Rating: 277 V
• Standard & Approvals: BAA Compliant, Energy Star, TAA Compliant, UL Listed, PROP65
• Amperage Rating: 0.21, 0.12, 0.10, 0.09 A
• Average Life: 50000 hr
• Ballast Type: TRIAC
• Catalog ID: RABWFRL8R239FADWS
• Lighting Technology: Edge-Lit
• Light Output: 78 Lumens/W
• Mounting Type: Ceiling/Recessed
• Application: Suitable for new construction and retrofit applications
• Series: WRFL
• Recessed Trim Type: Smooth
• Includes: TRIAC compatible dimmer with dimming as low as 10%
