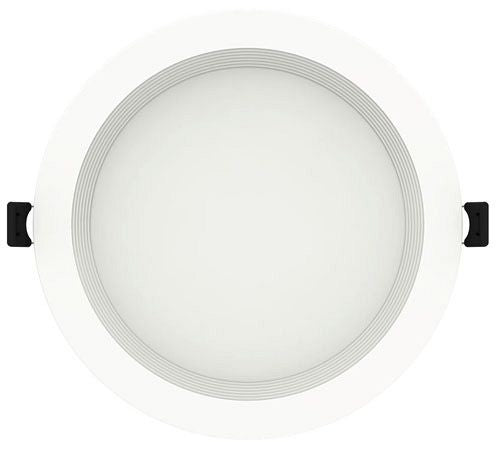

Rab WFRL6R139FA120WB Edge-Lit Wafer CCT Field Adjustable 6 inches No Housing Required

Product Description

The RAB WFRL6R139FA120WB edge-lit wafer is a CCT field-adjustable downlight that operates at 120V. This 6" fixture features selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. It is IC-rated for direct contact with insulation and requires no housing. Suitable for new construction or retrofit applications.

• Field adjustable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Super slim, edge-lit design
• IC-rated and airtight

Product Highlights

This 6" LED wafer downlight provides smooth, diffused light and is UL listed for wet locations. It is dimmable down to 5% with compatible dimmers and has a high CRI of 90+.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WFRL6R139FA120WB

Technical Specifications

• Air Rating: Air Tight
• Nominal Aperture Size: 6 Inch
• Aperture Shape: Round
• Lamp Type: LED
• Transformer Type: 120 Volt AC 60 Hertz
• Installation: New Construction
• Ceiling Type: Insulated
• Ceiling Opening Size: 6 Inch
• Housing Material: Plastic
• Application: Wet Location
• Approval: UL, IC, FCC
• RoHS Compliant: True
• Lamp Wattage: 13 Watt
• Equivalent Wattage: 75 Watt
• Constant Current Rating: 0.13 Amp at 120 Volt
• Driver Input Power Rating: 13 Watt
• Lumens: 1,130 Lumens
• Color Rendering Index: 90
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• L70 Life in Hour: 50000
• Efficacy: 73 Lumen per Watt
• Power Factor: 0.9
• Total Harmonic Distortion: 20 Percent
• Beam Angle: 110 Degrees
• Trim Type: Baffle
• Finish: Chip, Scratch and Fade Resistant Matte White Polyester Powder Coated
• Lens Material: Acrylic
• Operating Temperature: -30 to 40 Deg C
• Applicable Standard: Title 24/JA8 Compliant
• Input Voltage: 120V
• Wattage: 13 Watts
• Dimmable: 120V
• Downlight Diameter: 6"
• Downlight Type: Thin / Wafer
• Rated Hours: 50,000 Hours
• Min Operating Temp: -22 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
• Diameter: 6.81"
• Height: 0.5"
• Operating Frequency: 60 Hz
• Correlated Color Temp: 2700 K
• Input Wattage: 13
• Shape: Round
