Product Description

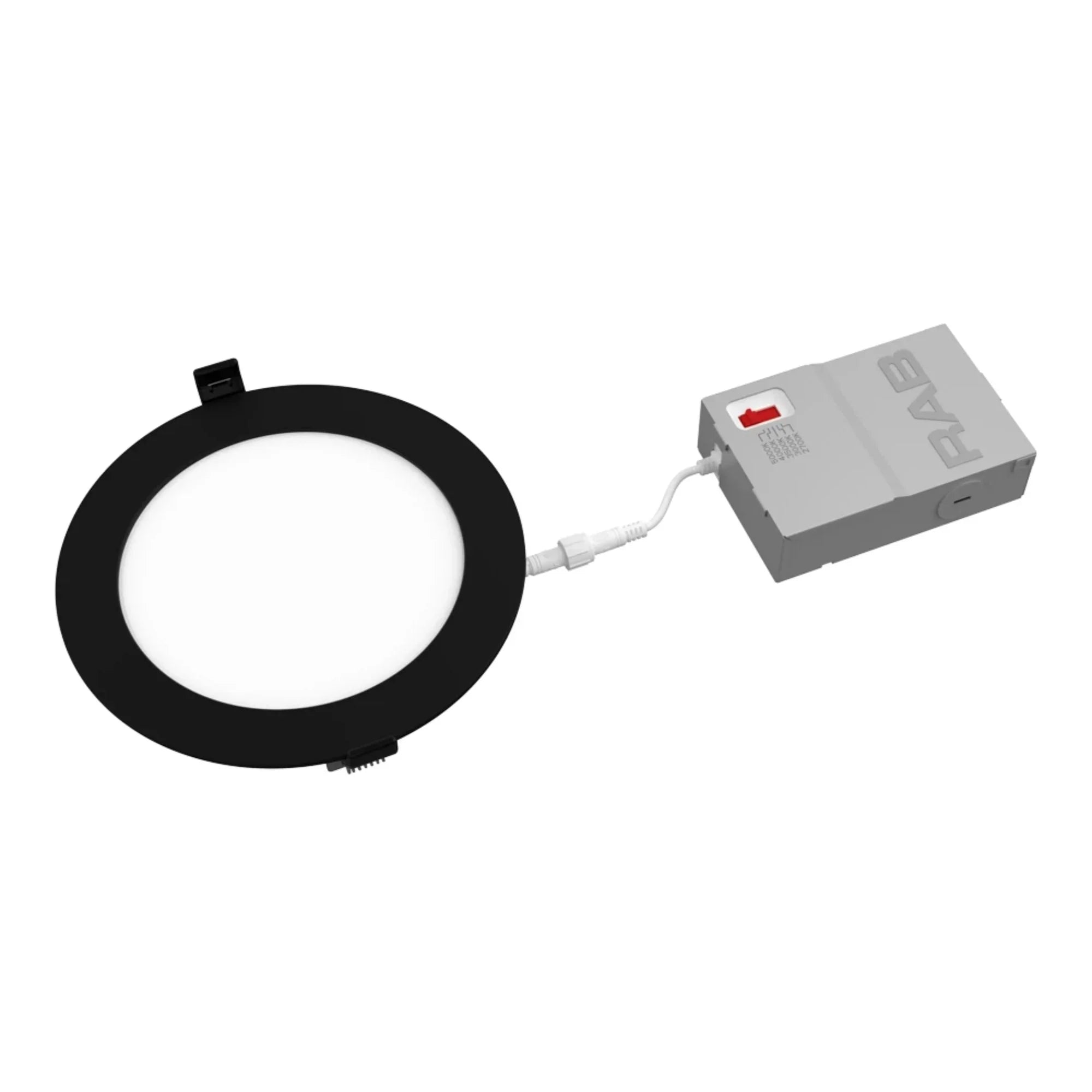

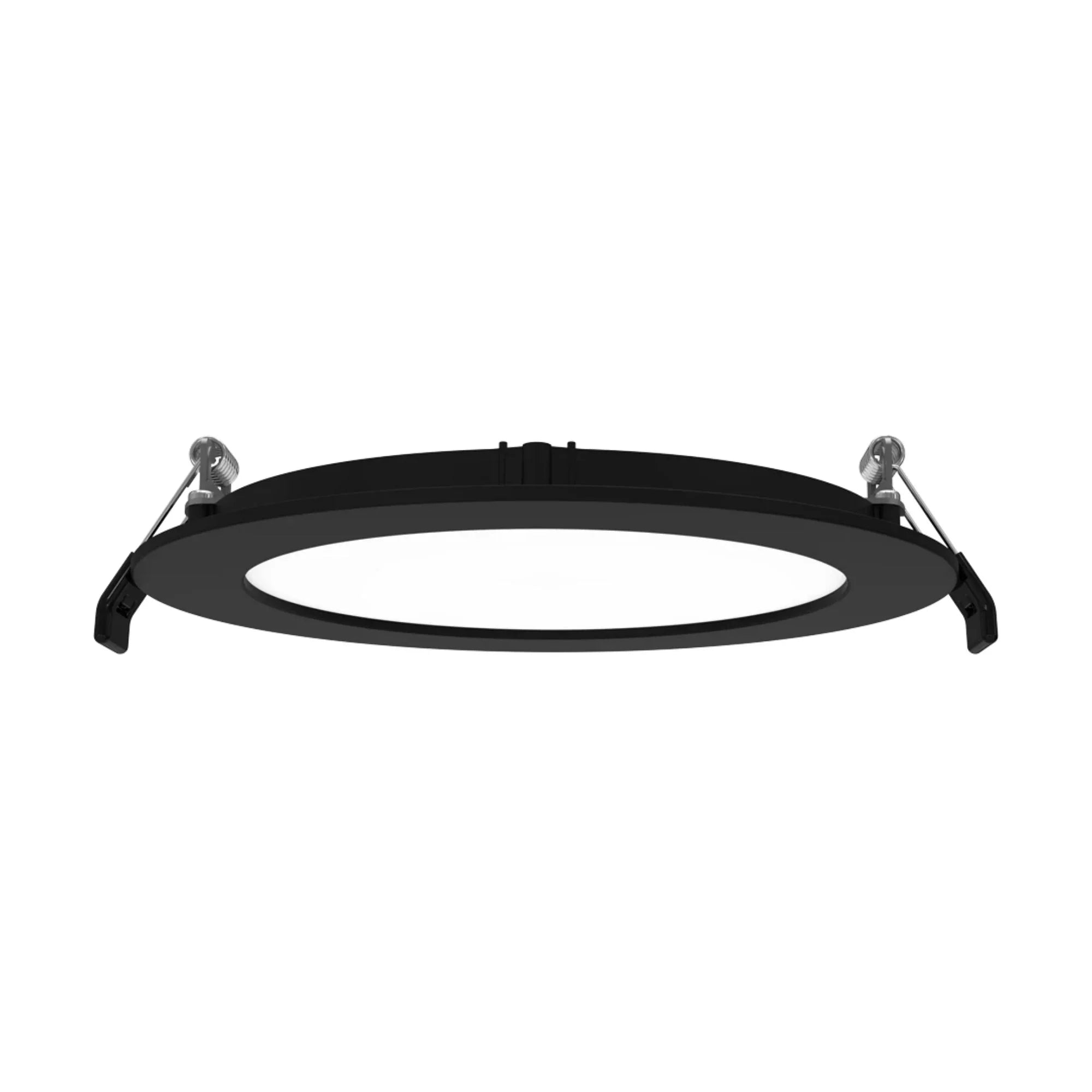

The RAB WFRL6R139FA120BS WFRL CCT-Adjustable Edge-Lit Wafer is a super slim, edge-lit fixture with selectable color temperatures. This 6" wafer downlight is IC-rated and requires no housing or J-box for installation. It is dimmable down to 10% on compatible dimmers and suitable for use indoors and outdoors in dry, damp, or wet environments.
- Features 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim edge-lit fixture for thin fixture depth
- No recessed housing or J-box required

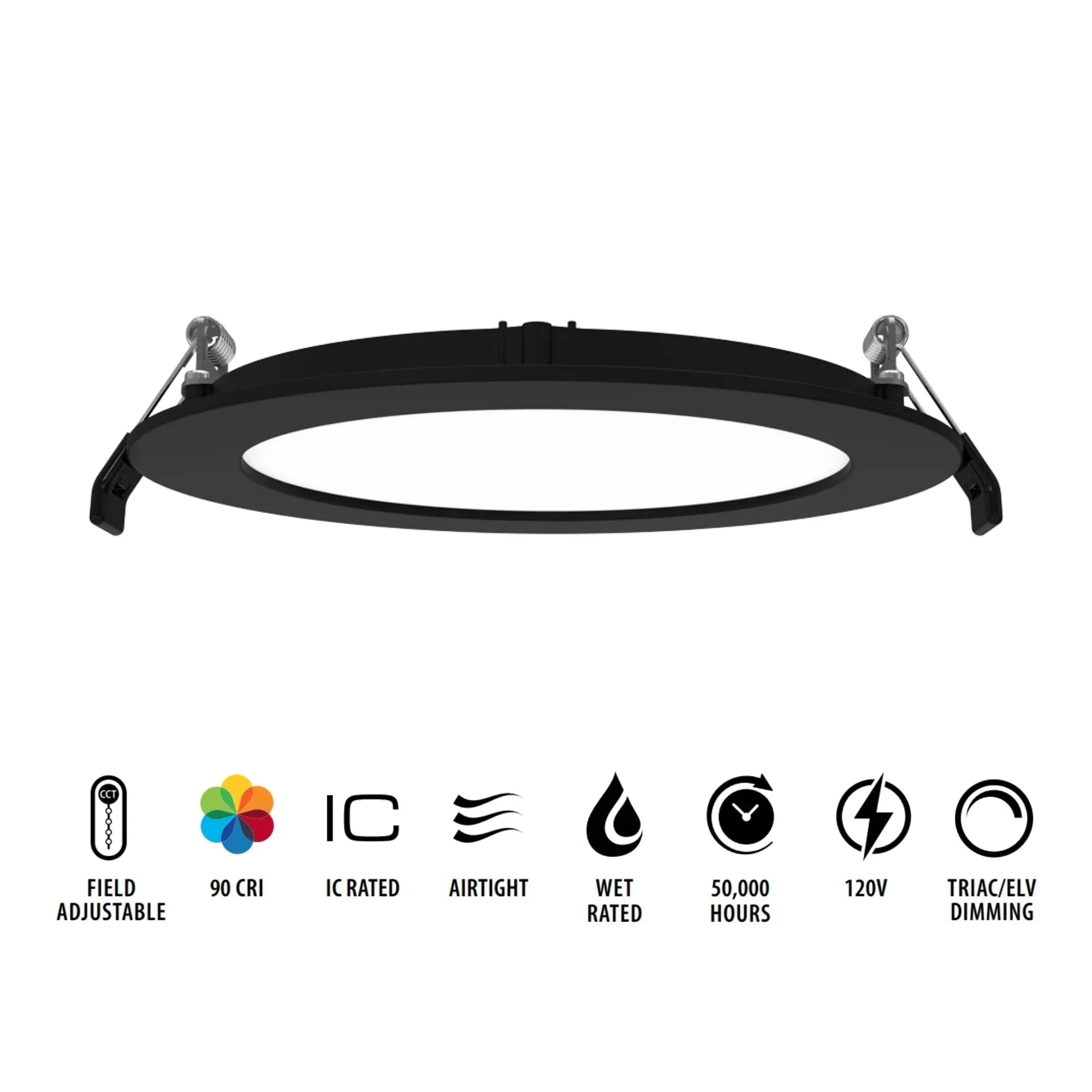

Product Highlights
This 13W wafer downlight has a 50,000-hour LED lifespan, a high color rendering index (CRI) of >90, and is both IC and airtight rated.
Product Information
Standard Information
-
Brand: RAB
-
Manufacturer Part Number: WFRL6R139FA120BS
Technical Specifications
-
Product Type: Round, Edge-Lit Wafer
-
Wattage Equivalency: 75W Incandescent
-
Input Wattage: 13W
-
Lumens (Nominal): 1,100lm
-
Lumens (Measured): 1,064lm @ 2700K; 1,099lm @ 3000K; 1,154lm @ 3500K; 1,181lm @ 4000K; 1,182lm @ 5000K
-
Efficacy: 85 lumens per watt
-
L70 Lifespan: 50,000-Hour LED lifespan based on IESlm-70 results
-
Driver: Constant Current, Class 2 60 Hz; 120V: 130mA
-
THD: ≤20%
-
Power Factor: ≥0.9
-
Dimmable: Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
-
Input Voltage: 120V
-
Operating Frequency: 60 Hz
-
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
-
Beam Angle: 110°
-
Color Temperature: Field adjustable via dip switch 2700K/3000K/3500K/4000K/5000K
-
Color Accuracy (CRI): >90 CRI
-
R9 Value: High color performance with R9 greater than 50
-
Color Consistency: <4-step MacAdam Ellipse
-
Color Stability: LED color temperature warrantied to shift no more than 200K over 5 years
-
Color Uniformity: ANSI C78.377-2017 Compliant
-

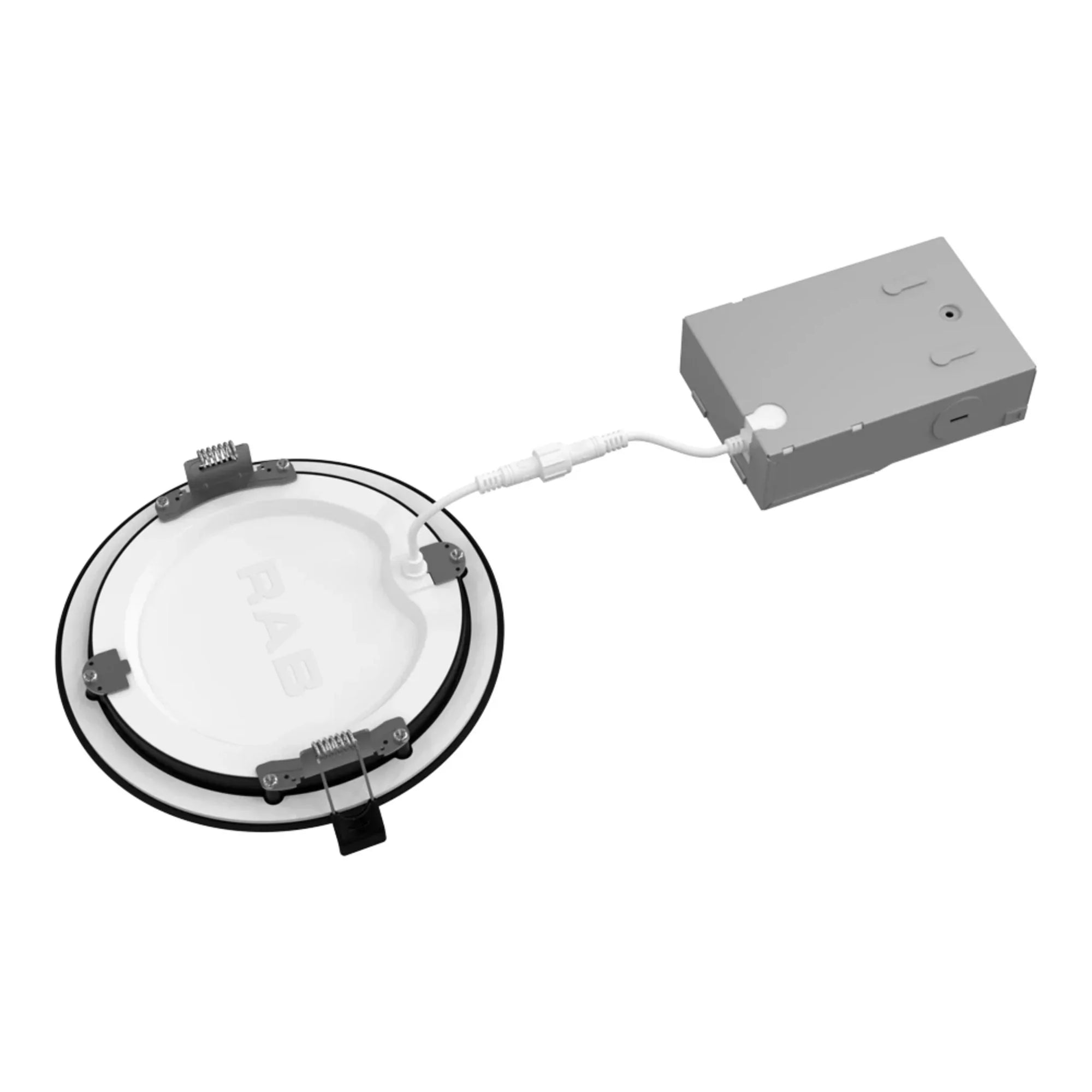

Remote Driver/Junction Box: Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
-
Mounting: Recessed, no housing required
-

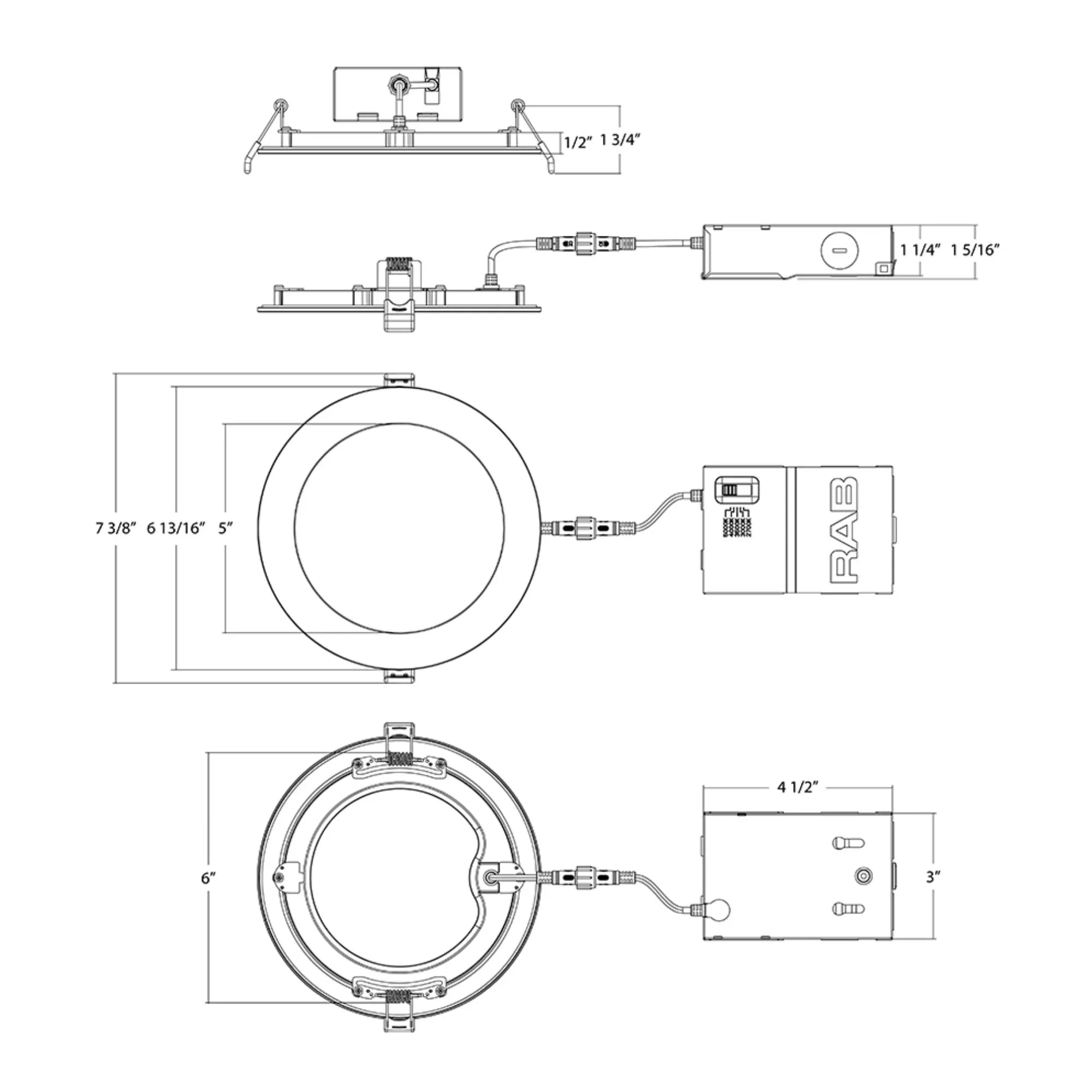

Size: 6"
-
Shape: Round
-
Enclosure Material: Metal+Plastic
-
Trim Style: Smooth
-
Lens Finish: Frosted
-
Lens: Polycarbonate light diffuser
-
Listings: UL Listed
-
Environment: Suitable for dry, damp, or wet environments
-
IC Rated: Suitable for direct contact with insulation
-
Type IC: Inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
-
Air Tight: Housing certified Air Tight as per ASTM-E283
-
Energy Star Approved: Yes
-
California Title 20 Compliant: Yes
-
California Title 24 JA8 Compliant: Yes
-
California Energy Commission (CEC) Status: Lawful for Sales in California
-
NEC Compliant: Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
-
IESNA LM-79 & LM-80 Testing: Yes
-
RoHS: Mercury and UV free. RoHS-compliant components.
-
FCC: Complies with Part 15 of the FCC Rules
-
Downlight Diameter: 6"
-
Downlight Type: Thin / Wafer
-
Rated Hours: 50,000 Hours
-
Min Operating Temp: -4 Degrees F
-
Height: 0.5"
-
Series: Wafer (WFRL)
-
Model Number: WFRL6R139FA120BS
-
UPC: 192552048002
-
Design: Ultra-thin, canless, round edge-lit
-
Finish: Black
-
Installation Type: Retrofit or new construction
-
Location Rating: Wet location rated
-
Certifications: UL/cUL Listed, Energy Star qualified, JA8 compliant (California Title 24)
-
Warranty: 5 Years
-
Total Wattage: 13
-
Lamp Color: 2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
-
Color Rendering: 90
-
Delivered Lumens: 1100
-
Lamp Life: 50,000 Hours
-
Brand: RAB Lighting
