Rab WFRL4R99FA120WB 4 inches LED Wafer 9W

Product Description

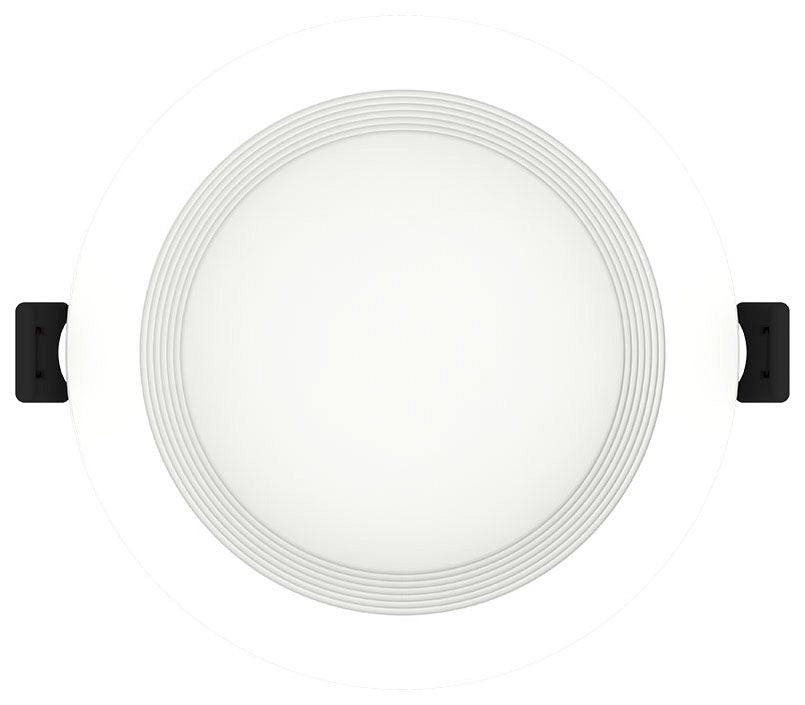

The RAB WFRL4R99FA120WB is a 4" LED wafer, a super slim, edge-lit fixture that is IC-rated and requires no housing or J-box for installation. Select between 2700K, 3000K, 3500K, 4000K, or 5000K color temperatures. Constructed of die cast aluminum and UL listed for wet locations. It is 120V dimmable down to 5% with compatible drivers.

• 120V operation and dimming
• CCT-selectable: choose between 27K, 30K, 35K, 40K or 50K white light color temperatures
• IC-rated for direct contact with insulation

Product Highlights

This 9W LED wafer downlight has a high CRI of 90+ for true color rendering. It is Energy Star and Title-24 certified, airtight rated, and 50,000 hour rated.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WFRL4R99FA120WB

Technical Specifications

• Transformer Type: 120 Volt AC 60 Hertz
• Installation: New Construction
• Ceiling Opening Size: 4-1/16 Inch
• Housing Material: Plastic
• Application: Wet Location
• Approval: UL, IC, FCC
• RoHS Compliant: True
• Lamp Wattage: 9 Watt
• Equivalent Wattage: 75 Watt
• Constant Current Rating: 0.1 Amp at 120 Volt
• Driver Input Power Rating: 9 Watt
• Intensity: 644 Lumen
• Color Rendering Index: 90
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• L70 Life in Hour: 50000
• Efficacy: 66 Lumen per Watt
• Power Factor: 0.9
• Total Harmonic Distortion: 20 Percent
• Beam Spread: 110 Degree
• Trim Type: Baffle
• Finish: Chip, Scratch and Fade Resistant Matte White Polyester Powder Coated
• Lens Material: Acrylic
• Operating Temperature: -30 to 40 Deg C
• Applicable Standard: Title 24/JA8 Compliant
• Input Voltage: 120V
• Dimmable: 120V
• Downlight Diameter: 4"
• Downlight Type: Thin / Wafer
• Rated Hours: 50,000 Hours
• Min Operating Temp: -22 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
• Wattage: 9 Watts
