Rab WFRL4R99FA120BB edge-lit wafer 9W 4 inches 750lm 90cri 5cct 120V triac/elv round

Product Description

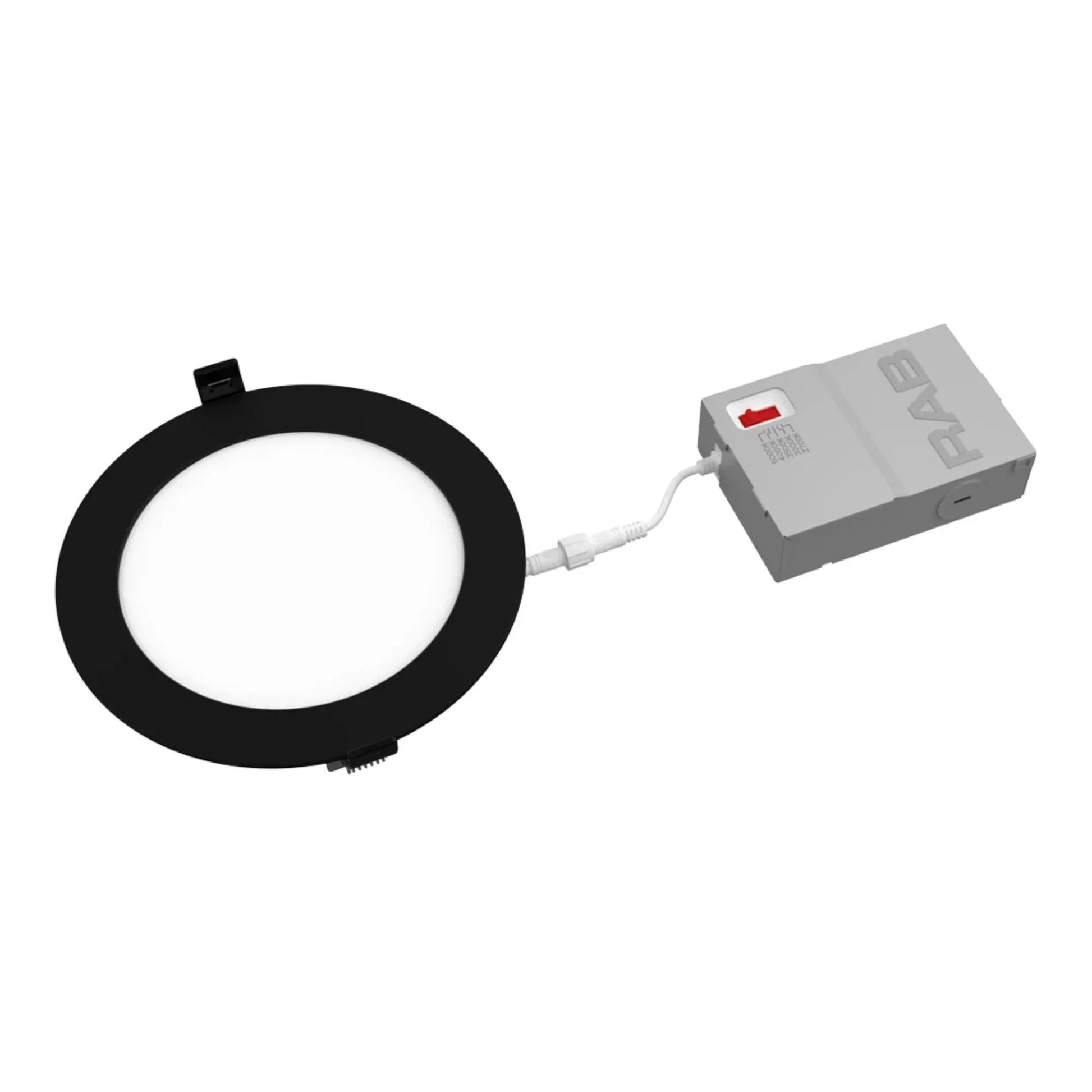

The RAB WFRL4R99FA120BB is a 4-inch round edge-lit wafer downlight, designed for both new construction and retrofit applications. This 9W fixture offers 5 selectable color temperatures (2700K-5000K) and delivers 800 lumens. It features 90 CRI for accurate color rendering and operates on 120V with TRIAC/ELV dimming down to 10%. The super slim design requires no recessed housing or J-box, and it is UL wet location rated.

• 5 selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) in one SKU.
• Super slim edge-lit design for thin fixture depth, requiring no recessed housing or J-box.
• UL wet location rated and dimmable down to 10% on compatible TRIAC/ELV dimmers.

Product Highlights

This 4-inch round edge-lit wafer downlight features 5CCT selectable options, 90 CRI, 120V operation, and is IC and airtight rated for versatile installation.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WFRL4R99FA120BB

Technical Specifications

• Product Type: Round, Edge-Lit Wafer
• Wattage Equivalency: 40W Incandescent
• Wattage: 9W
• Lumens: 800lm
• Efficacy: 87lm/W
• Lifespan: 50,000 Hours
• Driver: Constant Current, Class 2 60 Hz; 120V: 100mA
• THD: ≤20%
• Power Factor: ≥0.9
• Dimmable: Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems
• Input Voltage: 120V
• Operating Frequency: 60 Hz
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Beam Angle: 110°±10°
• Color Temperature: Field adjustable via dip switch 2700/3000/3500/4000/5000K
• CRI: >90 CRI
• R9 Value: High color performance with R9 greater than 50
• Color Consistency: <4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

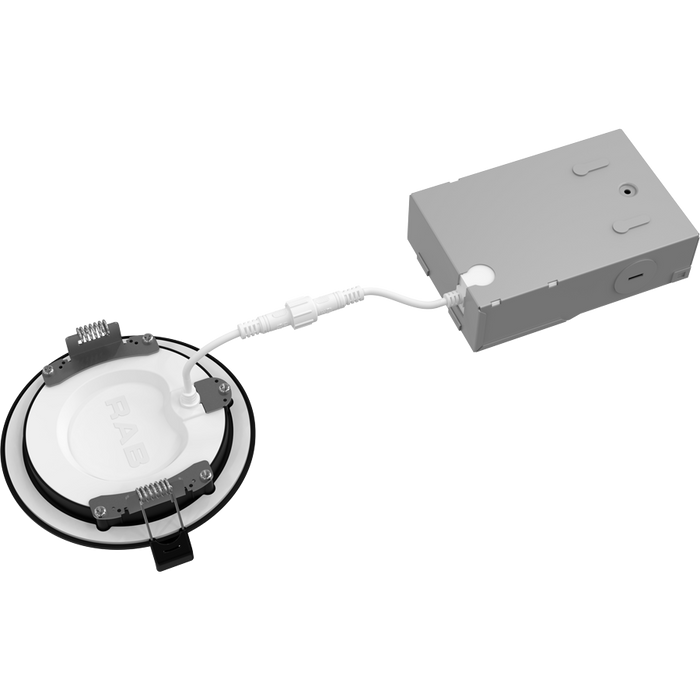

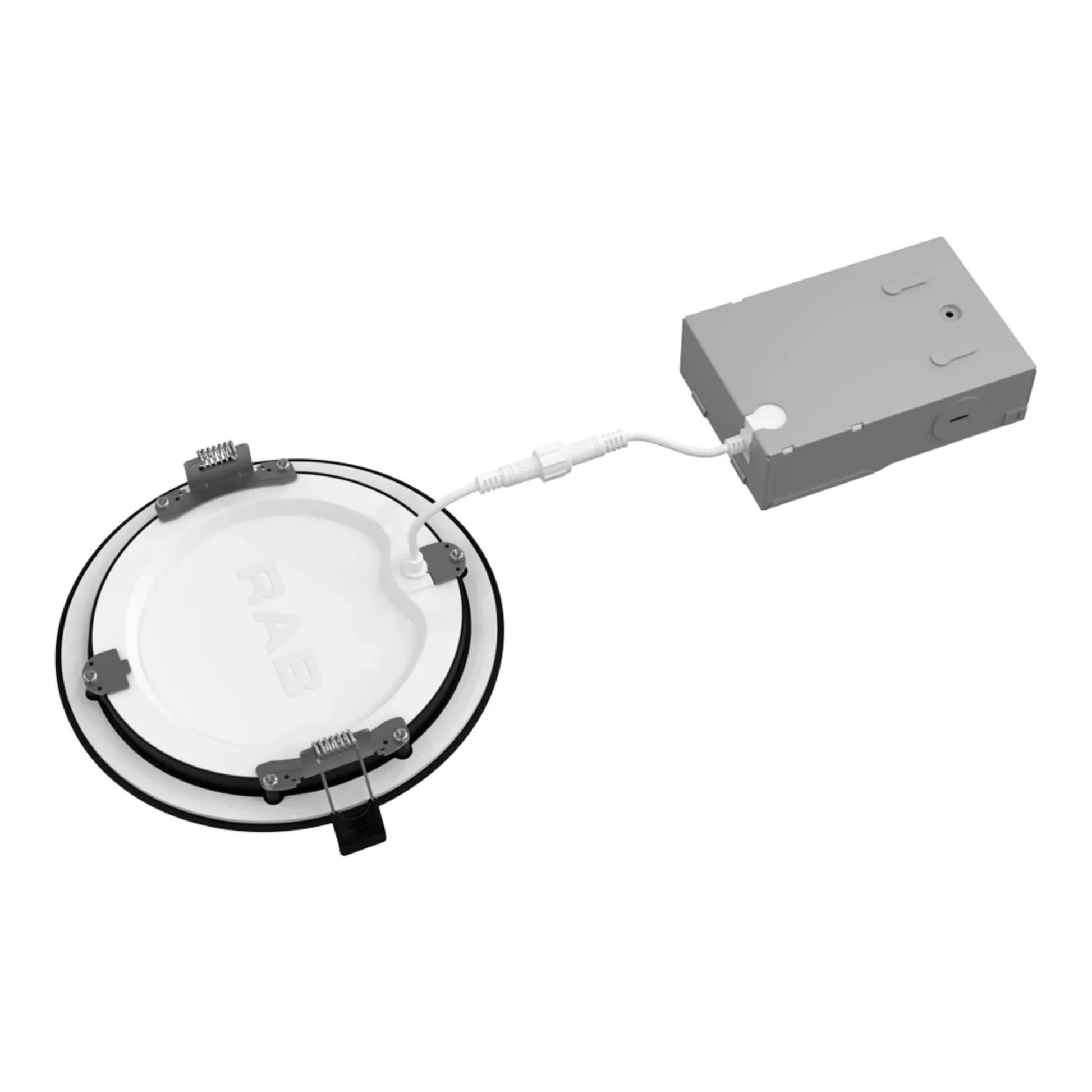

• Remote Driver/Junction Box: Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
• Mounting: Recessed, no housing required

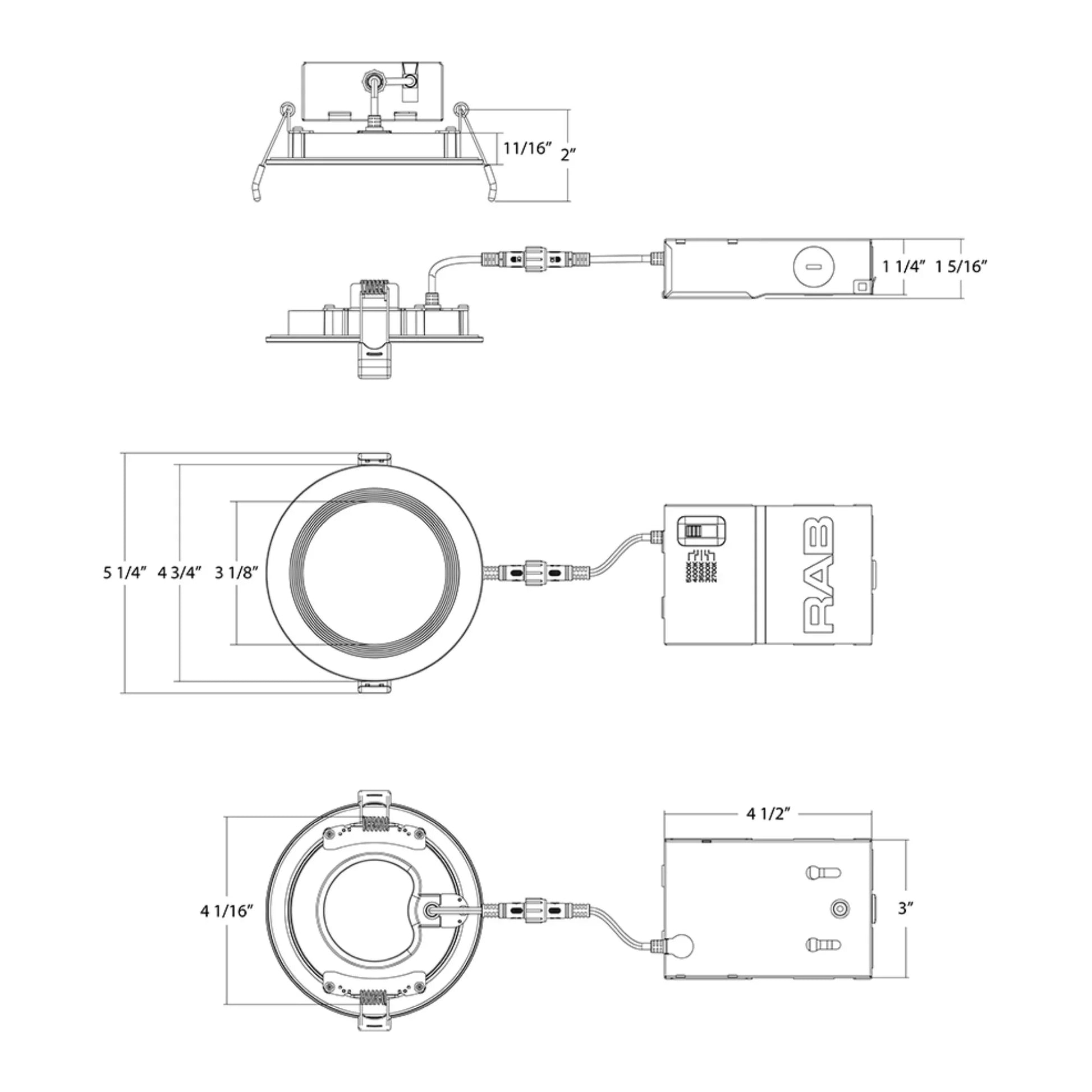

• Size: 4"
• Shape: Round
• Finish: Black
• Enclosure Material: Metal+Plastic

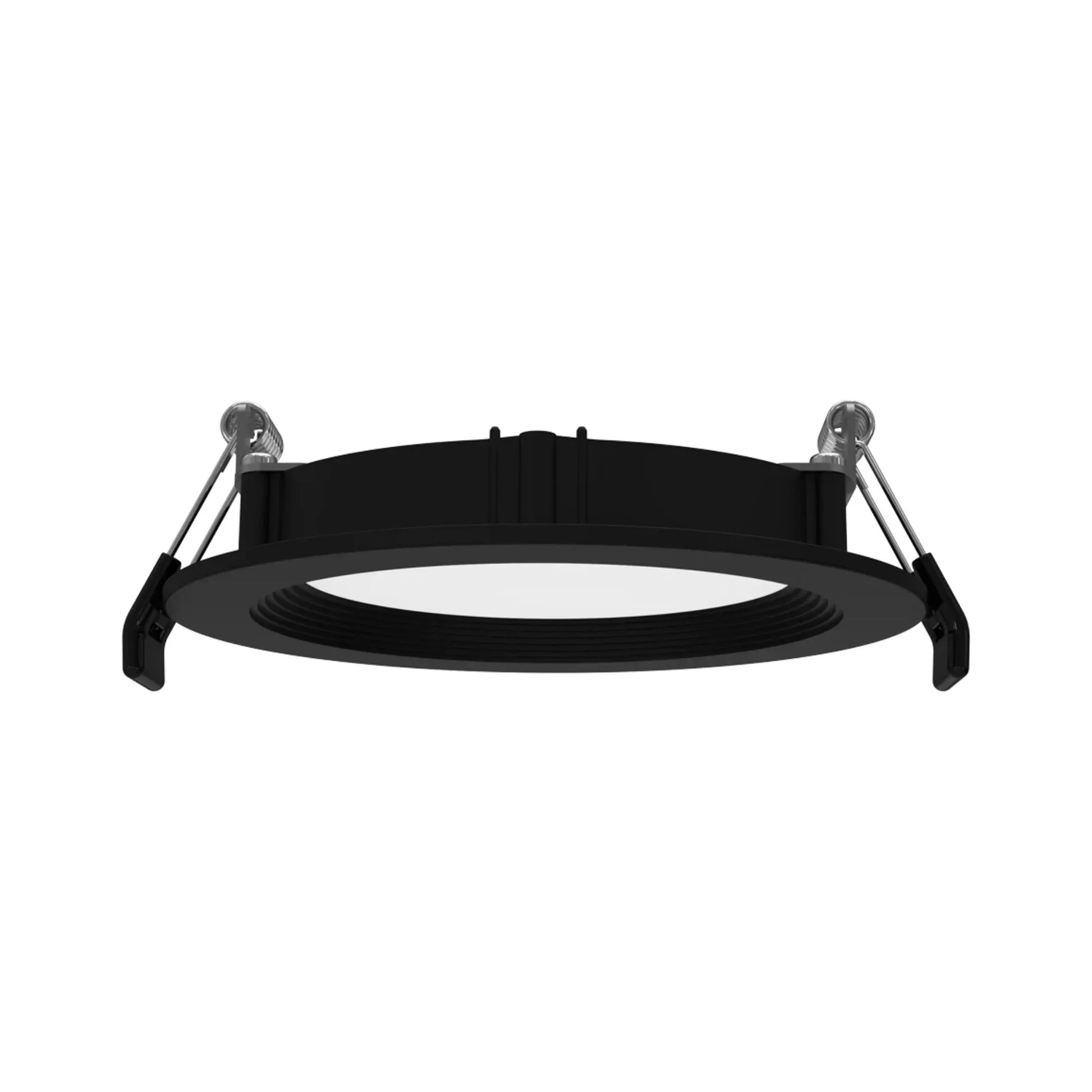

• Trim Style: Baffle
• Lens Finish: Frosted
• Lens: Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
• Listings: UL Listed
• Environment: Suitable for use indoors and outdoors in dry, damp, or wet environments.
• IC Rated: Suitable for direct contact with insulation. Type IC inherently protected.
• Air Tight: Housing certified Air Tight as per ASTM-E283
• Energy Star Approved: This product is ENERGY STAR® Certified.
• DLC Listed: This product family is listed with the DesignLights Consortium (DLC).
• Certification Model Number: DLW0129(WFRL4R99FA120WBB)
• California Title 20 Compliant: Can be used to conform with the requirements of California Title 20
• California Title 24 JA8 Compliant: Can be used to conform with the requirements of California Title 24 Part 6.
• California Energy Commission (CEC) Status: Lawful for Sales in California
• NEC Compliant: Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
