Description

Product Description

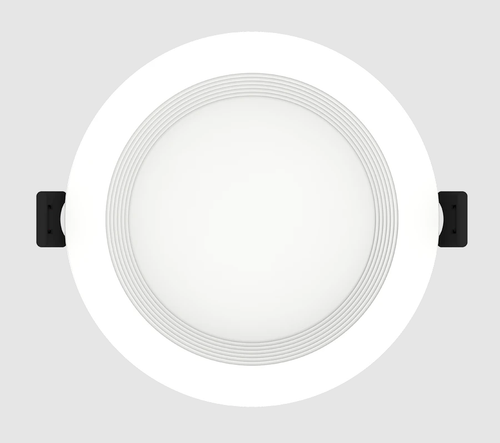

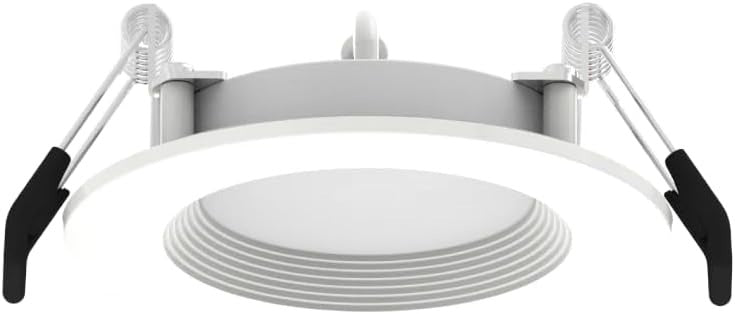

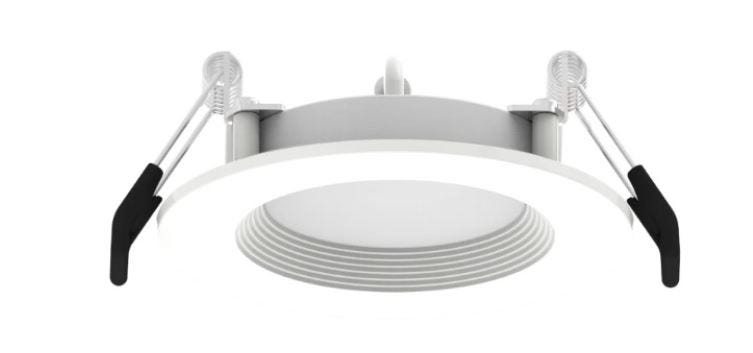

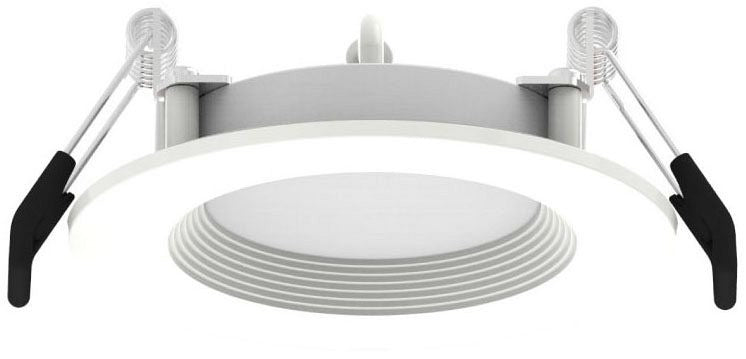

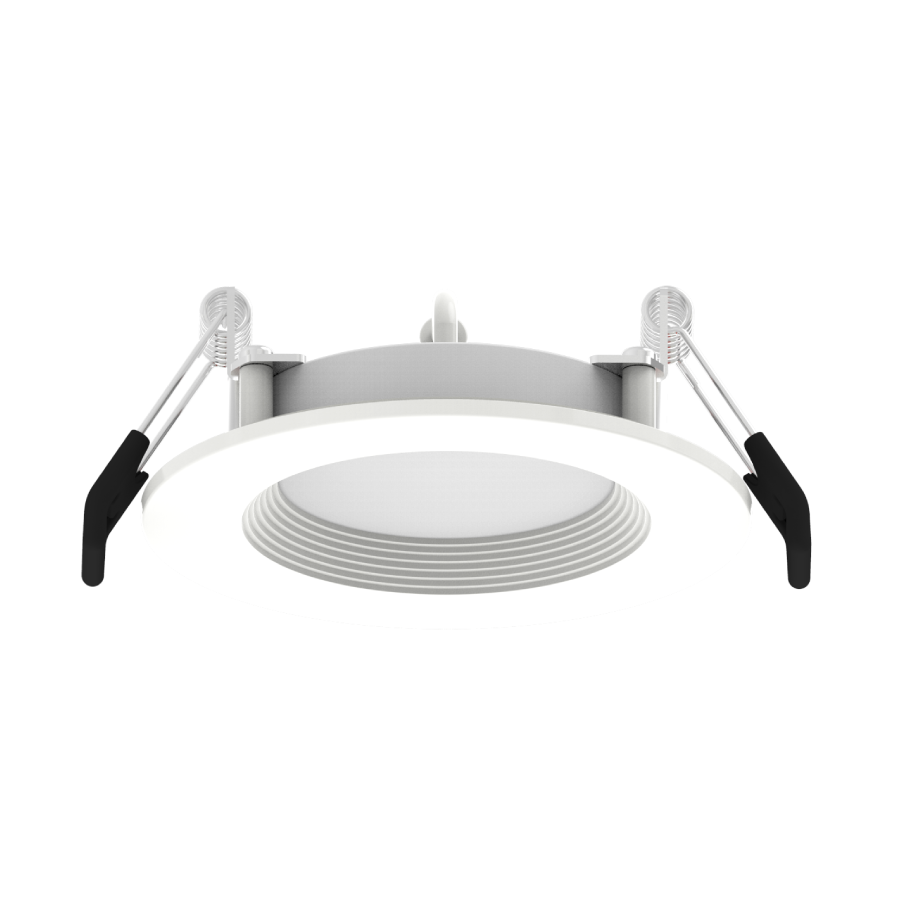

RAB WFRL3R69CCT120WB is a 3-inch round edge-lit wafer LED downlight rated 6W and approximately 500 lumens nominal. The fixture offers a field-adjustable 5CCT selector (2700K–5000K), 90+ CRI, and TRIAC/ELV dimming to 10% on compatible dimmers. It is a canless, ultra-slim design with a remote prewired driver box, IC and airtight rating, UL wet location listing, die-cast aluminum construction, and a frosted polycarbonate diffuser.

  • Field-adjustable 5CCT: 2700K, 3000K, 3500K, 4000K, 5000K with 90+ CRI
  • 6W LED output, ~500 lm nominal, dimmable to 10% on compatible TRIAC/ELV dimmers
  • Canless wafer design; IC rated, airtight certified and UL wet location listed

Product Highlights

3" edge-lit wafer downlight, 6W, 500 lm nominal, selectable CCT (2700K–5000K), 90+ CRI, dimmable, IC and airtight rated, UL wet location listed

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: WFRL3R69CCT120WB
  • Country of Origin: Cambodia
Technical Specifications
Brand
RAB
Manufacturer Part Number
WFRL3R69CCT120WB
Model
WFRL3R69CCT120WB
Product Type
3 in round edge-lit wafer downlight
Wattage
6W
Input Voltage
120V
Input Current
0.05 A @ 120V
Lumens (Nominal)
500 lm
Color Temperature
Field adjustable: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index (CRI)
90+
Beam Angle
110°
Efficacy
83 lm/W (varies by CCT)
Driver
Constant current, Class 2 (remote prewired driver box)
Dimmable
Yes, down to 10% on compatible TRIAC/ELV dimmers
L70 Lifespan
50,000 hours
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Construction
Die-cast aluminum housing
Lens
Frosted polycarbonate diffuser
Mounting/Installation
Canless wafer design with remote prewired junction/driver box; no recessed housing or junction box required
IC Rated
Yes
Air Tight
Certified air tight per ASTM E283
Wet Location Rating
UL wet location listed
Listings
UL Listed; ENERGY STAR Certified (ID 3555565); FCC Part 15; RoHS
DLC Listed
No
Certification Model Number
DLW0084(WFRL3R69CCT120WB)
California Title 20/24
Compliant
Trade Agreements Act
Product of Cambodia (TAA compliant)
Weight
0.77 lb
Package Quantity
1
Dimensions
Diameter: 3.63 in; Height: 0.69 in
Applications
Suitable for new construction or retrofit
