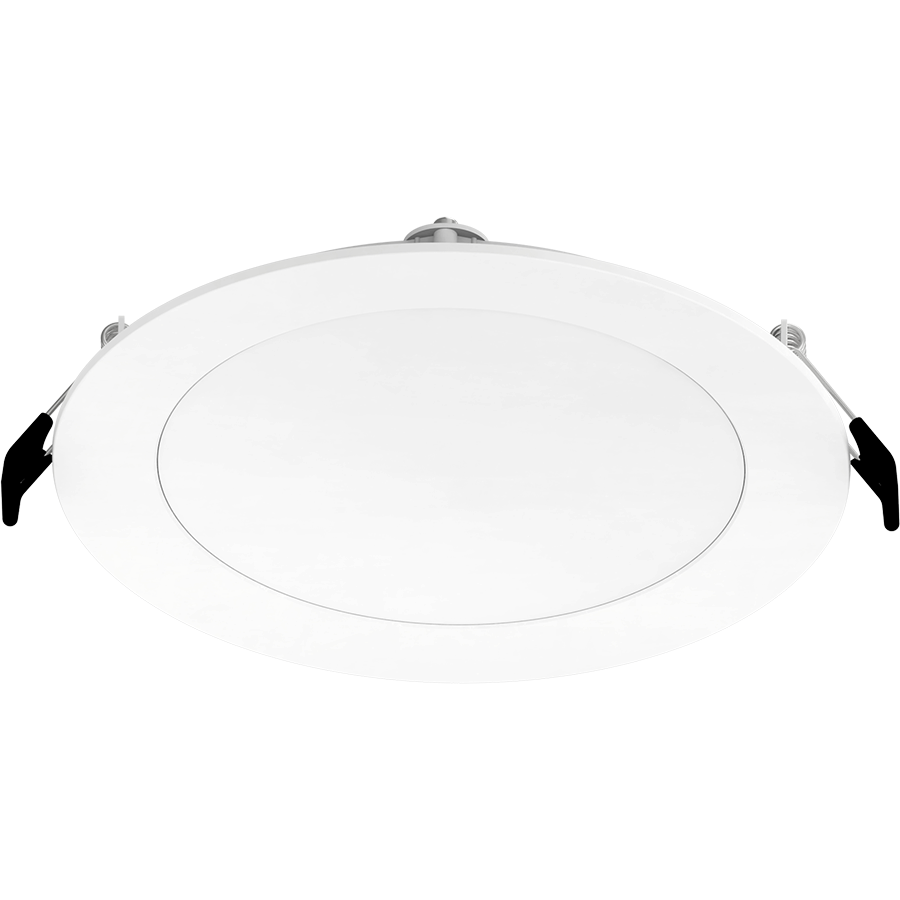

RAB WFR6/RGB is a 13W 6-inch edge-lit RGBW wafer downlight that delivers 1,100 lumens and 90+ CRI with tunable white (2200Kâ6500K) and 16+ million RGB colors. The fixture connects directly via Lightcloud Bluetooth mesh for app control without a gateway, supports SmartShift circadian lighting, and is IC rated for direct contact with insulation. It is ENERGY STAR certified with a 50,000-hour L70 LED lifespan.
13W edge-lit wafer provides 1,100 lumens, >=90 CRI, R9 >=50, tunable white 2200Kâ6500K plus RGB color mixing
Direct Lightcloud Bluetooth Mesh connectivity for app control, dimming, schedules, scenes, and SmartShift (no gateway required)
IC rated for direct insulation contact, wet-location suitable, ENERGY STAR Version 2.2 certified, UL listed, 50,000-hour L70
Product Highlights
13W 6" RGBW edge-lit wafer, 1,100 lm, Lightcloud Bluetooth Mesh control, tunable white 2200Kâ6500K, IC rated, ENERGY STAR, 50,000-hour L70
Product Information
Standard Information
Brand: RAB
Manufacturer Part Number: WFR6/RGB
Country of Origin: Cambodia
Technical Specifications
Brand
RAB
Manufacturer Part Number
WFR6/RGB
Product Type
Edge-Lit Wafer / Recessed Downlight
Size
6" (nominal diameter)
Wattage
13W
Lumens
1,100 lm
Efficacy
65 lm/W
Color Temperature
Tunable White 2200K - 6500K
Color Capability
RGBW (16+ million colors)
Color Accuracy (CRI)
>=90
R9 Value
>=50
Beam Angle
110°
Driver
Constant Current, Class 2
Input Voltage
120V
Current
0.12 A (120V)
Dimmable
Yes, via Lightcloud Blue mobile app and compatible Lightcloud devices (not standard incandescent dimmers)
Lightcloud Communication
Bluetooth Mesh (Lightcloud Blue)
Gateway Required
No
SmartShift
Supported
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
<=30%
L70 Lifespan
50,000 hours (based on IES LM-70)
Listings / Certifications
UL listed; ENERGY STAR Version 2.2 Certified (ID 3627043); FCC and RoHS compliance noted
DLC Listed
No
Environment / Ratings
Suitable for dry, damp, and wet locations
IC Rated
Yes (suitable for direct contact with insulation; not for spray foam contact)
