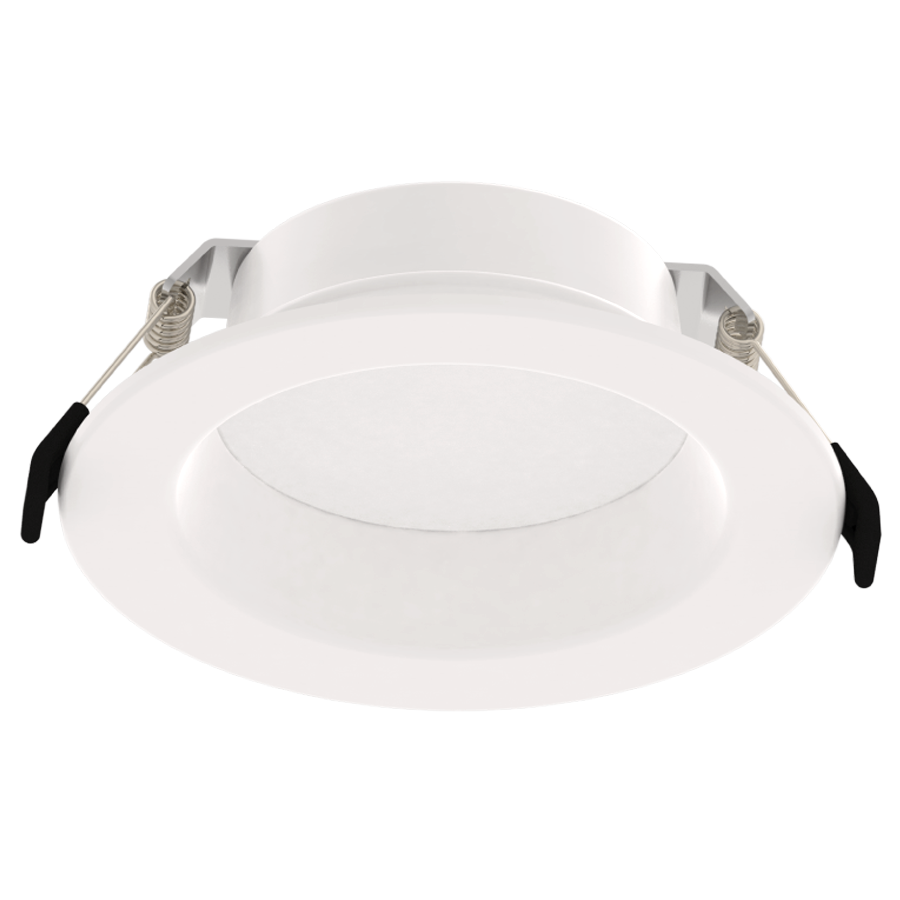

Rab WFD4 4 inches Deep Regress LED Wafer Downlight 13W

Product Description

The RAB WFD4 4" Deep Regress LED Wafer Downlight delivers recessed lighting for residential and commercial applications. Field-adjustable color temperature selection eliminates the need for multiple SKUs. The 4" smooth trim design provides direct installation without requiring recessed housing or J-boxes. The 13W LED is equivalent to 100W incandescent.

• Field-selectable CCT: adjust between 2700K/3000K/3500K/4000K/5000K via dip switch
• Maximum output of up to 1,331 lumens with 90+ CRI and efficacy up to 113 lm/W
• Dimmable down to 10% on compatible TRIAC/ELV systems

Product Highlights

This 4" LED wafer downlight features field-adjustable color temperature, 1,331 max lumens, and is dimmable. Suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: WFD4
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: WFD4
• Buy Line: RAB
• UPC: 192552029230
• Lumens: 1,200 Lumens
• Wattage: 13 Watts
• Input Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Downlight Diameter: 4"
• Downlight Type: Deep Regressed, Thin / Wafer
• Rated Hours: 50,000 Hours
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated

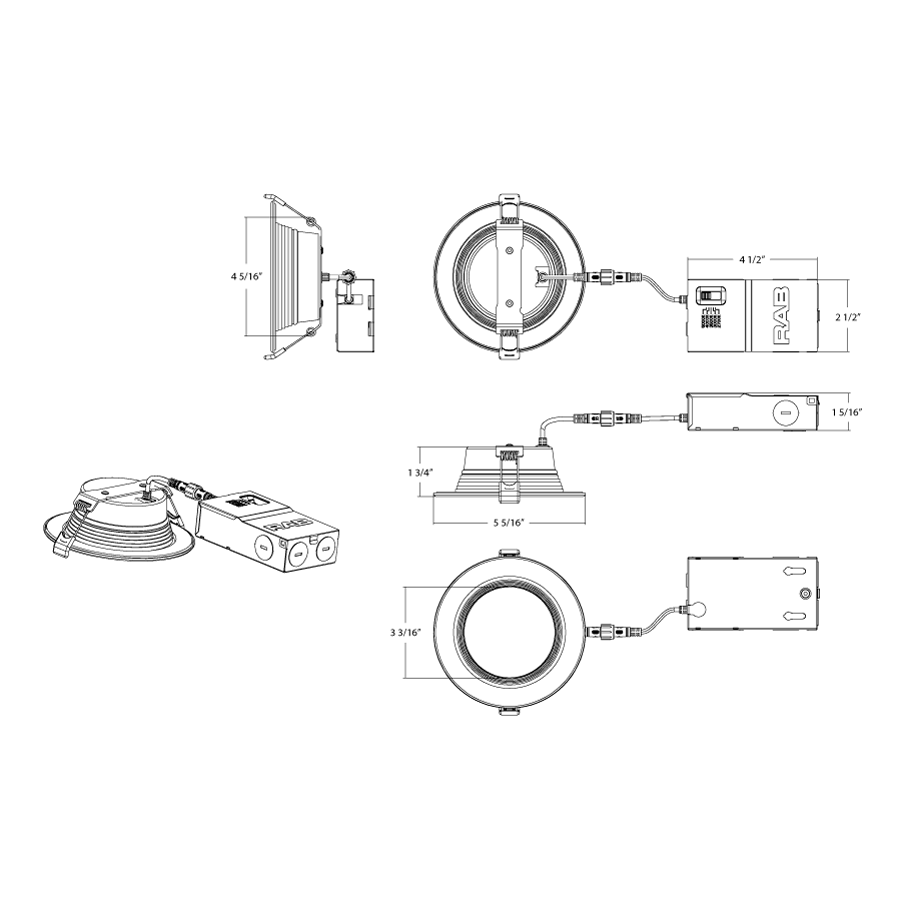

• Diameter: 5 5/16"
• Height: 1 3/4”
• Product Type: Deep Regress Wafer
• Lumen: 1213-1331
• Color Temp.: Field Adjustable
• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• Housing Material: Plastic Housing
• Finish: White
• Style: Smooth | Baffle
• Compliance Safety Listing: Suitable for wet locations
• IC Rated: Suitable for direct contact with insulation
• ENERGY STAR V2.2 ID: 2508117
• Air Tight: Yes
• THD: ≤20%
• Power Factor: ≥0.9
• Operating Temperature: -30°C to 40°C
• Dimming: TRIAC and ELV dimming compatibility
• Note: All values are typical (tolerance +/- 10%)
• Voltage: 120V
• Amperage: 0.12A
• Driver: Constant Current
• Efficacy: 92
• Input Wattage: 13
• Lamp Info: LED
• Length: 5.31
• Watts: 13
• Width: 3.74
