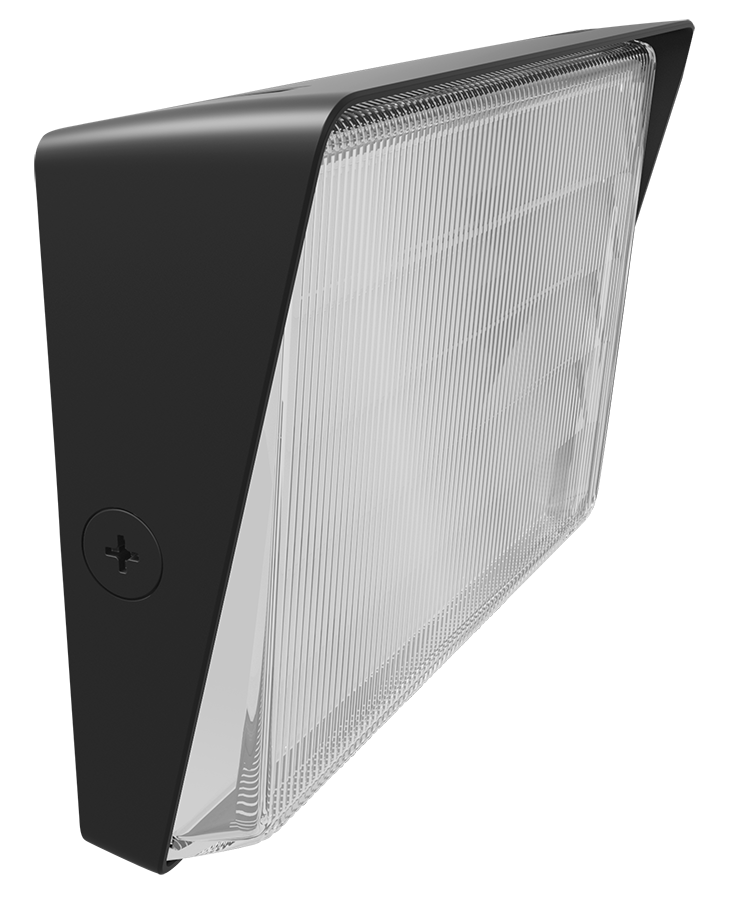

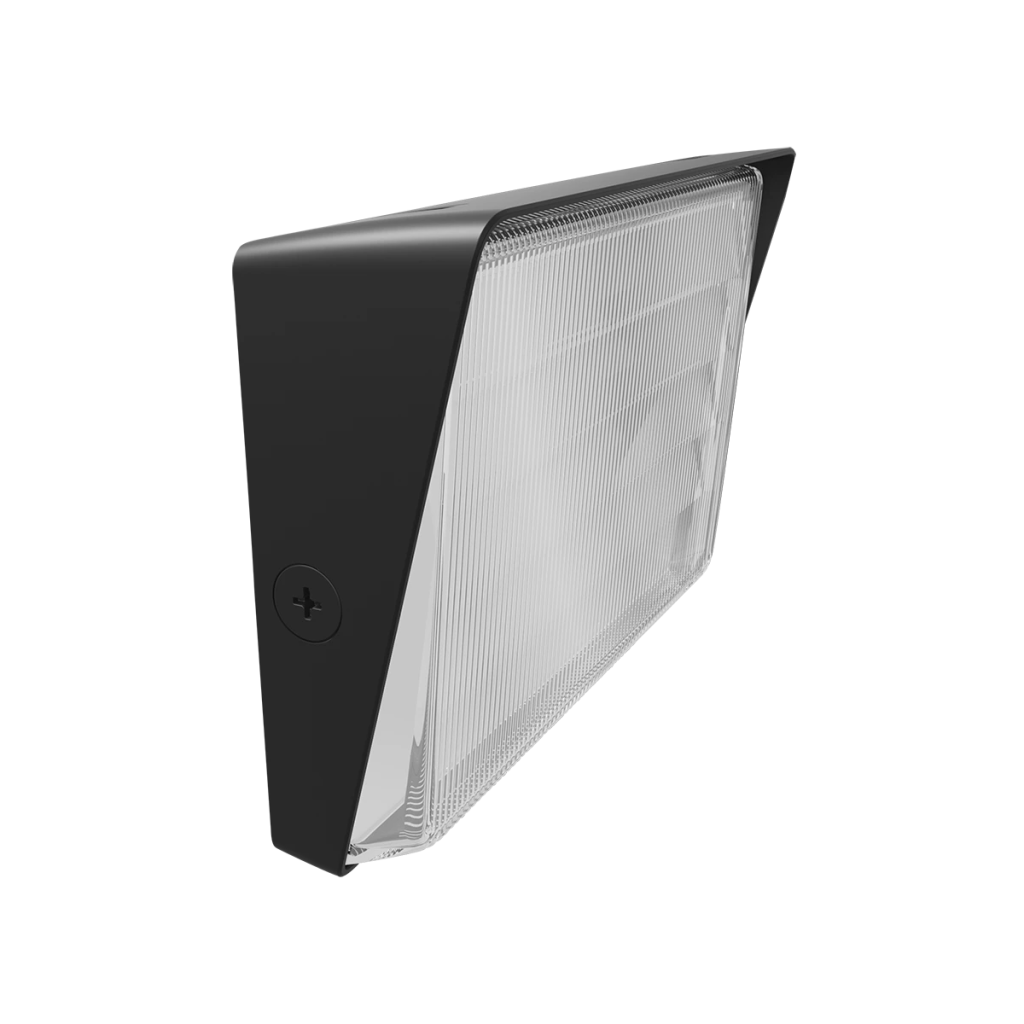

Rab W34M Field-adjustable Slim LED Wall Pack 80/60/40W 120-277V

Product Description

RAB W34M is a field-adjustable slim LED wall pack designed for exterior lighting applications. This versatile fixture offers selectable wattages of 80W, 60W, or 40W and field-adjustable color temperatures of 3000K, 4000K, or 5000K. Operating on 120-277V, it provides 6,174-12,495 lumens and features 0-10V dimming. Ideal for wet locations, it ensures efficient and adaptable illumination for various outdoor environments.

• Field-adjustable wattage (80W, 60W, 40W) and color temperature (3000K, 4000K, 5000K).
• Features 0-10V dimming and an integrated photocell for enhanced control.
• Suitable for wet locations, ensuring durability in outdoor environments.

Product Highlights

This LED wall pack offers 3-way field adjustability for wattage and CCT, 0-10V dimming, and is wet location rated.

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: W34M
• Country of Origin: Cambodia

Technical Specifications

• Brand: RAB LIGHTING
• MPN: W34M
• Wattage: 40/60/80W (Field-Adjustable)
• Input Voltage: 120-277V
• Color Temperature: 3000K/4000K/5000K (Field-Adjustable)
• Lumens: 6,174-12,495
• CRI: 75-77
• Dimming: 0-10V (dims to 10%)
• Lifespan: 100,000 Hours (L70, IESLM-80, TM-21)
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 104°F (40°C)
• Finish: Bronze
• Photocell: Integrated (on/off switch)
• Certifications: UL Listed, TAA Compliant, DLC Listed, DLC Premium
• Wet Location Rating: Suitable for wet locations
• Efficacy: 127.6-157.5 lm/W
• Driver Type: Constant Current, Class 2
• Current (120V): 0.67A/0.50A/0.34A
• Current (208V): 0.40A/0.30A/0.20A
• Current (240V): 0.34A/0.25A/0.17A
• Current (277V): 0.30A/0.22A/0.15A
• Input Power: 41.6-89.7W
• Frequency: 50/60Hz
• THD: 2.97% (120V), 5.18% (277V)
• Power Factor: 99.6% (120V), 94.8% (277V)
• Wattage Equivalency (80W): Up to 400W MH or 250W HPS
• Wattage Equivalency (60W): Up to 250W MH or 200W HPS
• Wattage Equivalency (40W): Up to 200W MH or 150W HPS
• Housing Material: Die-cast aluminum

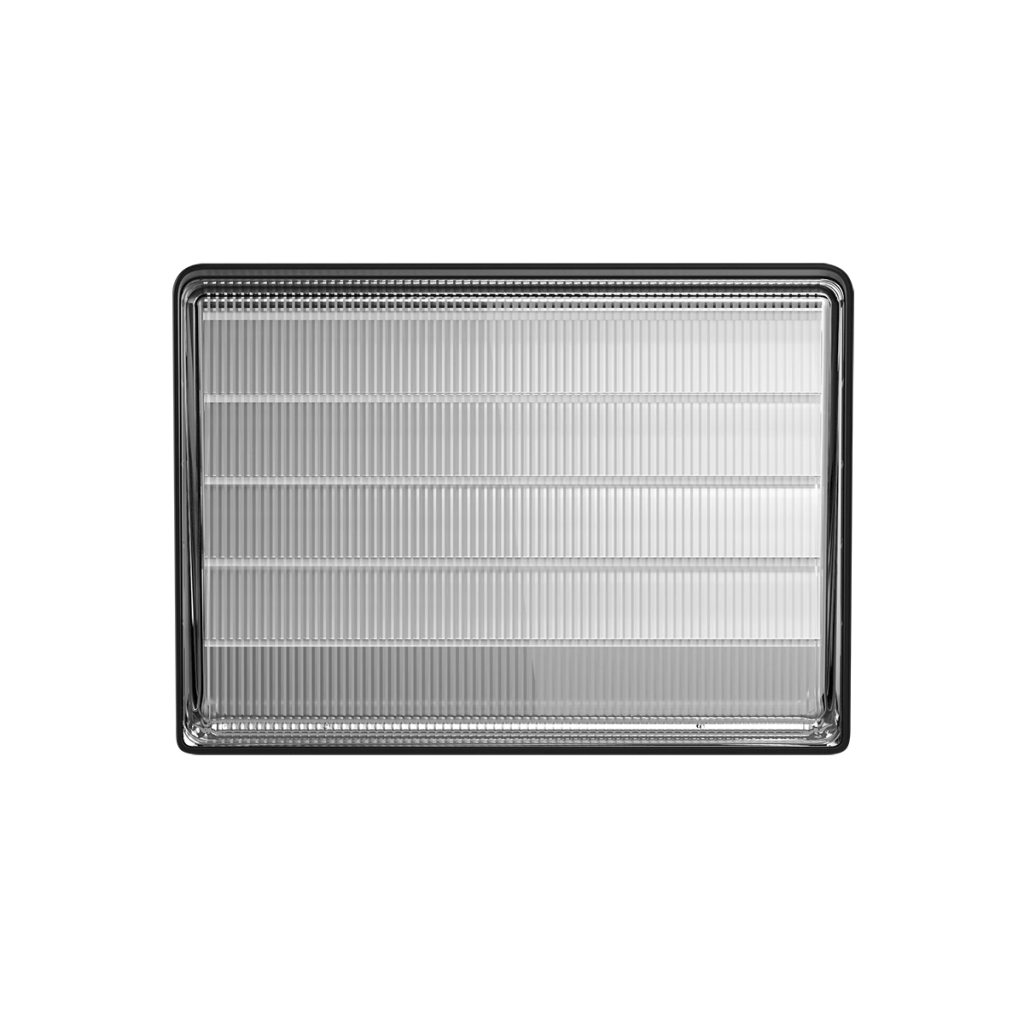

• Lens Material: Glass
• Reflector Material: Specular aluminum
• Green Technology: Mercury and UV free, RoHS-compliant
• Mounting: Die-cast backbox (4 conduit entry points, junction box/direct wall mounting, hinged door)
• BUG Rating (80W): B1 U3 G5
• BUG Rating (60W): B1 U3 G4
• BUG Rating (40W): B1 U3 G3
