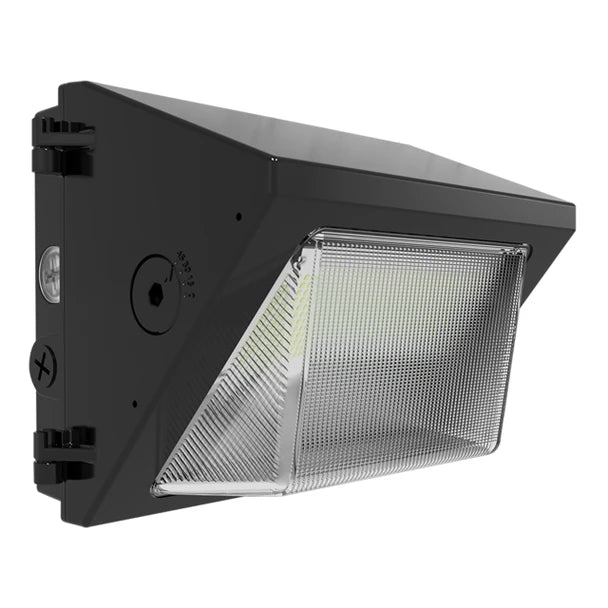

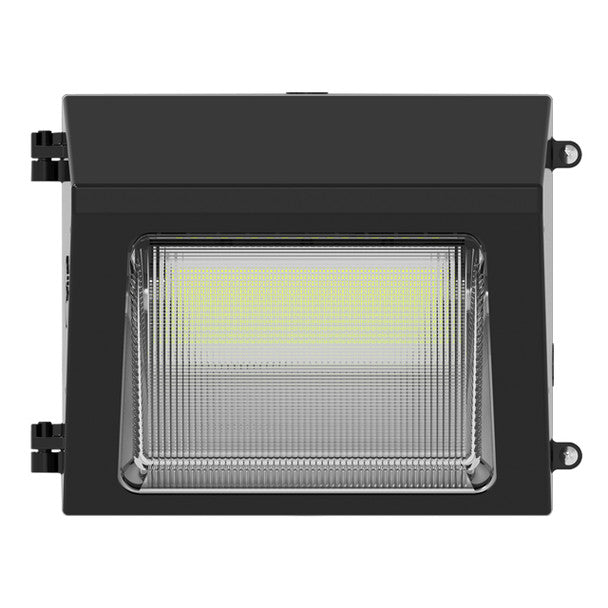

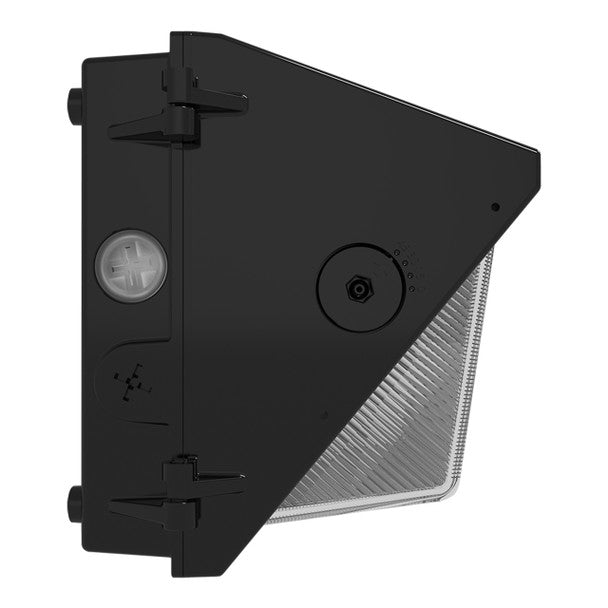

Rab W22-S-30 LED Wall Pack Adjustable Throw 30W

Product Description

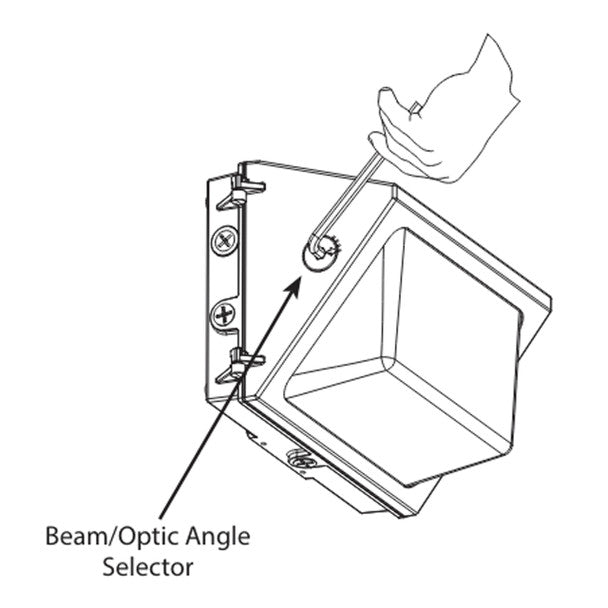

The RAB W22-S-30 family of wall packs stands out for its adjustable throw pattern, offering enhanced control over lighting distribution. This feature enables precise illumination, making it suitable for a variety of outdoor applications, including perimeter and security lighting. The W22 wall packs are designed with efficiency and durability in mind.

• Four selectable wattages: 35/25/20/15W
• Three selectable CCTs: 3000K, 4000K, 5000K
• Integrated photocell included with on/off switch

Product Highlights

Ideal for commercial and industrial settings, these wall packs combine robust performance with customizable lighting to meet diverse exterior lighting needs.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: W22-S-30

Technical Specifications

• Brand: RAB
• Manufacturer Part Number: W22-S-30
• UPC: 192552034609
• Lumens: 4,508 Lumens
• Wattage: 30 Watts
• Input Voltage: 120-277V
• Dimmable: 0-10V
• Color Temperature: 3000K, 4000K, 5000K
• Rated Hours: 100,000 Hours
• Beam Angle: Adjustable Optics
• Min Operating Temp: -40 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Photocell Installed, Wattage Selectable, Wet Location Rated
• Manufacturer: RAB Lighting
• Brand / Product Series: RAB
• Model: W22-S-30/480
• Metal Halide Equivalent: 70-125 Watt
• Efficacy: 114-139 lumens / Watt
• Life Rating: 100,000 Hours
• Light Distribution: Traditional Adjustable Cutoff
• Voltage: 277.0 volts_of_alternating_current
• Frequency: 50/60 Hz
• Power Factor: N/A
• THD: N/A
• Surge Protection: L-N /L&N-PE:2+4KV
• Operating Temperature: -40 00b0F to 104 00b0F
• Photocontrol: Integrated, On / Off.
• Housing Material: Aluminum
• Finish: Bronze
• Lens Material: Glass
• IP Rating: IP65
• Location Rating: Wet
• UL: Yes
• ETL: No
• RoHS: Yes
• Energy Star: No
• FCC: Yes
• DLC: Yes
• DLC ID: S-55M4Q1
• Dark Sky: No
• Control Method: Remote
• Controller Type: Remote Control
• Switch Type: Photocell
• Efficiency: Highly Efficient
• Mounting Type: Wall Mount
• Water resistance level: water_resistant
• Shade color: Clear
• Fixture type: Wallpack
• Installation Type: Wall Mount
• Light color: White
• Room type: Outdoor
• Included components: Fixture
• Indoor outdoor usage: outdoor
• Number of light sources: 1
• Power source type: AC
• Special feature: Dimmable
• Specific uses for product: Outdoor
• Style: Modern
• Required Assembly: No
• Unit Count: 1.0 Count
